1mm Thickness 300Mesh Porous Stainless Steel Discs Food Grade
1mm Thickness 300Mesh Porous Stainless Steel Discs Food Grade
1mm Thickness 300Mesh Porous Stainless Steel Discs Food Grade
1mm Thickness 300Mesh Porous Stainless Steel Discs Food Grade
Specifications
Brand Name :
STD
Model Number :
STD-D
Certification :
API, ISO, CE, QMS, IAF, IADC
Place of Origin :
HeBei，China
MOQ :
1
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per day
Delivery Time :
15-20word days
Packaging Details :
1. The filter disc will be packed by opp bags or films 2. Then in carton or wooden box
Product name :
Food grade metal filter disc
Technique :
Woven Sintered Perforated
Application :
A filter, medical, centrifuge, filter
Mesh count :
2-300Mesh
Length :
5mm-600mm
Filter Rating :
50-95%
Material :
Stainless steel
Usage :
Hemming filter screen
Shape :
Ring shape stainless steel wire mesh filter disc
Weave style :
Plain Weave
Feature :
Acid resistant, alkali resistant, high temperature resistant
Width :
5mm-600mm
Thickness :
1mm
Type :
Filter Disc
Description

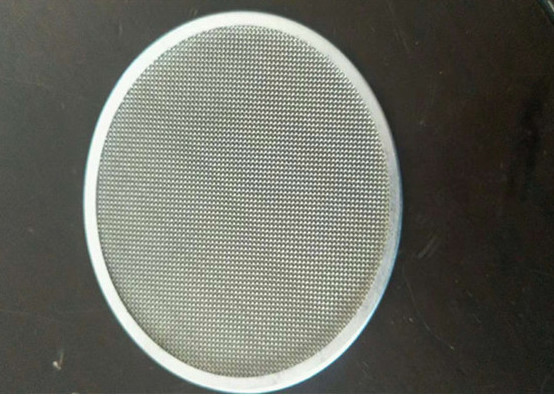

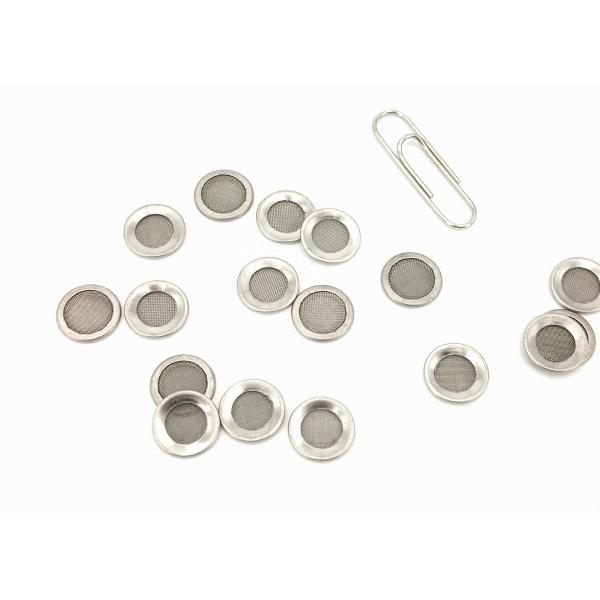

Food Grade Stainless Steel Wire Mesh Filter Cloth Mesh Metal Filter Disc

Steel filter disc, also called stainless steel mesh metal filter, is a metal filter disc. We divide the manufacturing process into three technologies. Initially, we chose high-quality stainless steel wire.
The metal filter disc will be woven or perforated. Then, according to the special requirements of customers, we will choose different materials for edging. More importantly, in the manufacturing process, we can provide stainless steel filter discs of different sizes, different shapes and different weaving methods, all of which can be produced according to your specific requirements. The stainless steel filter disc has excellent resistance to acid and alkali and can be used under very harsh conditions. Especially suitable for acid gas filtration.

Wire materials SUS302, SUS304, SUS304L, SUS310S, SUS316, SUS316L, SUS321, etc.
Wire diameters 0.01 mm - 5 mm.
Disc diameters 5 mm - 600 mm (custom size: 8 mm - 3800 mm).
Weaving methods

plain weave, twill weave, dutch weave, etc.
Layer single layer or multiple layers.
Filter disc shapes round, rectangular, square, crescent and semicircle, etc.
Marginal materials copper, aluminum, stainless steel, rubber, etc.
Filtration precision 0.2 µm - 100 µm.
Features:

  • Physical properties: high tensile force, high dirt holding capacity, high strength, high pressure resistance,

  • accurate filtration rating, abrasion resistance, good wear resistance, high temperature resistance.

  • Chemical properties: acid, alkali and corrosion resistance.

  • Process properties: uniform controlled porosity, long service life, precision punched burr-free,

  • compatible with most fluids, weldable, easy loading and unloading, cleanable and reusable, etc.

1mm Thickness 300Mesh Porous Stainless Steel Discs Food Grade

1mm Thickness 300Mesh Porous Stainless Steel Discs Food Grade

Applications:


Stainless steel filter discs with high acid and alkali resistance can be used in very hash conditions.

  • Water filtration: sewage water treatment and distribution, etc.

  • Gas filtration: aerospace hydraulic, high temperature gas, gas distribution system, etc.

  • Petroleum industry: oil sands separation, lubricating oil, hydraulic start oil filter, etc.

  • Metallurgy: acid cleaning mesh in electric plating industry, etc.

  • Other fields: high pressure filter medium, chemical industry, pharmacy, machinery, dust removal, fluidized, etc.

Specification:

Items

Mesh

Wire Diameter (mm)

Aperture (mm)

Material (AISI)

STD-D01

7 × 7

1.00

2.63

SUS304
SUS316

STD-D02

10 × 10

0.60

1.94

STD-D03

12 × 12

0.50

1.62

STD-D04

16 × 16

0.40

1.19

STD-D05

16 × 16

0.35

1.24

STD-D06

18 × 18

0.35

1.06

STD-D07

20 × 20

0.40

0.87

STD-D08

24 × 24

0.26

0.80

STD-D09

30 × 30

0.30

0.55

STD-D10

35 × 35

0.17

0.56

STD-D11

40 × 40

0.23

0.40

STD-D12

50 × 50

0.20

0.31

STD-D13

60 × 60

0.15

0.27

STD-D14

70 × 70

0.12

0.24

STD-D15

80 × 80

0.13

0.19

STD-D16

90 × 90

0.12

0.16

STD-D17

100 × 100

0.10

0.15

STD-D18

120 × 120

0.09

0.12

STD-D19

150 × 150

0.063

0.11

STD-D20

180 × 180

0.053

0.09

STD-D21

200 × 200

0.053

0.07
1mm Thickness 300Mesh Porous Stainless Steel Discs Food Grade
The Package:
1mm Thickness 300Mesh Porous Stainless Steel Discs Food Grade
The Delivery
1mm Thickness 300Mesh Porous Stainless Steel Discs Food Grade
