SGS Certified 90% 2.5um Stainless Steel Filter Disc For Particle Removal
SGS Certified 90% 2.5um Stainless Steel Filter Disc For Particle Removal
SGS Certified 90% 2.5um Stainless Steel Filter Disc For Particle Removal
SGS Certified 90% 2.5um Stainless Steel Filter Disc For Particle Removal
Specifications
Brand Name :
STD
Model Number :
STD-S
Certification :
FDA ,CE，PICC,SGS,ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
10000 pieces per day
Delivery Time :
5-10 work days
Packaging Details :
Standard export packing in carton or wooden box, or as your specific requirement.
Name :
Sintered porous metal filter disc
Filter Rating :
90%
Usage :
Liquid Filter，Air filtration
Material :
Stainless steel 304
Technical :
Sintered
Color :
Silver，golden
Type :
Filter Disc
Hole Shape :
Round
Thickness :
Customer request
Width :
Customer request
Application :
Gas liquid filtration
Technique :
Sintering
Packing :
Carton or wooden
Length :
Customer request
shape :
round, tetragonum , customized
Description

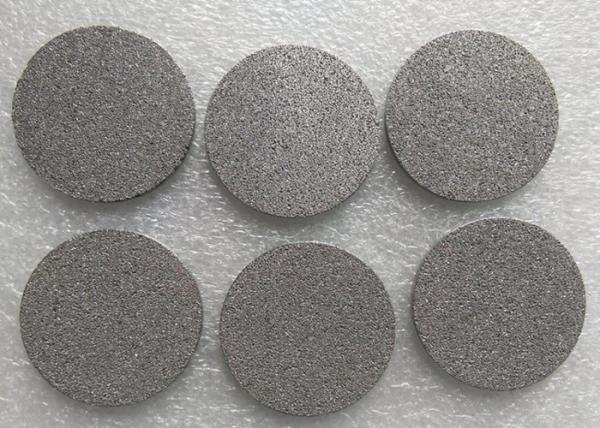

Particle Removal And Flow Control Of Sintered Porous Metal Filter Disc
Metal powder filter disc

The sintered filter is made of stainless steel wire--304,316, through the sub-screen, forming, sintering to micro-filter components. According to user requirements can produce a variety of shapes, structure, different size, porosity of porous components, such as: hood, cap, sheet, tube, rod-like filter element.

Specifications:

1.Diameter: OD5mm-300mm (or as your request)

2.Thickness : 0.5mm-10mm (or as your request)

3.Filtering Rating : 0.5um-70um

Technical Data:

Filtering precision Porosity
Permeability
(m3/h.m2.kpa)
 Compressive strength

Max. differential Pressure

0.5um - 70um

 20-50% 3~1300 3 Mpa 0.6Mpa

Filteration Class

Filtering Rating

(um)

Pore Size Max.

(um)

Permeability

10-12m²

Breathability

m3/h.m2.KPa

Thickness

(mm)

Compression

Strength

MPa/ cm²
S9 0.2 2.5 1 3 3.0
S8 0.5 4 3 3 3.0
S7 1.0 6 5 3 3.0
S6 2.5 10 0.09 10 3 3.0
S5 5 15 0.23 40 3 3.0
8 20 0.91 80 3 3.0
S4 10 30 1.81 160 3 3.0
S3 30 60 3.82 350 3 3.0
35 80 7.29 500 3 3.0
S2 40 100 9.43 700 3 3.0
S1 65 160 15.1 1000 3 3.0

The application:

Filter disc sintered get used for the filtration of corrosive liquids. The filter discs also get used for catalyst recovery. Plus, the filter disc can get utilized for steam processing also. Secondly, the disc filter has usage in different types of industries.

  • Aviation industry
  • Chemical industry
  • Petrochemical industry
  • Environmental area
  • Automotive industry
  • Plastic industry
  • Food and Beverage industry

SGS Certified 90% 2.5um Stainless Steel Filter Disc For Particle RemovalSGS Certified 90% 2.5um Stainless Steel Filter Disc For Particle RemovalSGS Certified 90% 2.5um Stainless Steel Filter Disc For Particle RemovalSGS Certified 90% 2.5um Stainless Steel Filter Disc For Particle Removal
