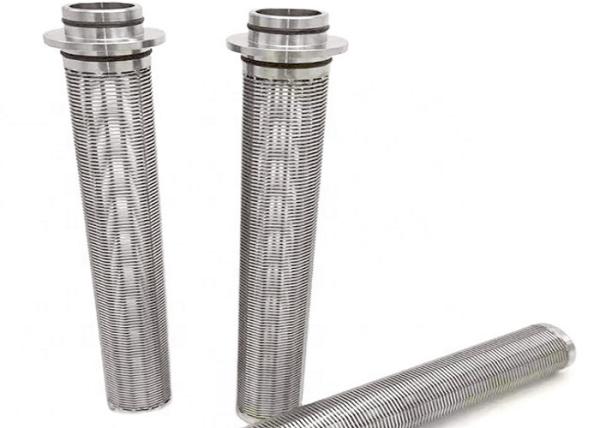

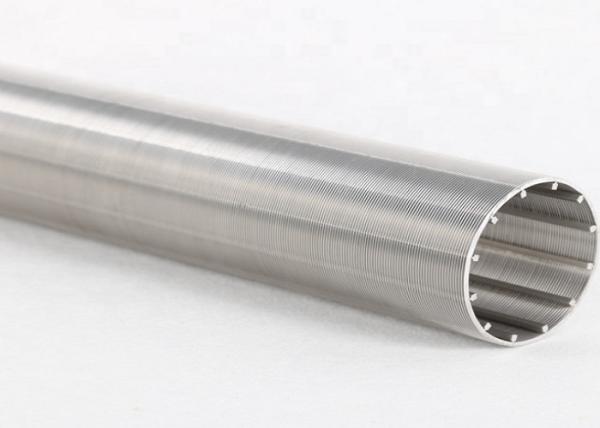

High Rigidity 4 Inch 117mm Dia Wedge Wire Strainer , Wedge Wire Filter Pipe
High Rigidity 4 Inch 117mm Dia Wedge Wire Strainer , Wedge Wire Filter Pipe
High Rigidity 4 Inch 117mm Dia Wedge Wire Strainer , Wedge Wire Filter Pipe
High Rigidity 4 Inch 117mm Dia Wedge Wire Strainer , Wedge Wire Filter Pipe
Specifications
Brand Name :
STD Filter
Model Number :
STD WWS 106
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
shape :
square or round or material curved
Length :
2 meters or as required
Width :
1 meter or customized
Diameter :
1 meter or customized
Application :
Water well,oil well,air separation
Usage :
liquid and solid filtration
Type :
Filter
Filter rating :
99%
Technique :
Welding
Feature :
Corrosion Resistance,high rigidity
Slot size :
0.1-6.0 mm,customized to 0.02 mm
Material :
Stainless Steel 304 or 316
Description

Stainless Steel 304 And 316 High Rigidity Wedge Wire Strainer For Water/Solid Or Air/Solid Separation

The Wedge wire strainer is known as wedge wire screen,wedge wire filter,etc.It includes the wedge wire and support rods,The wedge wire and the support rods are welded together.The structure of the strainer is four kind:

1.Wedge wire is one piece and ouside,rods are some and inside

2.Wedge wire is one piece and inside,rods are some and outside.

3.Wedge wires are some and outside,the rod is one piece an inside.

4Wedge wires are some and inside,the rod is one piece an outside.

The rod has two kind profiles:Wedge and circular.

SIZE
(INCH)		 O.D
(MM)		 SLOT
(INCH)		 LENGTH
(M)		 COLLAPSE
STRENGTH
(PSI)		 TENSILE
WEIGHT
(TON)		 WRAP(thick*deep)
(MM)		 RODS
(MM)
4 117 0.040 3 395 6 2.2*3.0 3.8MM/22
4 114.3 0.040 3 395 6 2.3*3.0 3.8MM/22
6 168.3 0.040 3 252 8 2.3*3.5 3.8MM/32
8 219.1 0.010 3 399 10.5 3.0*5.0 3.8MM/48
8 219.1 0.020 3 370 10.5 3.0*5.0 3.8MM/48
8 219.1 0.040 3 323 10.5 3.0*5.0 3.8MM/48
10 273.1 0.010 3 206 11 3.0*5.0 3.8MM/50
10 273.1 0.020 3 191 11 3.0*5.0 3.8MM/50
10 273.1 0.040 3 167 11 3.0*5.0 3.8MM/50

The Benifits of V-shape Wedge Wire Filter

1. High rigidity,can stand very powerful pressure

2.Stainless Steel, can resistance the abrusion and corrosion

3.V-shape wire,can forbid to be blocked

4.Clean easily,save time and cost.

5.long work time

High Rigidity 4 Inch 117mm Dia Wedge Wire Strainer , Wedge Wire Filter Pipe

High Rigidity 4 Inch 117mm Dia Wedge Wire Strainer , Wedge Wire Filter Pipe

The Wedge wire filter is useful for your tasks in any of the following areas:

Ming, coal, oil, fertilizer, chemical, grain, salt, environmental protection and so on. Screening of liquid and powder

High Rigidity 4 Inch 117mm Dia Wedge Wire Strainer , Wedge Wire Filter Pipe

Wires and Rods Information

The most common wire

High Rigidity 4 Inch 117mm Dia Wedge Wire Strainer , Wedge Wire Filter Pipe

The most common support rod

High Rigidity 4 Inch 117mm Dia Wedge Wire Strainer , Wedge Wire Filter Pipe

The Package:Wooden box

High Rigidity 4 Inch 117mm Dia Wedge Wire Strainer , Wedge Wire Filter Pipe

The delivery

​High Rigidity 4 Inch 117mm Dia Wedge Wire Strainer , Wedge Wire Filter Pipe
