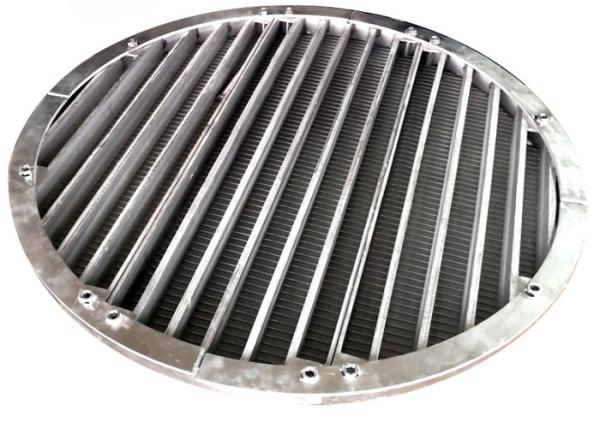

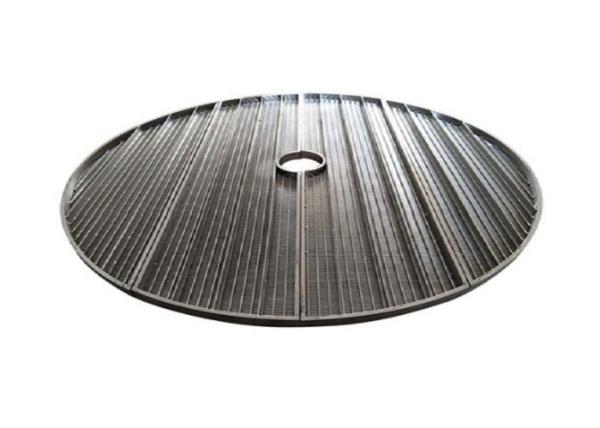

STD Filter Anti Corrosion 10 Inch Stainless Steel False Bottom For Distilling
STD Filter Anti Corrosion 10 Inch Stainless Steel False Bottom For Distilling
STD Filter Anti Corrosion 10 Inch Stainless Steel False Bottom For Distilling
STD Filter Anti Corrosion 10 Inch Stainless Steel False Bottom For Distilling
Specifications
Brand Name :
STD Filter
Model Number :
STD WWF 008
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
Material :
Stainless Steel316,304,AISI 304,316. SUS 304 or 316
shape :
square or round or material curved
Length :
2 meters or as required
Diameter :
1 meter or customized
Width :
1 meter or customized
Application :
Water well,oil well
Type :
Filter
Usage :
liquid and solid filtration
Filter rating :
99%
Technique :
Welding
Feature :
Corrosion Resistance
Slot size :
0.1-6.0 mm
Description

Safe Stainless Steel Good Resistance To Abrasion And Corrosion Wedge Wire False Bottom For Brewery And Distilling

Introduction

One of the main steps in the brewing process is lautering. In simple terms, its main job is to facilitate the filtering of the mash (crushed grains) from the wort (the fermented liquid). The process is performed in a vessel called a lauter tun.

Wedge wire false bottoms are manufactured in a unique way. The wires are V-shaped, with the wider end at the top, providing exceptional support for the mash bed. As the wire narrows toward the bottom (effectively providing a greater open area) it allows more wort to pass. During wedge wire manufacturing, parallel support rods are welded to the wire. This leaves only two contact points on the wire, which reduces clogging. Plus, the smooth, flat surface of the wire makes cleaning easy.

SIZE
(INCH)

O.D
(MM)

SLOT
(INCH)

LENGTH
(M)

COLLAPSE
STRENGTH
(PSI)

TENSILE
WEIGHT
(TON)

WRAP(thick*deep)
(MM)

RODS
(MM)

4

117

0.040

3

395

6

2.2*3.0

3.8MM/22

4

114.3

0.040

3

395

6

2.3*3.0

3.8MM/22

6

168.3

0.040

3

252

8

2.3*3.5

3.8MM/32

8

219.1

0.010

3

399

10.5

3.0*5.0

3.8MM/48

8

219.1

0.020

3

370

10.5

3.0*5.0

3.8MM/48

8

219.1

0.040

3

323

10.5

3.0*5.0

3.8MM/48

10

273.1

0.010

3

206

11

3.0*5.0

3.8MM/50

10

273.1

0.020

3

191

11

3.0*5.0

3.8MM/50

10

273.1

0.040

3

167

11

3.0*5.0

3.8MM/50

Simple options that come with Welded wedge wire elements / items :

• They can be non-blocking

• Personal-undefinedbacked and firm

• Lengthy lifestyle

• Dependable and steady purification ranking

• All metallic construction (non-metallic also feasible like PP

• An easy task to thoroughly clean smooth filtering area

The most common wire

STD Filter Anti Corrosion 10 Inch Stainless Steel False Bottom For Distilling

The most common support rod

STD Filter Anti Corrosion 10 Inch Stainless Steel False Bottom For Distilling

The Benifits of V-shape Wedge Wire Filter

There are multiple benefits of using a false bottom made from wedge wire. The benefits provide an excellent alternative to resolve the known issues that are inherent to other materials:

  • Higher open area with precise slot sizes, providing superior wort flow rates
  • Higher mechanical strength to support the grain better
  • Better efficiency to prevent grains from trapping or clogging holes
  • Improved lautering speed

STD Filter Anti Corrosion 10 Inch Stainless Steel False Bottom For Distilling

The diagram demonstrates why welded wedge cable factors are rigid and robust and thereby keeps extremely dependable port launching on a regular basis.

The details:

STD Filter Anti Corrosion 10 Inch Stainless Steel False Bottom For DistillingSTD Filter Anti Corrosion 10 Inch Stainless Steel False Bottom For Distilling

STD Filter Anti Corrosion 10 Inch Stainless Steel False Bottom For Distilling

The Package And the delivery

STD Filter Anti Corrosion 10 Inch Stainless Steel False Bottom For Distilling
