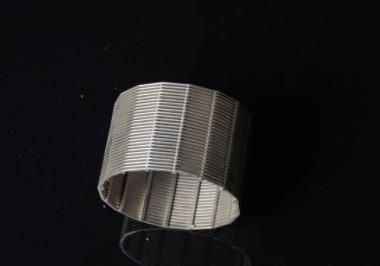

Resin Filter V Shaped Wedge Wire Screen Tube Steel 304
Resin Filter V Shaped Wedge Wire Screen Tube Steel 304
Resin Filter V Shaped Wedge Wire Screen Tube Steel 304
Resin Filter V Shaped Wedge Wire Screen Tube Steel 304
Specifications
Brand Name :
STD Filter
Model Number :
STD WWS 111
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
Material :
SS304,SS316,SS316L
Length :
2 meters or as required
Diameter :
1 meter or customized
Usage :
solid filtration
Filter rating :
99%
Application :
oil or chemical
shape :
square or round or Depends what you needs.
Type :
Filter
Technique :
Welding
Temperature :
Up to 300℃
Slot size :
0.1-6.0 mm
Color :
SS silver
Description

Stainless Steel Resistance To Corrosion Good Surface Wedge Wire Strainer For Petrochemical & Refining

The Introduction:

Wedge-shaped filter (also known as candle filter) includes internal flow and external flow. It is made up of "V" shaped or wedge-shaped stainless steel wire and stainless steel support strip. The smooth surface of the filter tube is the filter surface, and the gap is strip, which belongs to the surface filtration form.

When the resin is used for online water treatment, when the water pressure interference is large (especially high pressure interference) and the resin cylinder wall is damaged, the resin will enter the whole water system and affect the normal operation of other equipment in the system, so it is necessary to install the resin trap. Resin filter is mainly in the ion exchanger outlet equipped with resin equipment on the drainage pipe line installed with a much smaller aperture than the resin filter, with flushing function. As the resin passes through, it can be intercepted and captured by the filter. At the same time, it can automatically flush the captured resin out of the system by front and back differential pressure.

The Features:

  • Prevents costly ion exchange resin losses
  • Protect pumps and critical downstream equipment,
  • V-shaped steel wire structure is not easy to plug, easy to clean (better than braided mesh filter and sintered filter)
  • Large opening area, small pressure (large flow, reduce energy loss)
  • Wedge wire mesh special V wire structure.
  • Uniform clearance, no resin leakage, no material flow, pressure bearing branch pipe, no liner, diverse structures to meet the requirements of different containers

Material SS304, SS304L, SS316, SS316L, SS321, Duplex, etc
OD Range According to request and the actual flange and strengthen bar
Normal ID 176mm, 200mm, 230mm, 255mm. According to request
Normal Length 600mm, 602mm, According to request
Normal Slot 0.2mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm.
Slot Direction Radial Direction
Wedge Wire 0.75x1.5 1x2 2x3 2*4 3*5
Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

2x3

2x4

3x5

3x6

2x4

3x5

3x6

5x6

3x5

3x6

5x6
End Finishing Flange, , Metal Ring, etc
Note Customized According To Requirement

The Benifits of V-shape Wedge Wire Filter

1. Continuous slot:work more efficient

2.V-shape profile:More hard-wearing and high abrasion to bear the impact force

3.Precision slot:make your work more uniform

4.Wide side is surface:not easy to be block.

5.Long service time:Save your time and money.

Resin Filter V Shaped Wedge Wire Screen Tube Steel 304

The diagram demonstrates why welded wedge cable factors are rigid and robust and thereby keeps extremely dependable port launching on a regular basis.

Wires and Rods Information

The most common wire

Resin Filter V Shaped Wedge Wire Screen Tube Steel 304

The most common support rod

Resin Filter V Shaped Wedge Wire Screen Tube Steel 304

The details

Resin Filter V Shaped Wedge Wire Screen Tube Steel 304

Resin Filter V Shaped Wedge Wire Screen Tube Steel 304Resin Filter V Shaped Wedge Wire Screen Tube Steel 304

The Usage accasion:

The Wedge wire filter is useful for your tasks in any of the following areas:
Civil aggregate

CIL process

Dewatering
Trash

Scalping

Sizing

Classification
Waste water
Food processing.

Resin Filter V Shaped Wedge Wire Screen Tube Steel 304

The Package and delivery

Resin Filter V Shaped Wedge Wire Screen Tube Steel 304
