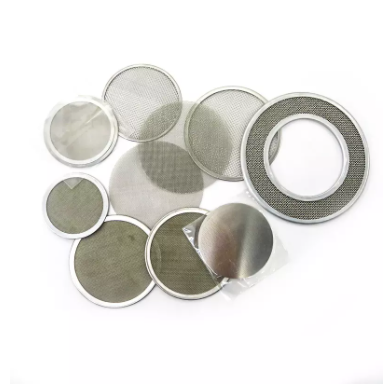

Screen Acid Resisting Wire Mesh Filter Disc Stainless Steel 304 316l Sliver
Screen Acid Resisting Wire Mesh Filter Disc Stainless Steel 304 316l Sliver
Screen Acid Resisting Wire Mesh Filter Disc Stainless Steel 304 316l Sliver
Screen Acid Resisting Wire Mesh Filter Disc Stainless Steel 304 316l Sliver
Specifications
Brand Name :
STD
Model Number :
STD-F1
Certification :
FDA ,CE，PICC,SGS,ISO
Place of Origin :
China
MOQ :
10
Price :
To be negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 pieces per day
Delivery Time :
5-8word days
Packaging Details :
Plastic film and then in carton or costumized
Name :
Wire mesh metal filter disc
Material :
304 stainless steel，316L
Specification :
2mesh-500mesh
Feature :
Heat Resisting,Acid Resisting,Corrosion Resisting
Usage :
Chemical Industry,Filtering,Sieving
Wire Diameter :
0.02-2mm,0.02-10mm
Size :
Customizable
Color :
Silver
Type :
Weave Wire Mesh
Hole Shape :
Square shape
Thickness :
0.01mm
Width :
1.2m, 3' 4' 5'
Mesh count :
80*400 mesh
Technique :
Woven
Packing :
Craft paper+double layers bubble film
Wire Diameter: :
Wire Diameter:
Application :
Filtration and separation
Length :
30m
Filter Rating :
90%
Description

Wire mesh water filter strong filtration ability,cost-effective.


metal filter disc Types:

Single-layer and multi-layer; edge covered disc, multi-layer welded disc, multi-layer sintered disc etc.

Product material:

Stainless steel 304/ 316, perforated metal meshetc.

Edge Material:

Stainless steel sheet, copper sheet, galvanized sheet, aluminum sheet,rubber ect.

Process Technique:

Spot welded,edge covering and sintered.

metal filter disc Disc Sizes:

Any size can be made according to your requirement, and we also have many exist mould.

Application:

The metal filter disc is used in the high-viscosity melt filter device. It is easy to remove hard materials and condense. Different materials, sizes and custom designs are provided. The material filter can be reused and repeatedly cleaned to meet your different filtering needs. These metal filter discs can be used in the absorption, evaporation and filtration process of petroleum, chemical, metallurgy, food and beverage, medicine and automobile industries.

metal filter disc Data:

Filteration Class

Filtering Rating

(um)

Pore Size Max.

(um)

Permeability

10-12m²

Breathability

m3/h.m2.KPa

Thickness

(mm)

Compression

Strength

MPa/ cm²
S9 0.2 2.5 1 3 3.0
S8 0.5 4 3 3 3.0
S7 1.0 6 5 3 3.0
S6 2.5 10 0.09 10 3 3.0
S5 5 15 0.23 40 3 3.0
8 20 0.91 80 3 3.0
S4 10 30 1.81 160 3 3.0
S3 30 60 3.82 350 3 3.0
35 80 7.29 500 3 3.0
S2 40 100 9.43 700 3 3.0
S1 65 160 15.1 1000 3 3.0

The Features:

  1. Good quality
  2. Strong filtration capacity
  3. Filter element with accurate
  4. Cost-effective
  5. Stable quality control in the production process.
  6. Widely used in melt filtration.

The Application

In acid, alkali environment conditions sieving and filtering.

Petroleum industry as mud mesh,.

Chemical fiber indust

Plating industry as acid cleaning mesh.

Screen Acid Resisting Wire Mesh Filter Disc Stainless Steel 304 316l Sliver

Screen Acid Resisting Wire Mesh Filter Disc Stainless Steel 304 316l SliverScreen Acid Resisting Wire Mesh Filter Disc Stainless Steel 304 316l Sliver

The way of weave

Screen Acid Resisting Wire Mesh Filter Disc Stainless Steel 304 316l Sliver

The Package and Delivery:

Screen Acid Resisting Wire Mesh Filter Disc Stainless Steel 304 316l Sliver
