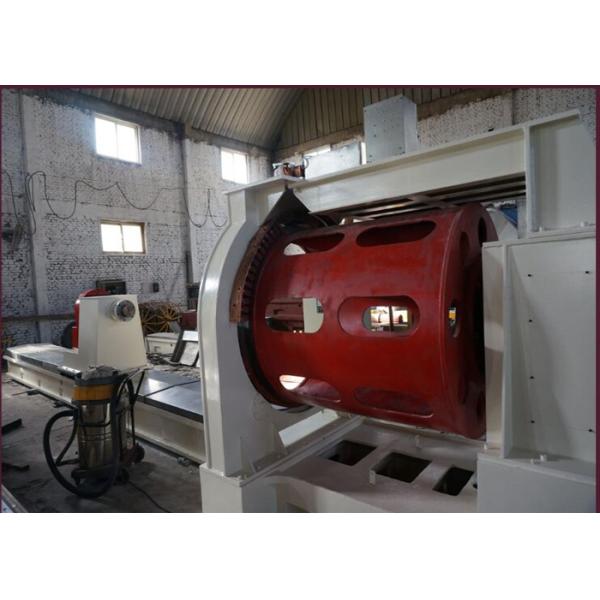

Wedged wire screen/Johnson pipe/Filter tube/Mineral sieve/Griddle mesh welding machine

　HWJ1200*4000mm with double Bearing Technical details

　　1 Diameter of filter tube: Max 1200mm, Min 600mm,

　　2 Max. Length of filter Tube 4000mm

　　3 Rod and wire diameter

　　1.5mm to 5mm. The supporting rod can be up to 20mm high for big size tube.

　　4 Material Carbon steel, stainless Steel

　　5 Mitsubishi Double –drive servo motor Two Set : 7 KW, One set: 5Kw

　　6 Power of welding transformer 200KVA

　　7 Welding speed is adjustable according to the tube diameter Max. 9rpm,

　　8 Slot (adjustable) Min 0.2mm, Max.16mm

　　9 Precision of slot +/- 0.03mm

　　10 Outside dimension: 11000mm*2500mm*3000mm

　　11 Weight Vendor :20tons

　　12 PLC with, on Machine mounted, Touch Screen on rotating ARM

　　Mitsubishi/Siemens

　　13 tooling : two sets for free(as buyers’ requirement)

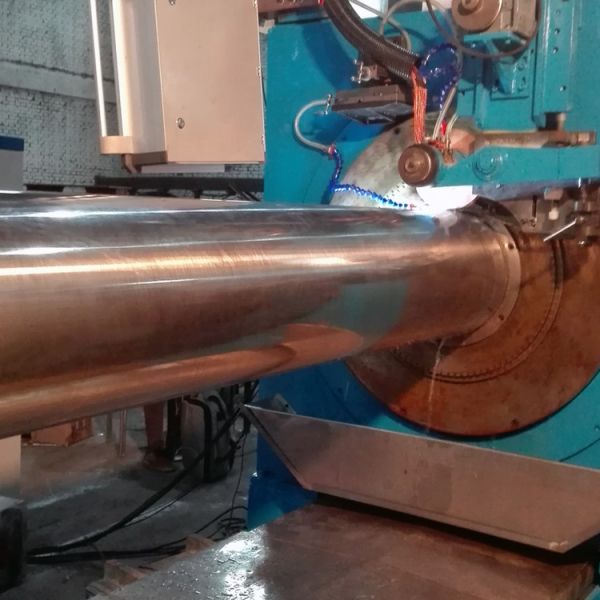

The wire mesh filter welding machines,developped and produced by us,feature low noise,low enery consumption,steady function,and safety.the electric system adopts Mitsubishi E60.the feeding spindle and the main spindle adopt Minsubshi AC servo motors which drivesrs.Controlled by the control system,the servo moor drivers the ball screw which drivers the wire-drawing disk.sliding on the straight rall,the wire-drawing sisk moves according to the order of the control system.the slot clearance can be adjusted as requirement.the data dispalyed on the screen can be reset easily.Lock-expanding ring is equipped on the machine.after the operator feeds the longitudinal wire,expand and lock the wire the ring.it saves time and material during unload the filter tube.the machines are ideal for making mine mesh,and medical and chemical filters.we ofter perfect sevice and train operators for free.

Satisfying our client is our basement.good quality is our promise.we hope we can offer service for you.
