Specifications
Brand Name :
Renchun
Model Number :
HWJ600
Place of Origin :
China
MOQ :
1 set
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30-90 days
Packaging Details :
1.The mechanical parts bared in container 2.Touch screen and control cabinet packed in wooden box.
Supply Ability :
50 Set/Sets per Year
Lathe Material :
Casting
Usage :
Welding Wedge Wire,wrap Wire,water Well Screen
Motor :
Mitsubishi Servo Motor
Colour :
As requirement
Length :
9500mm
width :
2300mm
Height :
2300mm
Voltage :
50/60Hz
Product name :
wire mesh
Machine type :
HWJ600
Description

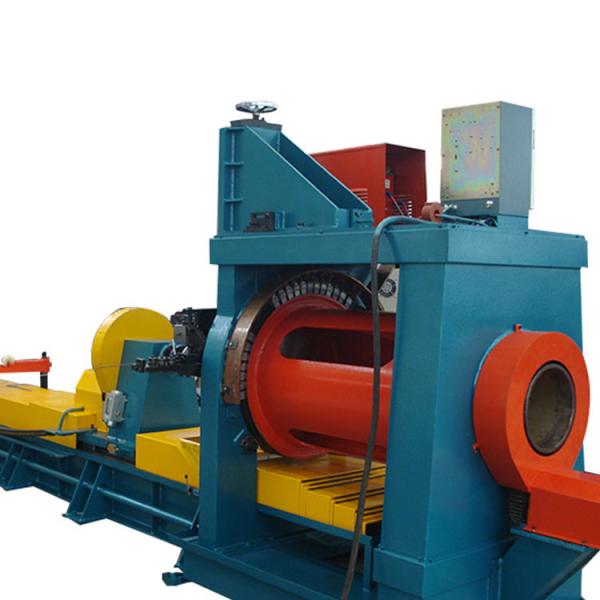

Three Phase 380V 50Hz Vee Wire Mesh Welding Machine 2300MM Height

1. Company Information

Shijiazhuang Renchun Mesh Equipment Co., Ltd. is specialized in designing, developing, and manufacturing Vee Wire Mesh Screens Welding Machine. Its CNC mesh welding machine has gained good reputation around the world because of perfect design, advanced technology, practical performance, and simple operation.

And the company has gained national patents on the Vee Wire Mesh Screens Welding Machine.

Wedge Wire Screen Welding Machine

The wedge wire screen welding machine is special for welding wedge wire screen (mesh), water well screen (mesh), Vee-wire screen (mesh) for any filtering purpose in chemistry, mining industry and enviromental protection industry, etc.

Spec of quality automatic wedged wire screen mesh wrapped welding machine

Model φ50-200mm φ100-400mm φ400-1200mm
Power 3Phase 380V 50Hz 3Phase 380V 50Hz 3Phase 380V 50Hz
Rated Capacity 100 KVA 100 KVA 100 KVA
Slot Distance ≥0.1mm ≥0.2mm ≥0.25mm
Canister Length ≤6000mm ≤6000mm ≤4000mm
Weld Material Stainless Steel Wire & Low Carbon Steel Wire
V-wire Size 1.8-5.0mm 1.8-5.0mm 1.8-5.0mm
Support Rod Size 1.8-5.0mm 1.8-5.0mm 1.8-5.0mm
Overall Dimension 13000*1500*3300mm 13000*1600*3400mm 11000*2100*3800mm
Weight 10000KGS 11000KGS 13000KGS

2. Machine Description

Are you familiar with Vee Wire Mesh Screens Welding Machine?

Regarding to Wire Mesh screens Welding Machine, usually called wedge wire screen welding machine. it is produced through the method of electric resistance welding wires with special profile are welded to supporting wires at 90 degrees angle.

At present, basing on the Water well screen welding machine good features(Fine slot size, high filtering precision, firm structure, high temperature, and corrosion resistance), wedge wire screen almost instead of bridge screen, slotted screen, and others.

Our Wire Mesh Welding Machine is an special equipment for making wedge wire screen, wire wrapped screen, johnson screen, and water well screen etc.

Wire Mesh Welding Machine------- Fundamentals Of Welding

how to weld wire mesh?

Mesh welding equipment adopts the method of electric resistance welding .

Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.

It is easy to change the data on the touching screen. Lock-expanding ring is equipped on the machine. After the operator feeds the longitudinal wire, expand, and lock the wire with the ring.

It saves time and material during unload the filter tube.It is easy to learn how to control the machine.

3. Renchun HWJ600 Water Well Screen Welding Machine Parameter

NO. ITEM Data
1 Diameter of filter tube Max.300mm,Min.100mm.
2 Max. Length of filter tube Max.6000mm
3 Rod and wire diameter 1.2mm to 5mm.
4 Material Carbon steel, stainless steel
5

Mitsubishi double-drive servo motor

Two sets:7KW,One set:5KW
6 Power of welding transformer 200KVA
7 Welding speed is adjustable according to the tube diameter Max.30rpm,6rpm
8 Slot(adjustable) Min0.10mm,Max.20mm
9 precision of slot ±0.03mm

Renchun Vee Wire Mesh Screens Welding Machine With High Configuration

4. Our customer

Renchun HWJ600 Water Well Screen Welding Machine Foreign market: the United States, Brazil, Italy, Belgium, South Korea, Singapore, Tunisia, Turkey, Russia, India, etc.
