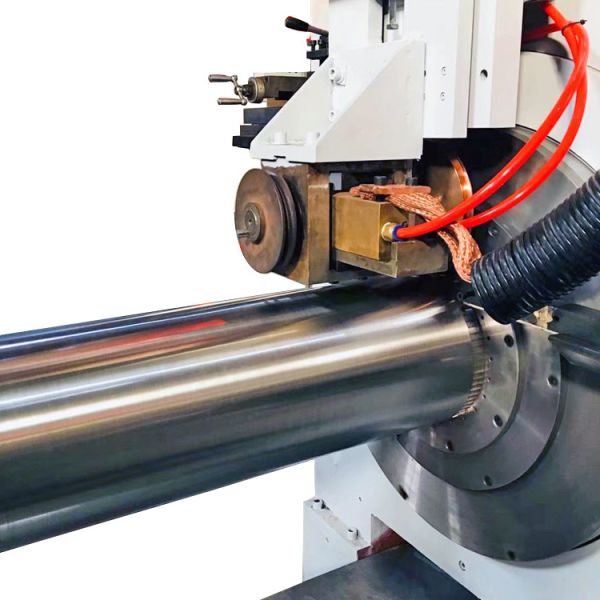

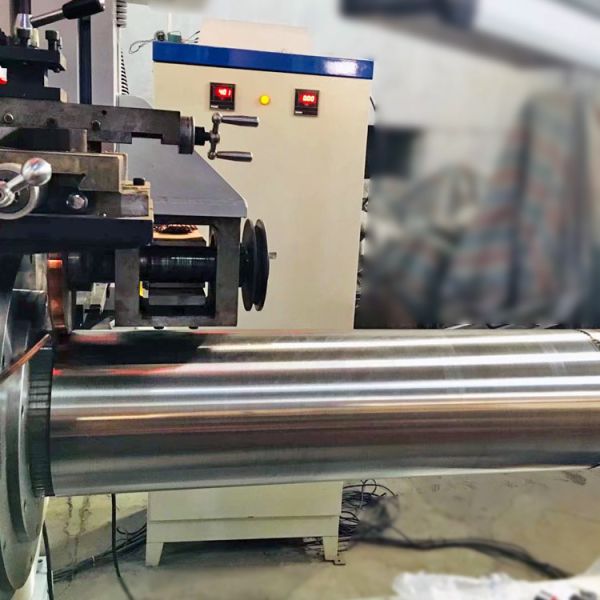

AC Servo Motor Galvanized Wire Mesh Manufacturing Machine Low Energy Consumption​

1. Company Information

The wire mesh filter welding machines,developped and produced by us,feature low noise,low energy consumption,steady function,and safety.the electric system adopts Mitsubishi E60.the feeding spindle and the main spindle adopt Mitsubishi AC servo motors and drivers.controlled by the control system,the servo motor drivers the ball screw which drivers the wire-drawing disk.sliding on the straight rail,the wire -drawing disk moves according to the order of the control system.the slot clearance can be adjusted as requirement.the data displayed on the screen can be reset easily.lock-expanding ring is equipped on the machine.after the operator feeds the longitudinal wire,expand and lock the wire with the ring.it saves time and material during unload the filter tube.the machines are ideal for making filter tubes of oil filtering,wtaer cleaning and water well filtering,as well as mine mesh.and medical and chemical filters.

2. Machine Description

Wire Mesh Welding Machines Iow Price High Precision /Wedge Wire Screen Wire Mesh Welding Machine


Galvanized Wire Mesh Welding Machine, Construction Mesh Welding Machine, Reinforcement Mesh Welder

Are you familiar with Wire Mesh Welding Machine?
Regarding to the Wire Mesh Welding Machine, usually called wedge wire screen welding machine.it is produced through the method of electric resistance welding:wires with special profile are welded to supporting wires at 90 degrees angle.

At present ,basing on the Water well screen welding machine good features(Fine slot size, high filtering precision, firm structure, high temperature, and corrosion resistance),wedge wire screen almost instead of bridge screen, slotted screen, and others.

Our Wire Mesh Welding Machine is an special equipment for making wedge wire screen,wire wrapped screen ,johnson screen ,and water well screen etc.

It is easy to change the data on the touching screen. Lock-expanding ring is equipped on the machine. After the operator feeds the longitudinal wire, expand and lock the wire with the ring.

It saves time and material during unload the filter tube.It is easy to learn how to control the machine.

3 Quality Products Welded Galvanized Wire Mesh Machine From Chinese Merchandise

Quality Products Welded Galvanized Wire Mesh Machine From Chinese Merchandise




4. Our customer
Renchun HWJ300 Water Well Screen Welding Machine Foreign market: the United States, Brazil, Italy, Belgium, South Korea, Singapore, Tunisia, Turkey, Russia, India, etc.

5. Packaging & Delivery
Packaging Details: The mechanical parts bared in container
Touch screen and control cabinet packed in wooden box.
Delivery Detail: Shipped in 60 days after payment
