Specifications
Brand Name :
Renchun
Model Number :
HWJ1200
Place of Origin :
China
MOQ :
1 set
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 Set/Sets per Year
Delivery Time :
30-90 days
Packaging Details :
1.The mechanical parts bared in container 2.Touch screen and control cabinet packed in wooden box.
Lathe Material :
Casting
Usage :
welding Johnson screen
Motor :
Mitsubishi Servo Motor
Colour :
As Requirement
Voltage :
50/60Hz
Tube diameter :
600mm-1200mm
Tube length :
4000mm
Wire range :
1.5*2.5mm-3.7*6mm
Welding speed :
6-20rpm
Precision of slot :
±0.3mm
Color :
White/Yellow/red/blue,etc. as request
Description

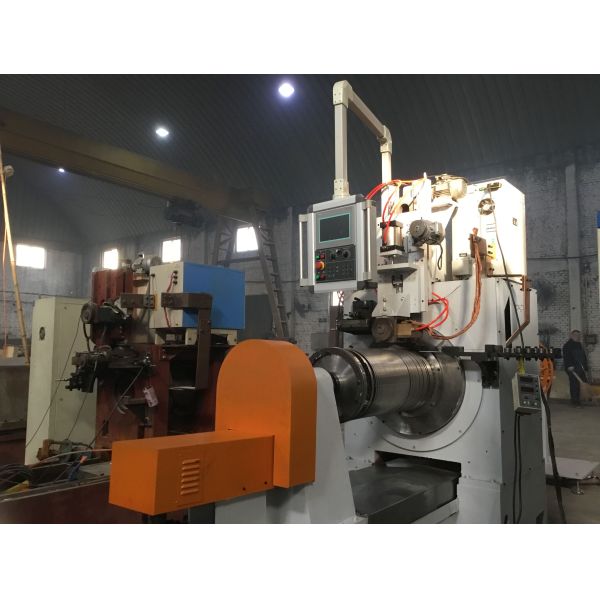

Wedged Wire Screen Mesh Welding Machine Automatically


The wire mesh filter welding machines,developped and produced by us,feature low noise,low energy consumption,steady function,and safety.the electric system adopts Mitsubishi E60.the feeding spindle and the main spindle adopt Mitsubishi AC servo motors and drivers.controlled by the control system,the servo motor drivers the ball screw which drivers the wire-drawing disk.sliding on the straight rail,the wire -drawing disk moves according to the order of the control system.the slot clearance can be adjusted as requirement.the data displayed on the screen can be reset easily.lock-expanding ring is equipped on the machine.after the operator feeds the longitudinal wire,expand and lock the wire with the ring.it saves time and material during unload the filter tube.the machines are ideal for making filter tubes of oil filtering,wtaer cleaning and water well filtering,as well as mine mesh.and medical and chemical filters.

SPECIFICATIONS FOR HWJ1200 WEDGE WIRE SCREEN WELDING MACHINE
Tube
Tube diameter
MM
600-1200mm
Tube length
MM
4000mm
Wire range
MM
1.5*2.5-3.7*6
Main performance parameters
Main performance parameters
Mitsubishi servo motor
7.5KW two sets
5.5KW one set
Welding transformer power
KVA
200
Welding speed
VPM
200
Control system
(Siemens/Mitsubishi )
Controller
Welding
Domestic Power Frenquency
Transformer
Welding
Domestic Power Frenquency
Ball screw
Taiwan
8010

Wedged Wire Screen Mesh Welding Machine Automatically
