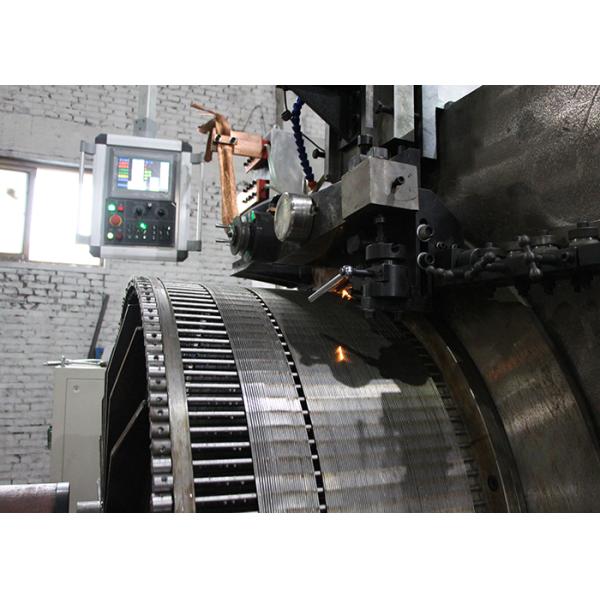

Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
Specifications
Brand Name :
Renchun
Model Number :
HWJ1200
Place of Origin :
China
MOQ :
1 set
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30-90 days
Packaging Details :
1.The mechanical parts bared in container 2.Touch screen and control cabinet packed in wooden box.
Supply Ability :
50 Set/Sets per Year
Usage :
welding Johnson screen
Tube diameter :
600mm-1200mm
Tube length :
4000mm
Wire range :
1.5*2.5mm-3.7*6mm
Welding speed :
6-20rpm
Precision of slot :
±0.3mm
Voltage :
380V
Description

Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter

Main Features

Renchun Hwj1200 Juice Rotary Screen Johnson Pipe Screen Welding Machine

wedged wire screen mesh welding machine(direct factory)

1) This machine is of two-axle CNC control, servo motor drive, high welding precision.
2) Two working methods: manual and auto. Under Auto method, by inputting relative data, the machine will work automatically.
3) Very strong self-diagnose function, can display any mis-operation alarms; Alarming error can be seen from displayer

Function Characteristics
1. Our wedged wire screen mesh welding machine have the strongpoint of low noise, low energy consumption and stable function.
2. The electrical control system is researched and developed by ourselves; main axis and feeding axis are both adopt Panasonic Brand AC power servo motor and drivers.
3. Slot size adopts NC servo motor to drive ball-screws. Ball-screws drive the drawing support rods plate sliding on linear guideway according to the instructions, slot size could be adjusted randomly.
4. Machine parameters display visually and conveniently, simple and easy to do. Ball-screws and linear guideway both adopt import famous brand products.
5. The machine are combined by CD61100 lathe, welding control cabinet, transformer and wire press unit, it has strongpoint of welding hole distance.

SPECIFICATIONS FOR HWJ1200 WEDGE WIRE SCREEN WELDING MACHINE
Tube diameter
MM
200-850
Tube length
MM
3000-4000
Wire range
MM
1.5*2.5-3.2*5
Welding transformer power
KVA
200
Welding speed
VPM
200
Main performance parameters
Mitsubishi servo motor
7.5KW two sets
5.5KW one set

Main Features

1) Machine body in casting improve structure stability .

2) Adopting advanced world famous brand components in ballscrew and linear guide .

3) High pressure double crank to control the die opening and closing.

4) Running in a Mitsubishi control system ensuring system stability,clear guidance,easy operation.

5) Apply a Humanized design, which can remote control the limited ballscrew move back and forth, with improvement

Rotary Juice Screen Wire Mesh Welding Machine 600-1200 MM Tube Diameter
