Specifications
Brand Name :
Renchun
Model Number :
HWJ1200
Place of Origin :
China
MOQ :
1 set
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30-90 days
Packaging Details :
1.The mechanical parts bared in container 2.Touch screen and control cabinet packed in wooden box.
Supply Ability :
50 Set/Sets per Year
Tube diameter :
600mm-1200mm
Tube length :
4000mm
Wire range :
1.5*2.5mm-3.7*6mm
Rated Capacity :
200KVA
Weight :
15000kg
After-sales Service Provided :
Engineers available to service machinery overseas
Description

V Johnson Water Well Screens Wire Mesh Manufacturing Machine Servo Motor Drive​

Product Application

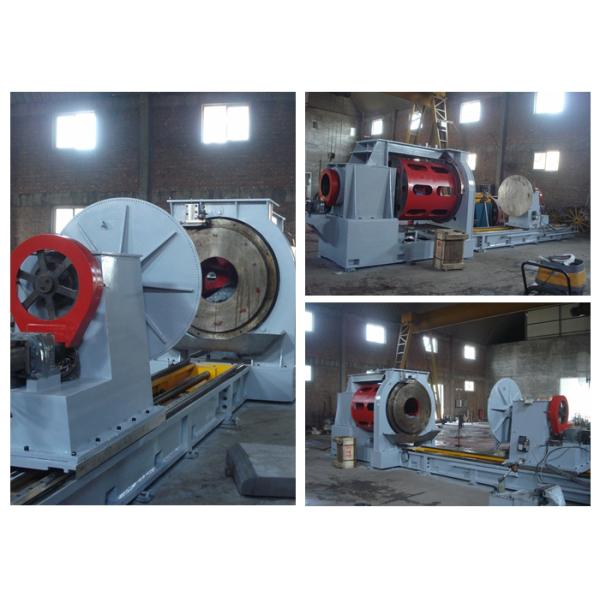

HWJ1200 v- wire mesh welding machine
The wire mesh filter welding machines,developped and produced by us,feature low noise,low energy consumption,steady function,and safety.the electric system adopts Mitsubishi E60.the feeding spindle and the main spindle adopt Mitsubishi AC servo motors and drivers.controlled by the control system,the servo motor drivers the ball screw which drivers the wire-drawing disk.

Wedge wire screen welding machines adopts resistance welding fundamental.
Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.
Enterprise development concept and service
friendly cooperation
development and innovation,
mutual benefit

Main Features

wedged wire screen mesh welding machine(direct factory)

1) This machine is of two-axle CNC control, servo motor drive, high welding precision.
2) Two working methods: manual and auto. Under Auto method, by inputting relative data, the machine will work automatically.
3) Very strong self-diagnose function, can display any mis-operation alarms; Alarming error can be seen from displayer

.Q: What's the machine price?


A: We need to know your wanted screen diameter, screen length, V-wire size, V-wire space ETC.

Q: Can you make voltage according to my requirement?

A: yes, we can make 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.

Q: What's the payment terms?

A: 30% T/T in advance, 70% T/T before shipment, or 100% irrevocable L/C at sight, or cash etc.

It is negotiationable.

Q: How to install the machines?

A: Please check below "After sales service".

2017 hot sale Costacurta wedge wire Screen welding machine named by the products that it produces.the machines can be called wedge wire screen welding machine,johnson screen welding machine ,NC stainless steel screen welding machine ,wire screen machine,water well screen welding machine ,wrapped wire screen welding machine etc.

SPECIFICATIONS FOR HWJ1200 WEDGE WIRE SCREEN WELDING MACHINE
Tube diameter
MM
200-850
Tube length
MM
3000-4000
Wire range
MM
1.5*2.5-3.2*5
Welding transformer power
KVA
200
Welding speed
VPM
200
Main performance parameters
Mitsubishi servo motor
7.5KW two sets
5.5KW one set

1, Dimension 9500*2000*3000mm.

2, Tube diameter 600-1200mm.

3, The maximum length of screen is 4000mm,in this range,you can produce tube as your requirements.

4, Screen slit gap can be adjusted according to the requirements(in the case of parking or not),solt size range:0.2mm-16mm.

5, tolerance clearance ±0.02mm.

6, maximum speed of spindle:10 rpm.

7, Mitsubishi servo motor,motor power:4.5kW two motor,3.5kW one motor .

8, Transmission medium adopts Using linear guide and ball screw

9, nominal voltage :380V/50Hz.

10, welding transformer :200kVA.

11, We offer two sets of tooling for free.,The customer can choose which are between 80mm to300mm
