Specifications
Brand Name :
Renchun
Model Number :
HWJ1200
Place of Origin :
China
MOQ :
1 set
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30-90 days
Packaging Details :
1.The mechanical parts bared in container 2.Touch screen and control cabinet packed in wooden box.
Supply Ability :
50 Set/Sets per Year
Lathe Material :
Casting
Usage :
welding Johnson screen
Motor :
Mitsubishi Servo Motor
Colour :
As Requirement
Voltage :
50/60Hz
Tube diameter :
600mm-1200mm
Tube length :
4000mm
Wire range :
1.5*2.5mm-3.7*6mm
Welding speed :
6-20rpm
Precision of slot :
±0.3mm
Color :
White/Yellow/red/blue,etc. as request
Warranty :
One Year
Description

CNC Johnson Wire Screen Welding Machine , Welded Wire Mesh Machine​

Shijiazhuang Renchun Mesh Equipment Co., Ltd. is specialized in designing, developing and

manufacturing wedge wire screen weldig machine.

Its CNC mesh welding machine has gained good reputation around the world because of perfect design, advanced technology, practical performance and simple operation.

And the company has gained national patents on the mesh welding machine.

Enterprise development concept and service

friendly cooperation

development and innovation,

mutual benefit

Adhere to the "three-excellent" service

Perfect product quality

Reasonable product price

High quality after-sale service

welcome friends to our factory,we must make your trip worth well.

SPECIFICATIONS FOR HWJ1200 WEDGE WIRE SCREEN WELDING MACHINE
Tube
Tube diameter
MM
600-1200mm
Tube length
MM
4000mm
Wire range
MM
1.5*2.5-3.7*6
Main performance parameters
Main performance parameters
Mitsubishi servo motor
7.5KW two sets
5.5KW one set
Welding transformer power
KVA
200
Welding speed
VPM
200
Control system
(Siemens/Mitsubishi )
Controller
Welding
Domestic Power Frenquency
Transformer
Welding
Domestic Power Frenquency
Ball screw
Taiwan
8010

Our wedge wire screen welding machine is an special equipment for making wedge wire screen,wire wrapped screen ,johnson screen ,and water well screen etc.

1.Application

The juice rotaryscreen wedge wire screen welding machine is an ideal for making wedge wire screen,wire wrapped screen ,johnson screen ,and water well screen etc.

2 wedge wire /bar screen welding machine Main features

A. low noise

B. less power consumption

C. safety

D. easy to operate

E. high welding precision

Mesh welding equipment adopts Japanese Mitsubishi E60 CNC control system.

Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.

Filter mesh welding machine characteristics:

Features

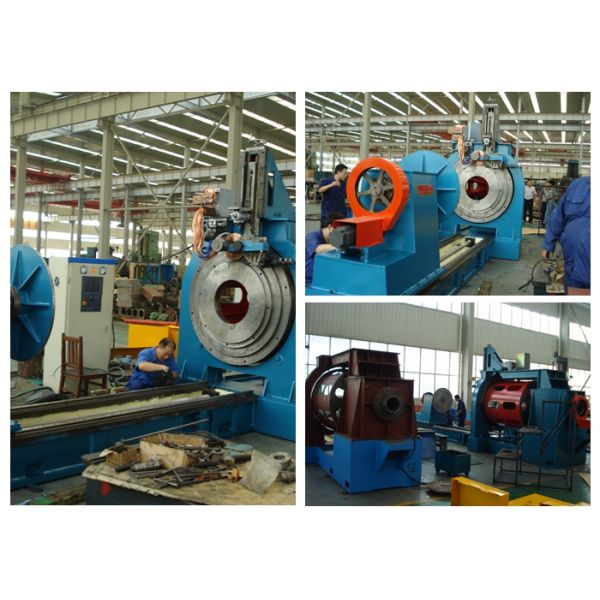

The machine are combined by CD61100 lathe, welding control cabinet, transformer, roller and wire rolling unit. It has strongpoint of standard welding slot distance.

Usage: welding wire wrapped screen pipe, mineral filtrating mesh, coal washing mesh, water filtration mesh, water well screen etc.

Machine functions:

Machine’s working mode: Automatic mode and Adjustable mode

a). Automatic mode, input correct variable values then the machine will working in automatic cycle.

b). Adjustable mode, every parts movement could be adjustable.
