600MM Water Well Screen Wire Mesh Making Machine Welding Copper Wheel With Mitsubishi System
600MM Water Well Screen Wire Mesh Making Machine Welding Copper Wheel With Mitsubishi System
600MM Water Well Screen Wire Mesh Making Machine Welding Copper Wheel With Mitsubishi System
600MM Water Well Screen Wire Mesh Making Machine Welding Copper Wheel With Mitsubishi System
Specifications
Brand Name :
Renchun
Model Number :
HWJ600
Place of Origin :
China
MOQ :
one set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30-90 days
Packaging Details :
.Touch screen and control cabinet packed in wooden box.;The mechanical parts bared in container
Supply Ability :
50 sets per year
Machine Product :
Profile Wire Screen
Bearing :
Special bearing
Application :
Water well screen
Operation cabinet :
Cantilever type
Electric system :
Mitsubishi E60 control system
Feature :
Low noise,low energy consumption
Welding transformer power :
Domestic power frenquency
Description

600MM Water Well Screen Wire Mesh Making Machine Welding Copper Wheel With Mitsubishi System

Product Description

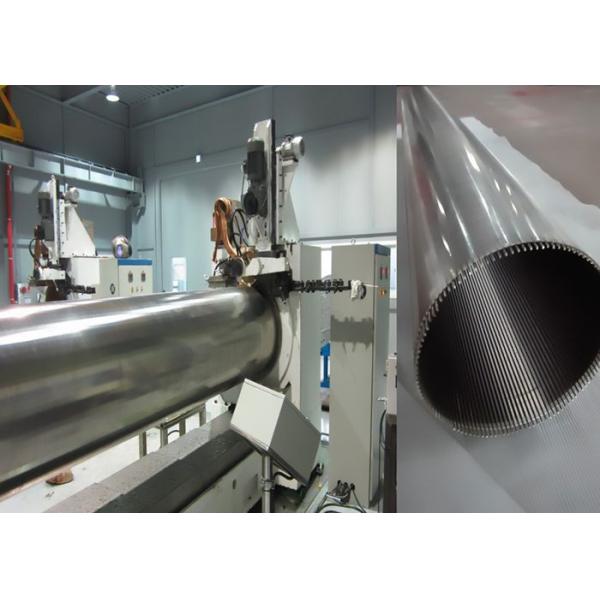

600mm Diameter Profile Wire Screen Welding Machine

This type of profile wire welding machine can be used to producing water well screen in water treatment. The solid particles and liquid are separated by the profile wire screen. The liquid flow through the screen and the solid particles roll down.

The equipment running steady and perfect to producing the profile wire screen pipe in good surface finish and roundness with high precision. Wedge wire screen consist of profile wire and support rods with the materials of galvanized steel, low carbon steel and stainless steel 304, 316.

By using the equipment,it has good performance in dewatering applications.The machine is combined by lathe,welding control cabinet, transformer roller and wire press unit.NC control system,servo motor drive, high welding precision. It has high precision of standard welding slot distance.

600MM Water Well Screen Wire Mesh Making Machine Welding Copper Wheel With Mitsubishi System

Parameters for profile wire screen welding machine

Item name 600mm profile wire creen welding machine Filter tube diameter 100mm-650mm
Rod and wire diameter 1.2mm-5mm Filter tube Max length 6000mm
Material stainless steel;carbon steel Mitsubishi double drive servo motor 7kw two sets;5.5 one set
Welding transformer power 200 KVA Welding speed 6-30 rpm
Slot (ajustable) 0.1mm-20mm Slot precision ±0.03mm
Application water well screen manufacturing Model number HWJ600
Origin Hebei ,China Sea port Tianjin

The profile wire machine exported and satisfied by cilnets .

Running in a Mitsubishi control system ensuring system stability,clear guidance,easy operation .

Apply a Humanized design, which can remote control the limited ball screw move back and forth, with improvement of the cantilever type control panel.

Advantage of profile wire screens manufactured by our machine

High strength

Good resistance to abrasion and corrosion

High rigidity

Good in filtration and fluidity

Flat panel surface

Fairly well precision and roundness

Long work time

Easy to clean and back wash

Uniform gap

Applications

Different industries including petrochemical, medical fitering, water cleaning,oil well filtering, mineral, mine mesh, food and chemical filters are used such profile wire screen welding machines.Oil and gas wells, Chemical, Mining, Papermaking, Industrial fluids, Environmental protection, Food industry, Sand control, Metallurgy, Decoration, Water treatment etc.

Oversea market

Quality equipment are saled to Brazil, USA , Canada , Russia , Italy ,France ,Turkey, India , Korea, Japan,etc . countries .

Contact us

Expertized engineering teams will ready to provide best service and quality products from Renchun Company. Call us now for your screening needs! Choose our equipment,get fine products!
