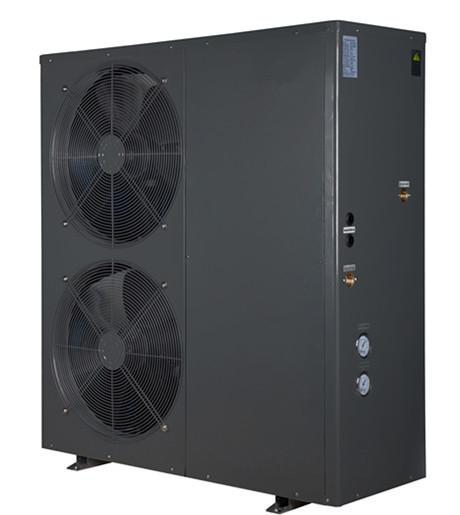

-25C operation high efficient monoblock air to water EVI heat pump

1.EVI super heat pump high COP;
2.R407C refrigerant;
3.Automatic defrosting function included;
4.Work in -25℃ low temperature stably;

5.Patent appearance;

6.Chassis electric heater cable .

Function:

1, Heating mode
2,Compressor over current protection function
3, Automatically remember all parameters if power off
4, Display water tank temp, preset temp and inquiry function
5,Turn on/off at two certain period of time within 24 hours.
6,Compressors run in balance and starts are staggered.
7,Electric heating back up.
8,Automatically and forced defrosting function
9,Huge LCD display (with blue background and white word).
10,Perfect protect and display
11,Lack of phase or wrong phase of three phase power supply can be protected.
12,Anti-freezing function
13, Under the condition of without control panel (or panel damaged), system can work automatically.
14,Linkage interface (optional)

Temperature:

1, Working temperature range of outdoor: -7℃ to 43℃
2,Rated working condition: Rated working condition: dry-bulb temp: 20℃, wet-bulb temp: 15℃, cool water temp: 15℃, hot water temp:55 ℃.
3, Max water temperature: 60℃

Some important information:

1,Working mode: Heating mode
2,Level of protection: IPX4
3,Electric shock proof grade: I
4,Refrigerant: R407C or R134A or R417A

Components:

1,Compressor: Copeland scroll compressor
2,Controller:wedy multifunction controller, (circuit board, LCD panel, temperature sensors)
3,Evaporator: Hydropilic Aluminium foil and internal thread copper pipe heat exchanger
4,Throttle unit: Danfoss electric expansion valve
5,Cabinet: Galvanized sheet/ Spray coating/ gray color or stainless steel
6,Condenser: high efficiency shell and tube heat exchanger or double-pipe heat exchanger

	EVI air to water heat pump
Model				WD-03SR-D	WD-03SR-D/380V	WD-05SR-D	WD-10SR-D	WD-20SR-D
Standard components	Cabinet/color			Spray coating
	Refrigerant			R407C,R404,R410
	Power supply			220V～240V/50Hz/1ph	380V～415V/50Hz/3ph
	Compressor type			Copeland EVI compressor
	Compressor model * quantity			ZW30KSE*1	ZW34KSE*1	ZW61KSE*1	ZW61KSE*2	ZW108KSE*2
	Condenser			High efficiency shell and tube heat exchanger
	Economy unit			Plate heat exchanger
	Evaporator			Blue hydrophilic aliuminium foil,wavy fin and copper tube heat exchanger
	Throttle unit			Heat expansion valve
	Controller			Muti-function controller
	Protection function			Tempreature protection, time protection, water flow protection, antifreeze protection, current protection
	Low pressure switch			0.05/0.15MPa
	High pressure switch			3.0/3.2MPa
	Power supply line size			2.5mm2	2.5mm2	4mm2	6mm2	10mm2
	Package		W*D*H	910*500*1320	910*500*1320	1160*500*1410	1510*820*1320	1940*1120*2180
Specifications	Heating capacity	20℃	kW	10.8	11.8	20.6	40.6	74.4
	Input power when heating		kW	2.81	3.1	5.4	10.7	19.6
	Rated current		A	12.4	5.9	9	17.6	35.2
	COP			3.84	3.81	3.81	3.79	3.80
	Hot water capacity		L/H	232	254	443	873	1599
	Heating capacity	-10℃	kW	6.3	7	12.6	24.4	43.2
	Input power when heating		kW	2.58	2.9	5.1	9.9	17.4
	COP			2.44	2.41	2.47	2.46	2.48
	Hot water capacity		L/H	135	150	271	524	929
	Heating capacity	-20℃	kW	4.9	5.4	10.3	19.6	31
	Input power when heating		kW	2.45	2.68	5.05	9.8	15.36
	COP			2.00	2.01	2.04	2.00	2.02
	Hot water capacity		L/H	105	116	221	421	666
	Rated outlet water temp		℃	55
	Max outlet water temp		℃	60
	Water flow		m3/H	Product tags hybrid heat pump water heater , water heater heat pump retrofit , reverse cycle heat pump Send your message to this supplier Message* Email* Phone or WhatsApp* Name Company Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Send Now Submission successful! Wedy heat pump -25C operation high efficient monoblock air to water EVI heat pump Ask Latest Price Product Detail Place of Origin : China Brand Name : Wedy Certification : CE ,CCC,ISO Model Number : WD-05SR-d MOQ : 1 sets Price : USD1000 Contact Supplier GuangZhou Wedy Technology Equipment Co.,Ltd Active Member 9 Years guangdong, guangzhou Since 2008 Business Type : Manufacturer, Exporter, Seller Main Products : EVI air to air heat pump, Commercial use air source heat pump--hot water, Home use air source heat pump Total Annual : >lessthan$1,000,000 Employee Number : >less than 50 Certification Level : Active Member Discover similar products EVI heat pump Contact Now low noise commercial use air source heat pump for school Contact Now EVI Air to Water Heat Pump for -25degree with CE certificate 13KW Contact Now EVI Air to Water Heat Pump for -25degree with CE certificate 18.8KW Contact Now 12.8kw heating and cooling heatpump 220V/380V-50HZ/60HZ Contact Now EVI Air to Water heater for Low Temp. -25degree with CE certificate Contact Now 26kw EVI Air to Water heater for Low Temp. -25degree with CE certificate Contact Now EVI Air to air heat pump for Low Temp. -25degree with CE certificate Contact Now 50hz/60hz House Heating Heat Pump with R407C Contact Now 50hz/60hz Air to water heat pump for floor heating and hot water Contact Now View More Find Similar Products By Category: Supplier Homepage Products EVI air to air heat pump MachineU China Products Home Appliance Water Heaters Heat Pump Water Heaters Contact Supplier Message* Email* Phone or WhatsApp* Name Company Submit Requirement Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Submitted successfully! Your request message has been successfully sent to the supplier. Please keep in touch and they will contact you as soon as possible. OK
