Specifications
Brand Name :
Bitvisus
Model Number :
BIT-VWC-U1-MD404Ma
Certification :
ce
Place of Origin :
China
MOQ :
1Pieces
Price :
Contact us
Payment Terms :
L/C, T/T, D/P
Supply Ability :
Contact us
Delivery Time :
7-14
brand name :
BITVISUS
model number :
BIT-VWC-U1-MD404Ma
Single package size :
57X49X14 cm
Selling Units :
Single item
Product name :
HDMI Matrix
Input :
4 HDMI Input
Output :
4 HDMI Output
Feature 1 :
Support TV wall, PIP picture-in-picture function
Feature 2 :
Support WEB control
Power supply :
50W, 110-240VAC
Certifications :
HDMI FCC CE RoHS
Description

3x1 2x1 2x2 Support 4 Screen Division Seamless UHD Video Switch 4k Hdmi Matrix 4x4 video wall controller

High-Resolution Capabilities: Features a 4-way HDMI 2.0 interface supporting up to 4096x2160@60 resolution, with backward compatibility.
Advanced Splicing Features: Supports point-to-point splicing matrix, splicing overlay, and seamless switching between two curtains. Offers any split roaming overlay for versatile display configurations.
Audio-Video Separation:
Inputs: Accepts audio from both 4-way HDMI and 3.5mm (TRS) interfaces.
Outputs: Provides audio through 4-way HDMI, 4-way 3.5mm (TRS), and 4-way S/PDIF interfaces, with S/PDIF dedicated for audio processing.
Versatile Control Options: Supports IR remote, panel buttons, Windows PC, serial RS232, and Web page control for flexible management.
Customizable Settings: Allows customization of device IP for easy multi-device management and tailored output resolution.
Plug-and-Play Convenience: Compact, hardware-based design with rugged construction ensures ease of installation and use.
Eco-Friendly and Efficient: Designed for low power consumption and certified with CE, RoHS, and FCC standards for safety and environmental compliance.
Versatile Applications: Ideal for command and dispatch systems, multi-screen surveillance, engineering displays, multimedia conference halls, and game rooms.

3x1 2x1 2x2 Support 4 Screen Division Seamless UHD Video Switch 4k Hdmi Matrix 4x4 video wall controller

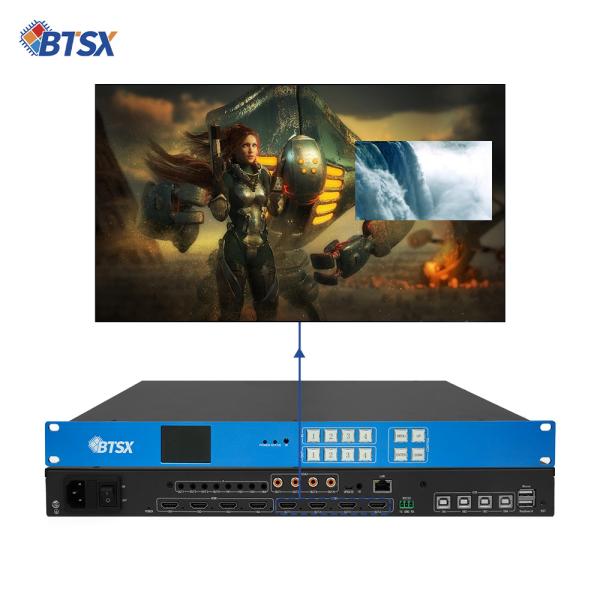

BIT-VWC-U1-MD404Ma is a new audio/video processor with splicing matrix and open window roaming launched by bitvisus , the product has a high-definition processing chip and supports 4-way 4K60 input and 4-way 4K60 output. Using HDMI input interface, HDMI output interface. Apply to the command and control system ,multi-screen video surveillance, engineering display applications, multimedia conference halls, game rooms and so on.

Specification

Product name 4K60 HDMI Video Wall Controller Matrix Switcher
Product features 1.Support splicing matrix, splicing superposition, splicing 2
curtains seamless switching
2.Support arbitrary division, roaming overlay
3.Support customized device IP, multiple devices convenient management
4.Support customized output resolution
5.Support for audio and video separation
Colour depth 24bit
Colour format RGB444,YUV444,YUV422
Storage/working temperature -10～50ºC/0～50ºC
Product Size 43×26×4.5cm
Product weight 1.7KG
Package Size 54.5×46.5×12cm
Package Weight 3.3KG
Support ODM,OEM
Warranty 3year
Accessories list 220V power supply×1, IR receiver×1, remote control×1, network cable×1, USB A-B cable×4
Video Bandwidth 18Gbps

3x1 2x1 2x2 Support 4 Screen Division Seamless UHD Video Switch 4k Hdmi Matrix 4x4 video wall controller

Welcome to consult the project function requirements!

Seamless UHD Video Switch 4k Hdmi Matrix 4x4 Video Wall Controller 3x1 2x1 2x2 Support 4 Screen Division

Seamless UHD Video Switch 4k Hdmi Matrix 4x4 Video Wall Controller 3x1 2x1 2x2 Support 4 Screen Division

Seamless UHD Video Switch 4k Hdmi Matrix 4x4 Video Wall Controller 3x1 2x1 2x2 Support 4 Screen Division

Bitvisus FAQ
Why Choose Bitvisus ?
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We are one of leading Manufacturer in this field.
How to order ?
1. Pls send email or chat with us via TM, WHATS UP, SKYPE, and let us know your Requirements on order details.
2.We will reply you with proforma invoice based on your order request.
3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
Warranty & After-sale
1.Our products come with 12 months warranty and life-time service support.
2.You can return or exchange your items in any of the following Circumstances; Faulty items, Damaged items or wrong models.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
