TFT Four - Scale Digital Weighing Controller With Manual Zero Auto Zero
TFT Four - Scale Digital Weighing Controller With Manual Zero Auto Zero
Specifications
Brand Name :
Supmeter
Model Number :
BST106-M10(FU)
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T,
Supply Ability :
500pcs per month
Delivery Time :
3-10 working day
Packaging Details :
1pcs/box
Power Supply :
DC24V
DI :
9
AO :
2
COM/COM1 :
RS232
Description

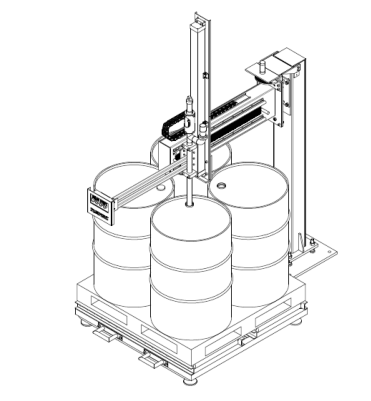

Manual Zero And Auto Zero Ration Filling Controller With 4-Scale

Prompt Messages

Message Alarm Cause Solution
Batch Target Finished Alarm for ‘Batch Count Target Finished’ or ‘Batch Weight Target Finished’. Refer to parameter [203] ‘Batch Count Target’ and [204] ‘Batch Weight Target’.
Last Batch It’s in the filling process of the last batch. The message will disappear after the present batch finished.
Zero Invalid Over ‘Manual/Auto Zero Limit’. Refer to parameter [123] ‘Manual/Auto Zero Limit’.
Tare Invalid Over ‘Tare Weight Limit’. Refer to Recipe parameters ‘Min. Tare Weight Limit’ and ‘Max. Tare Weight Limit’.
  • Structure&Configuration
  • 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
  • Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
  • Display&Operation
  • 16-bit Color screen with 800×480[7”] or 1024×600[10.2”] pixel and LED backlight.
  • Graphic user interface and touch operation.
  • Weight Display Range: -99,999~+999,999.
  • Scale Capacity: Setting Range 1~999,999.
  • Scale Division: Optional 1, 2, 5, 10, 20, 50.
  • Display Resolution: 1/100,000.
  • Weight Unit: Optional g, kg, t, lb[pound], oz[ounce], UserSet.
  • Decimal Point Position: Optional 0, 0.0, 0.00, 0.000.
  • Digital Communication Interface
  • COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
  • COM[RS232] for connecting RS232 Serial Printer with Baud Rate ‘9600bps’, Parity Check ‘None’, 8 Data Bits and 1 Stop Bit.
  • USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
  • LAN: Optional Ethernet port.
  • Report Print
  • The Batch Records can be printed automatically.
  • Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
  • Operating Specification
  • Operating Voltage: DC24V±20%.
  • Max. Power Consumption: 10W.
  • 7”[B] Touch Screen
  • Outline Size: 226.5×163×56mm [W×H×D].
  • Window Size: 153.6×86.64mm [W×H].
  • Box Body Size: 213×150mm [W×H].
  • Panel Cut-out Size: 215×152mm [W×H].
  • Weight: Approx. 0.72kg.
  • 7”[S] Touch Screen
  • Outline Size: 202.5×149×56mm [W×H×D].
  • Window Size: 153.6×86.64mm [W×H].
  • Box Body Size: 190×136mm [W×H].
  • Panel Cut-out Size: 192×138mm [W×H].
  • Weight: Approx. 0.67kg.
  • 10.2” Touch Screen
  • Outline Size: 274×193×56mm [W×H×D].
  • Window Size: 220.8×132.9mm [W×H].
  • Box Body Size: 259×178 [W×H].
  • Panel Cut-out Size: 261×180mm [W×H].
  • Weight: Approx. 1.2kg.
  • Protection Level of Front Panel: IP65.
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.

Outline Size
TFT Four - Scale Digital Weighing Controller With Manual Zero Auto Zero
Installation Mode

System Diagram

TFT Four - Scale Digital Weighing Controller With Manual Zero Auto Zero

Printing format

TFT Four - Scale Digital Weighing Controller With Manual Zero Auto Zero

TFT Four - Scale Digital Weighing Controller With Manual Zero Auto Zero
