Panel Mounted Led Weighing Controller With Dc24v Power And Digital Input
Panel Mounted Led Weighing Controller With Dc24v Power And Digital Input
Specifications
Brand Name :
Supmeter
Model Number :
BST106-B60(T)
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T,
Supply Ability :
5000pcs/month
Delivery Time :
1-20 working days

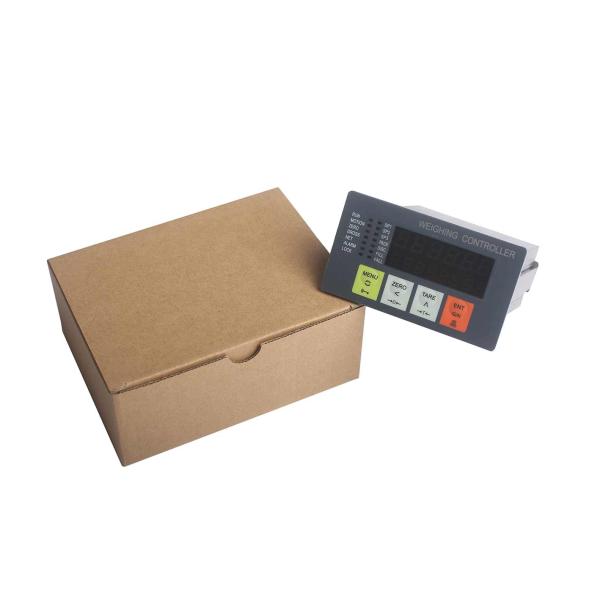

Packaging Details :
1pcs/box
Power Supply :
DC24V
DI :
6
DO :
5
COM1 :
RS232
Analog Signal :
4-20mA
Description

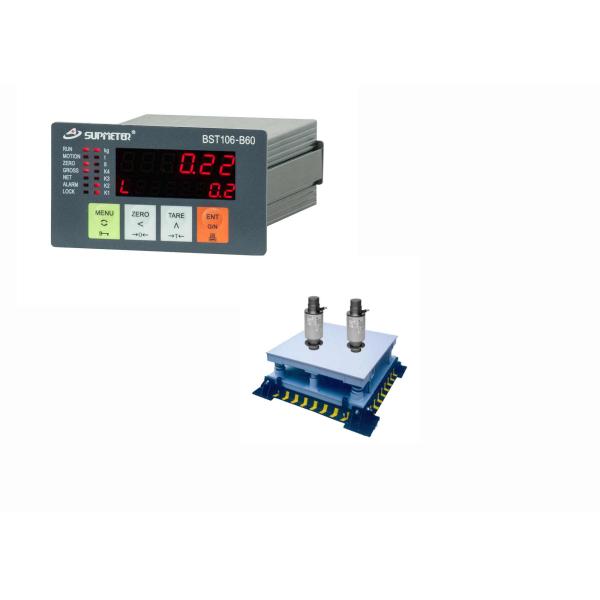

Led Display Weighing & Totalizing Controller Electronic Weighing Indicator

Main Features:

  • Applications: Weight Display, Manual Totalize Net Weight, Setpoint DO Output and AO/Digit Transmission.
  • 4 Optional Setpoint DO Output Modes: Weight Limit DO Alarm Mode, Weight Increment DO Output Mode, Weight Decrement DO Output Mode and Weight Section DO Output Mode.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.
  • 6+8 Red LED digital tubes for English character and digit display.
  • English keypad for Menu&Shortcut mode operation with key tone.
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • Max. Connection Quantity: 4 Loadcells (350Ω).
  • Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
  • Load Calibration and Data Calibration available.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • 6 Normally open switch inputs [DI] and 5 normally open relay switches output [4 ‘Weight Setpoint’ DOs and 1 ‘Non-load Zero Range’ DO].
  • 1 Optional and definable analog signal output [AO: 4~20mA].
  • 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
  • With the multitasking mode, the processes of weighing, setpoint output and signal transmission will not be interrupted by parameter setting and the other operations.

Pictures

Panel Mounted Led Weighing Controller With Dc24v Power And Digital Input

Panel Mounted Led Weighing Controller With Dc24v Power And Digital Input

Panel Mounted Led Weighing Controller With Dc24v Power And Digital Input

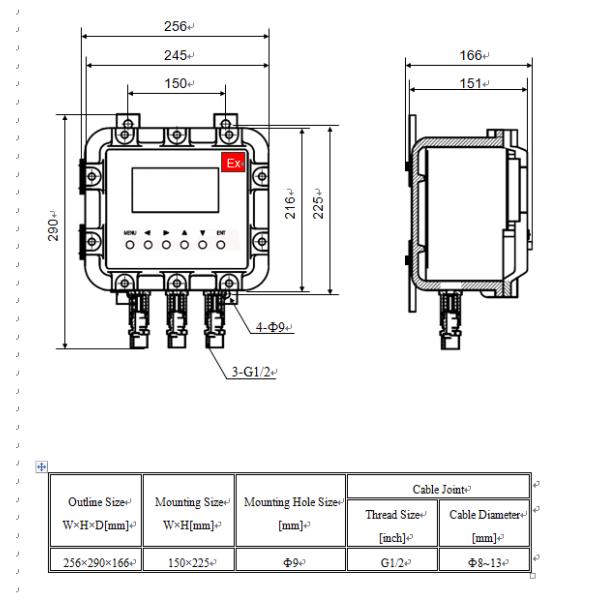

Model Explosion-proof Installation

Panel Mounted Led Weighing Controller With Dc24v Power And Digital Input

Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.

Menu Operation
Key Name Description
【MENU】

Enter Main Menu.

Exit.
【ENT】 Enter / Save / Alarm Acknowledge.
【◄】

Cursor shifts left.

Display the previous option.
【►】

Cursor shifts left.

Display the next option.
【▲】

Display the next interface or option.

Digit input: +1 ( 0~9 loop).
【▼】

Display the previous interface or option.

Digit input: -1 ( 0~9 loop).
Quick Operation

【MENU】

【Ñ】

*
  • Key-locking.
  • Key-unlocking.

【◄】

(【SET】)

 Setpoint parameters setting.

【◄】

【ZERO】

【→0←】

*
  • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.

【▲】

【TARE】

【→T←】

*
  • [≡tArE≡]: Manual Tare without Power-down Protection.
  • [-PStr-]: Preset Tare Weight with Power-down Protection.
  • [-rStr-]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.

【ENT】

【G/N】

 Gross Weight / Net Weight display switch.

*: Keep the key pressed for 2 seconds.

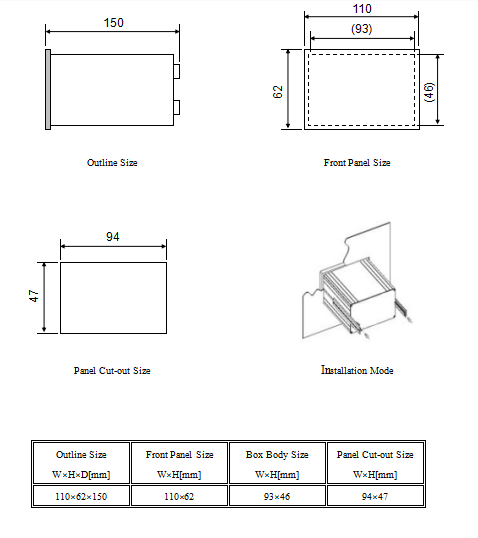

Model Panel-mounting Installation

Panel Mounted Led Weighing Controller With Dc24v Power And Digital Input
