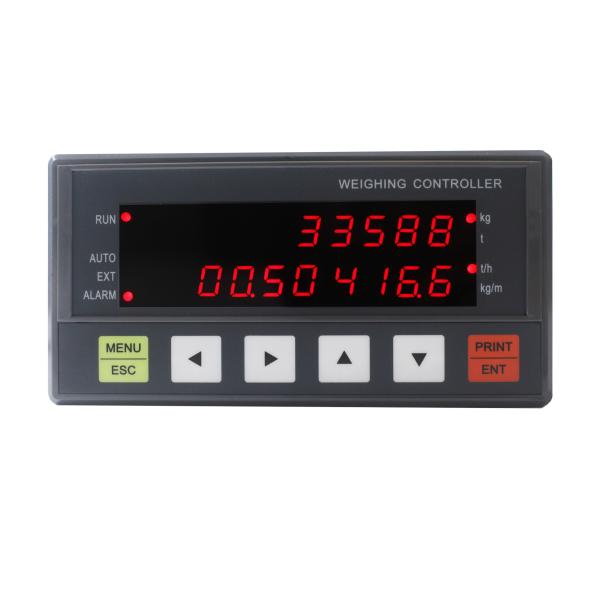

Build In Flow Set Analog Output Belt Scale Controller Weighing Indicator
Build In Flow Set Analog Output Belt Scale Controller Weighing Indicator
Specifications
Brand Name :
Supmeter
Model Number :
BST100-B11
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
10000pcs/month
Delivery Time :
3workdays
Packaging Details :
one pc per carton
Power supply :
AC220V
Protection Level :
IP65
Accuracy Grade :
0.5
Max. Connection number of Loadcell :
8 Loadcells (350Ω)
Communication Port :
COM1:Optional RS232/RS485/RS422/ Profibu-DP/Ethernet; COM2:RS485
Description

Build In Flow Set Analog Output Weighing Indicator With Rs232 Or Rs485 Communication

Technical Specification

  • Power Supply: AC220V±15%, 50/60Hz, Max. 15W.
  • Loadcell Excitation Voltage/Current: DC10V/250mA.
  • 8 Loadcells[350Ω] connectable.
  • Weighing Signal Input Range: 0~25mV.
  • Speed Sensor Excitation Voltage/Current: DC12V/100mA.
  • Speed Signal Input Range: 0.5~3000Hz.
  • 3 Normally Open Switch Inputs [DI].
  • 4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
  • 1 ‘Totalized Weight’ Pulse Output [PO]: DC5~24V, 100mA.
  • 2 ‘PID Control’ Analog Output [AO]: 4~20mA, 0.05%FS.
  • 1 ‘Flow Set’ Analog Input [AI]: 4~20mA, 0.05%FS.
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
  • COM2: RS232.
  • Connect Host IPC, Remote Display, Printer&Wireless Module.
  • Outline Size [W×H×D]: 164 × 82 × 188 mm.
  • Panel Cut-out Size [W×H]: 153 × 77 mm.
  • Operating Temperature: -25℃～+45℃.
  • Protection Level of Front Panel: IP65.
  • Accuracy Grade: 0.5.
  • Accuracy of Flow Control: 0.5%~1.0%.

Build In Flow Set Analog Output Belt Scale Controller Weighing Indicator

Model Panel-mounting / Wall-mounting Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.

Menu Operation
Key Name Description

【MENU】

【ESC】

Enter Main Menu.

Exit.
【ENT】

Enter.

Save.
【◄】 Cursor shifts left.
【►】 Cursor shifts right.
【▲】

Cursor shifts up.

Display the previous interface or option.

Digit input: +1.
【▼】

Cursor shifts down.

Display the next interface or option.

Digit input: -1.
Quick Operation

【MENU】*

(【LOCK】)
  • Key-locking.
  • Key-unlocking.

【◄】

(【ADJ+】)

 Control Current +1mA.

【►】

(【ADJ-】)

 Control Current -1mA.

【◄】*

(【AUTO】)

 ‘Manual/Auto’ Control Mode Selection.

【►】*

(【EXT】)

 ‘Internal/External’ Flow Set Mode Selection.

【PRINT】

(【ENT】)

 Print

*: Keep the key pressed for 2 seconds.

Build In Flow Set Analog Output Belt Scale Controller Weighing Indicator

Model Panel-mounting Terminal

Build In Flow Set Analog Output Belt Scale Controller Weighing Indicator

Ration Flow Auto-Feeding System:

Build In Flow Set Analog Output Belt Scale Controller Weighing Indicator
