Touch Screen Checkweigher Load Cell Controller
Touch Screen Checkweigher Load Cell Controller
Touch Screen Checkweigher Load Cell Controller
Touch Screen Checkweigher Load Cell Controller
Touch Screen Checkweigher Load Cell Controller
Touch Screen Checkweigher Load Cell Controller
Touch Screen Checkweigher Load Cell Controller
Touch Screen Checkweigher Load Cell Controller
Touch Screen Checkweigher Load Cell Controller
Touch Screen Checkweigher Load Cell Controller
Specifications
Brand Name :
Supmeter
Model Number :
BST106-M10[CK]
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
1pcs/box
Power Supply :
DC24V
Max. Connect :
16Loadcells[350Ω]
Input :
7DIs
Output :
18DOs
COM@COM1 :
RS232
COM2 :
RS485
Description

touch screen Checkweigher Controller For Weight Sorting Mode With 3-12 Sorts

Main Features:

  • EMC design with high anti-jam for industrial environment.
  • DC24V power input with reverse polarity protection.
  • Cortex-A8 CPU with 600MHz Clock, 128M Flash.
  • 7” [800×480] or 10.2” [1024×600] TFT touch panel.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 800Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Auto Zero Tracking.
  • Static Calibration and Dynamic Compensation.
  • Dynamic/Static Weight-checking Mode.
  • Unchecked product identification by photo-electric switch.
  • Feed-stopper Control.
  • Conveyor PWM/AO Speed Regulation.
  • Definable DI/DO/AO/COM[Communication Port].
  • Recipe Number: 100.

Technical Specification:

Power Supply DC24V±20%,Max.10w.
Display HMI
Sampling Frequency 600Hz
A/D Convert 24-bit
LAN Optional Ethernet
USB1 Connect mouse, software download, data backup
Max. Connection number of Loadcell

16Loadcells (350Ω)
DI 7 Normally Open Switch Inputs
DO 18 Normally Open Transistor Switch Outputs
AO 4Analog Signal Output: 4~20mA.
Operating Temperature -25℃~+45℃
Verification Accuracy 0.02%
Dynamic Weight-checking Accuracy 0.2%~0.5%

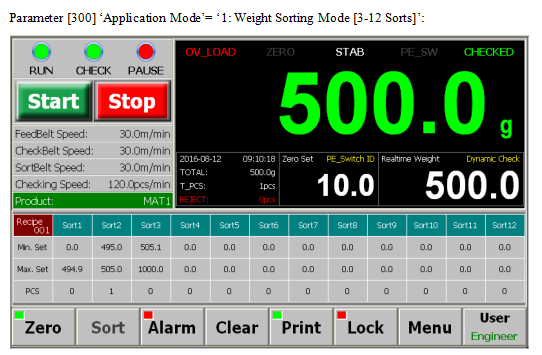

Main Operation Interface

Touch Screen Checkweigher Load Cell Controller

Touch Screen Checkweigher Load Cell Controller

Button Operation

Name Operation State Indicator Authorization
【Start】

Start.

‘Stop’ state: Start the conveyors and enter the weight-checking running state.

‘Pause’ state: Recover Running.

 All Users
【Stop】 Stop.
【Zero】

Zero Fine Adjustment.

[No Power-down Protection]

 Flashing green.
【Sort】

‘Sorting Area Quantity’ [3-12] Selection.

Only used for Weight Sorting Mode.

 Administrator
【Alarm】 Alarm Query / Clear Alarm. Red: Alarm state. All Users
【Clear】 Clear Screen: Clear the display values of Checking Weight, Batch Count and Totalized Weight.

Engineer

Administrator
【Print】

Report Print:

  • [ Auto Print]: Print Batch Records.
  • [Total]: Print Totalizing Report.
  • [Recipe]: Print Present Working Recipe.
 All Users
【Lock】

Screen-locking: Locking/unlocking the operating buttons of main display interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.
【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.

Data Display & Quick Setting

Name Description Authorization
Biggest Digits Checking Weight of the present batch [Weight Unit].
Bigger Digits Uncompensated Real-time Weight Value.
[Date/Time] Date/Time.
[TOTAL] Total Totalized Weight.
[T_PCS] Total Batch Count.
[ REJECT ] Batch Count of Rejected Products.
[Zero Set] ‘Non-load Zero Range’ Setting.

Engineer

Administrator
[Dynamic Check]

Dynamic Weight-checking Mode.

Refer to parameter [301] ‘Weight-checking Mode’.
[Static Check]

Static Weight-checking Mode.

Refer to parameter [301] ‘Weight-checking Mode’.
[PE_Switch ID] Switch Triggering Mode. Refer to parameter [302] ‘Non-load Zero Range’ and ‘6.5.2 DI Assignment’.
[Weight Trigger] Weight Triggering Mode. Refer to parameter [302] ‘Non-load Zero Range’ and ‘6.5.2 DI Assignment’.
[RUN] Running state.
[CHECK] Weight-checking state.
[PAUSE] Conveyors pause after weight-checking.
[OV_LOAD] Overload Alarm.
[ZERO] Weight ≤ Non-load Zero Range.
[STAB] Weight is stable.
[PE_SW] DI switch ‘Photo-electric Identification’ turned on.
[CHECKED] Weigh-checking process of the present batch Ended.
[Product] Product Name.
[FeedBelt Speed] ‘Feeding Conveyor Speed’ Setting [m/min].

Engineer

Administrator
[CheckBelt Speed] ‘Checking Conveyor Speed’ Setting [m/min].
[SortBelt Speed] ‘Sorting Conveyor Speed’ Setting [m/min].
[Checking Speed] Checking Speed [pcs/min] display and Reset.
Recipe Table ‘Recipe Parameters’ Setting.
[PCS] Batch Count.

TFT-Touch Auto Checkweigher Controller For Weight Sorting Mode with 3-12 Sorts

Touch Screen Checkweigher Load Cell Controller

Outline Size

Touch Screen Checkweigher Load Cell Controller

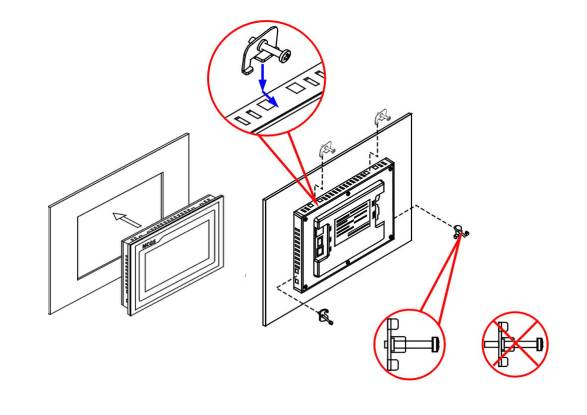

Installation Mode

Touch Screen Checkweigher Load Cell Controller

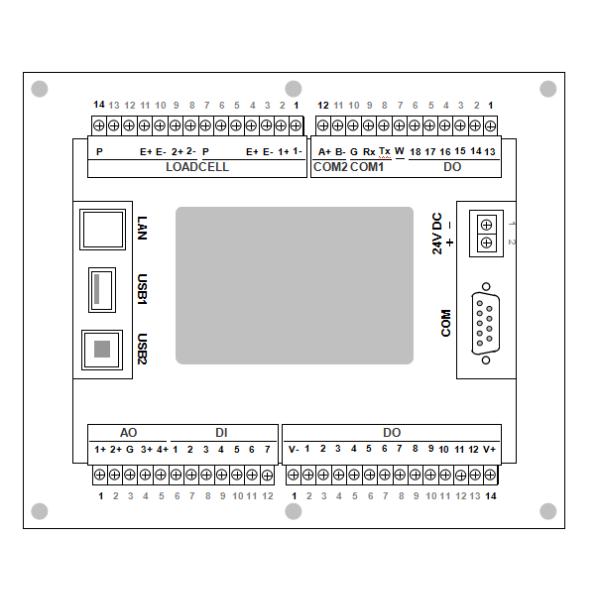

Terminal Diagram

Touch Screen Checkweigher Load Cell Controller

System Diagram:

Touch Screen Checkweigher Load Cell Controller
