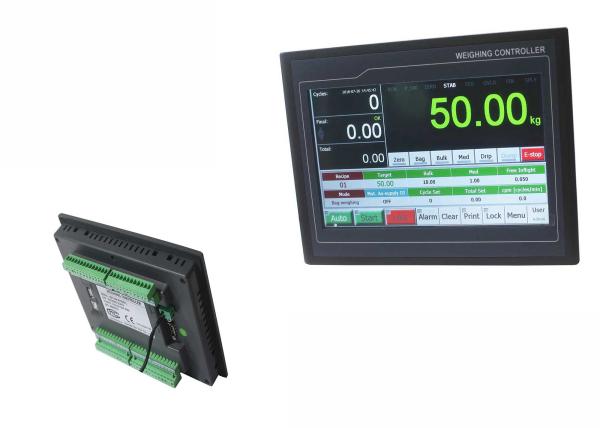

Auto Zero Tracking Weighing Scale Indicator , Touch Screen Controller I/O Interface For Single Packing Scale

Specifications

Brand Name :

Supmeter

Model Number :

BST106-M10(AL)

Certification :

Place of Origin :

China

MOQ :

1pcs

Price :

Negotiation

Payment Terms :

T/T, Western Union

Supply Ability :

10000pcs per month

Delivery Time :

3-10 working days

Packaging Details :

1pcs/box

Power Supply :

DC24V

Max. Connect :

16Loadcells[350Ω]

Input :

9DIs

Output :

18DOs

COM&COM1 :

RS232

COM2 :

RS485

Description

Auto Zero Tracking Weighing Scale Indicator , Touch Screen Controller I/O Interface

Main Features:

EMC design with high anti-jam for industrial environment.
DC24V power input with reverse polarity protection
Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
7”[800x480] or10.2” [1024x600] TFT touch panel
24-bit ∑-△ADC with internal resolution 1/1,000,000

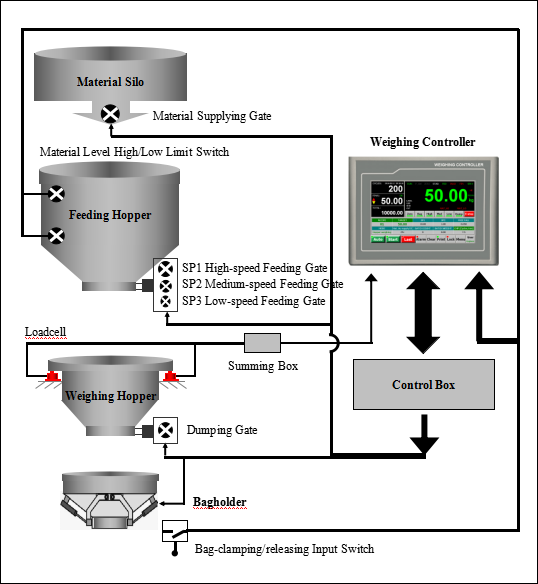

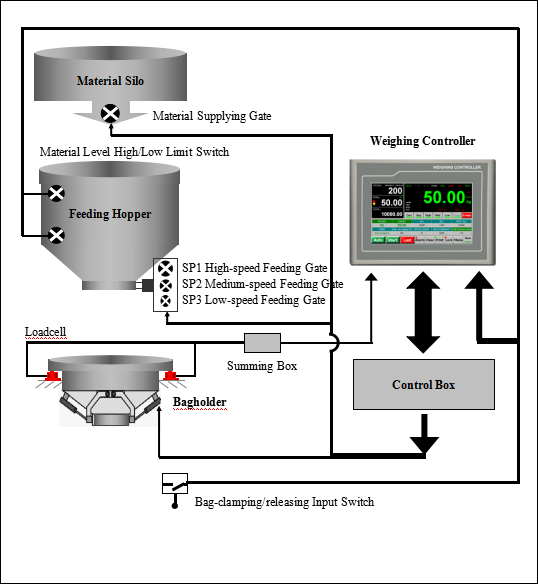

High sampling frequency 800Hzer Packing] and Respective[Single-hopper Packing].
Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
Auto Zero Tracking
Fall Value Auto Correction.
Auto Pause for Deviation Alarm.
Auto Re-feed for Negative Deviation Alarm.
Target Batch Count & Target Batch Weight Control.
Definable DI/DO/AO/COM[Communication Port].
3-speed[high/medium/low] feeding control by DOs or AOs.
Recipe Number: 100

Technical Specification:

Power Supply: DC24V±20%, Max. 10W.
Loadcell Excitation Voltage/Current: DC5V/250mA.
16 Loadcells[350Ω] connectable.
Weighing Signal Input Range: 0~12.5mV.
9 Normally Open Switch Inputs [DI].
18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
2 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
COM&COM1: RS232; COM2: RS485.
USB1: Connect mouse, software download, data backup.
LAN: Optional Ethernet.
Outline Size [W×H×D]
7”: 226.5 × 163 × 36 mm.
10.2”: 274 × 193 × 40 mm.
Panel Cut-out Size [W×H]

7”: 215 × 152 mm.
10.2”: 261 × 180 mm.

Operating Temperature: -25℃～+45℃.
Protection Level of Front Panel: IP65.
Accuracy Grade: III.
Verification Accuracy: 0.02%.
Static Weighing Accuracy: 0.2%~0.5%.
Packing Accuracy: 0.2%~0.5%

Button Operation

Name	Operation	State Indicator	Authorization
【Auto】	Auto / Manual [Emergency Stop] switch.	Green: Auto state. Grey: Manual state.	All Users
【Start】	Start.	Green: Running state. Grey: Stop state.
【Re-run】	Clear Alarm & Recover Running.
【Last】	Last Batch [Normal Stop]. Stop after the present batch finished.	Flashing Red.
【E-Stop】	Emergency Stop.
【Alarm】	Alarm Query / Clear Alarm. ‘Auto/Pause’ state: Recover Running after clearing alarm.	Red: Alarm state.
【Print】	Report Print: [ Auto Print]: Print Batch Records. [Total]: Print Totalizing Report. [Recipe]: Print Working Recipe.
【Lock】	Screen-locking: Locking/unlocking the operating buttons of main display interface. Auto Screen-locking: Refer to parameter [901].	Flashing Red: Locked. Grey: Unlocked.
【Menu】	Enter Main Menu.
【User】	User Login. Display: Operator / Engineer / Admin.
【Zero】	Zero Fine Adjustment [No Power-down Protection].	Flashing green.
【Bag】	Bag-clamp/release Request.	Green: Bag-clamping state. Grey: Bag-releasing state.
【High】	Manual Start/Stop High-speed Feeding.	Green: Working state.
【Med】	Manual Start/Stop Medium-Speed Feeding.
【Low】	Manual Start/Stop Low-speed Feeding.
【Dump】	Manual Start/Stop Dumping.
【Clear】	Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Packing Speed.		Engineer Administrator
