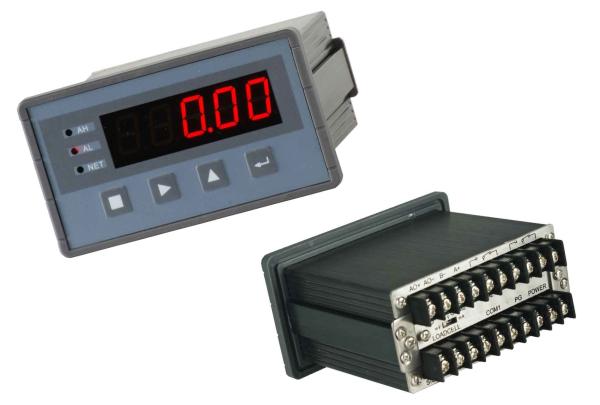

Force Sensor Measurement Weighing Indicator Controller With 2 Setpoint DO Output
Force Sensor Measurement Weighing Indicator Controller With 2 Setpoint DO Output
Force Sensor Measurement Weighing Indicator Controller With 2 Setpoint DO Output
Force Sensor Measurement Weighing Indicator Controller With 2 Setpoint DO Output
Force Sensor Measurement Weighing Indicator Controller With 2 Setpoint DO Output
Force Sensor Measurement Weighing Indicator Controller With 2 Setpoint DO Output
Specifications
Brand Name :
SUPMETER
Model Number :
BST106-B60S[L]
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
10-30 working days after got the payment
Packaging Details :
1pcs/box
Power Supply :
DC24V±20%
Accuracy Grade :
III
Verification Accuracy :
0.03%
Static Force Measuring Accuracy :
0.2%~0.5%
Description

Main Applications:

  • Weight/Force Display.
  • Peak Value Detection / Display Holding.
  • Weight/Force Signal AO/Digit Transmission.
  • Setpoint DO Output.
  • Weight/Force Limit DO Alarm Mode.
  • Weight/Force Increment DO Output Mode.
  • Weight/Force Decrement DO Output Mode.
  • Weight/Force Section DO Output Mode.

Main Features:

  • EMC design with high anti-jam for industrial environment.
  • DC24V power input with reverse polarity protection.
  • 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
  • 5 Red LED digital tubes for English&digit display.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 1280Hz.
  • Optional Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Auto Zero Tracking.
  • Load Calibration, Data Calibration & Segmenting Correction.
  • Definable AO/COM[Communication Port].

Technich Specification:

Display and Keypad
Display 5 Red LED digital tubes for English character and digit display.
Keypad 4-key keypad for shortcut operation
Loadcell Interface
Excitation Voltage/Max. Current 1 DC5V/120mA [4-350Ω loadcells]
Excitation Voltage / Max. Current 2 DC12V/100mA for weighing transmitter
[mV]Signal Input Range 0~19.5mV [Output Sensitivity of Loadcell: 1.0~3.5mV/V]
[V]Signal Input Range 0~2.5V, 0~5V, 0~10V
[mA]Signal Input Range 0~20mA
Sampling Frequency 1280Hz
Internal resolution 1/1,000,000
Switch Signal Interface
DO 2 Relay switches with normally open and normally closed contacts for outputting upper limit and lower limit alarm signals
Contact Capacity of Relay Switch AC250V/DC24V, 1A
AO 0~20mA
Digital Communication Interface
COM1 RS232
COM2 RS485
Connectable Host IPC/PLC and LED Remote Display
IP Grade IP65

Operation Interface Diagram

Force Sensor Measurement Weighing Indicator Controller With 2 Setpoint DO Output

Demension:

Force Sensor Measurement Weighing Indicator Controller With 2 Setpoint DO Output

Outline Size

W×H×D [mm]

Front Panel Size

W×H [mm]

Box Body Size

W×H [mm]

Panel Cut-out Size

W×H [mm]
107×60×100 107×60 93×46 94×47

Package:

Force Sensor Measurement Weighing Indicator Controller With 2 Setpoint DO Output

Force Sensor Measurement Weighing Indicator Controller With 2 Setpoint DO Output

FAQ:

1. How to get sample?

Please send us detail delivery address and your express account, we will arrange the delivery ASAP.

2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.

4.When will you arrange the production?

We will arrange the production immediately after receiving your payment.

5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.

6. How long is the warranty period?

The warranty period for our products is 12 (twelve) months.

If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.

(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
