Specifications
Brand Name :
Supmeter
Model Number :
BST106-B11
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
6000pcs/month
Delivery Time :
3workdays
Packaging Details :
carton
Power supply :
DC24V
Material :
Steel
Static Weighing Accuracy :
0.2%∼0.5%
Verification Accuracy :
III
Output :
4 Normally Open Transistor Switch Outputs
Input :
3 Normally Open Switch Inputs
Description

VFD Display Material Level Weighing Digital Scale Indicator With RS485 And RS232

Main Application:
Material Level Scale, Hopper Scale&Platform Scale
Weight Limit DO Alarm Mode
Weight Increment/Decrement DO Output Mode


Main Features:
1: Auto Zero Tracking
2: Load Calibration&Data Calibration
3: The Weighing Record can be printed
4: Definable AO/COM[Communication Port]

Technical Specifications:

Power Supply AC220v
Display 6 VFD Digital Tubes for English and Digit Display
Sampling Frequency 200Hz
A/D Convert 24-bit
Keypad 6 keys for Menu&Shortcut mode operation with key tone
Excitation Voltage Output of Loadcell DC10V
Max. Connection number of Loadcell 8 Loadcells (350Ω)
DI 3 Normally Open Switch Inputs
DO 4 Normally Open Transistor Switch Outputs
AO 1 Optional and Definable Analog Signal Output: 4~20mA.
Communication Port

COM1:Fixed RS232&RS485,Free to use one of them;
COM2:Optional RS232/RS485/RS422/Profibus-DP/Ethernet
Outline Dimension 170× 91 × 184 mm (W×H×D)
Net Weight Approx. 2kg
IP Grade IP65
Verification Accuracy 0.02%
Static Weighing Accuracy 0.2%-0.5%



Keypad Operation
If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.

Menu Operation
Key Name Description

【MENU】
【ESC】
(【LOCK】)

Enter Main Menu.

Exit.

Keep it pressed for 2 seconds: Key-locking / Key-unlocking.
【ENT】 Enter/Save/Alarm Acknowledge.
【◄】 Cursor shifts left.
【►】 Cursor shifts right.
【▲】

Display the previous option.
Digit input: +1.
【▼】

Display the next option.
Digit input: -1.
Quick Operation
【G/N】 APL0 Hopper Weighing Mode: Gross Weight / Net Weight display switch.

APL1 Ration Feeding/Batching Mode: Gross Weight / Net Weight / Feeding Weight display Switch.

  • [A./b./c.]: Feeding Weight of Material M1/M2/M3.
  • [t.]: Total Feeding Weight.
【ZERO】
  • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.
【TARE】
  • [≡tArE≡]: Manual Tare without Power-down Protection.
  • [-PStr-]: Preset Tare Weight with Power-down Protection.
  • [-rStr-]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.
【CAL】
  • [-LoAd-]: Load Calibration.
【▲】【▼】* * Keep it pressed for 2 seconds: Setpoint parameters setting.
【PRINT】 Print Weighing/Batching Report.

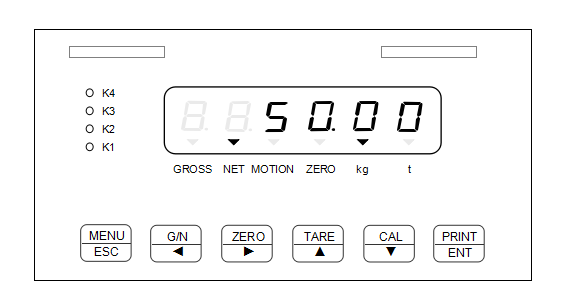

LED Panel-mounting Operation Interface:
Level Weighing Digital Scale Indicator VFD Display Material With RS485 And RS232

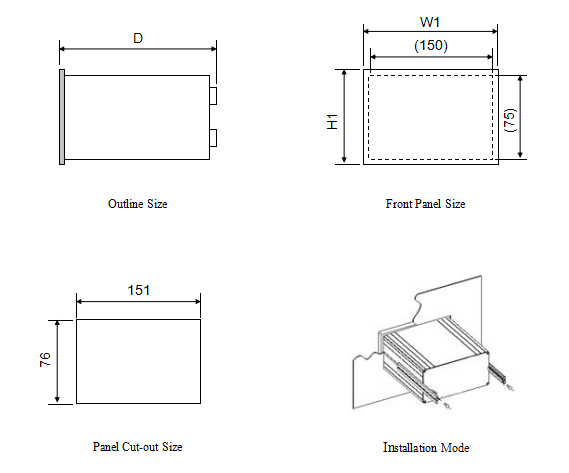

Panel-mounting Installation: Level Weighing Digital Scale Indicator VFD Display Material With RS485 And RS232


Package:
Level Weighing Digital Scale Indicator VFD Display Material With RS485 And RS232
