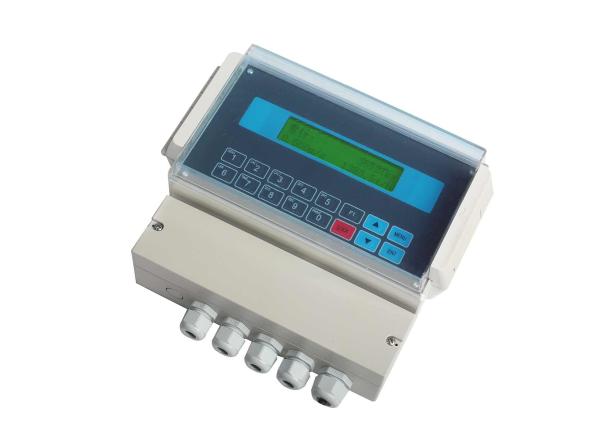

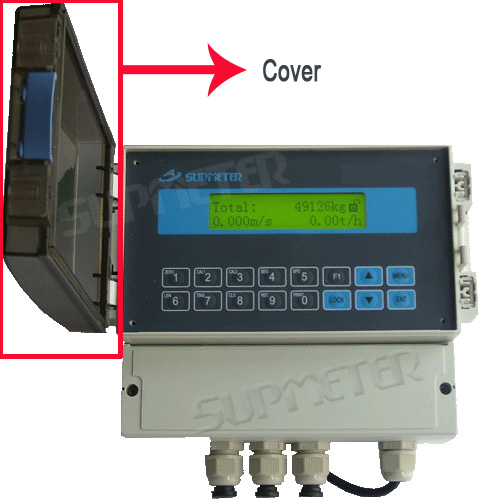

Corrosion-proof LCD Belt Scale Controller For Belt Weigher With Weight Totalizing

BST100-D52 is widely used on belt weigher, with the function of weighing.

Main Applications

• Belt Weigher with Weight Totalizing.
• Suitable for corrosive gas environment.

Pictures

Main Features

• EMC design with high anti-jam for industrial environment.
• 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
• 160×32 LCD display screen with yellow-green background.
• 24-bit ∑-△ADC with internal resolution 1/1,000,000.
• High sampling frequency 400Hz.
• Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
• External Speed’ or ‘Inner Speed’ working modes.
• Zero Calibration & Auto Zero Tracking.
• Span Calibration & Segmenting Correction.
• Speed Calibration & Belt Length Calibration.
• Queryable Records per shift/day/month of a year.
• Definable COM[Communication Port].

Technical Specifications:

• Technical Specifications
•  Power Supply: AC220V±15%, 50/60Hz, Max. 10W.
•  Loadcell Excitation Voltage/Current: DC10V/250mA.
•  8 Loadcells[350Ω] connectable.
•  Weighing Signal Input Range: 0~25mV.
•  Speed Sensor Excitation Voltage/Current: DC12V/100mA.
•  Speed Signal Input Range: 0.5~3000Hz.
•  COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
•  COM2: RS232.
•  Connect Host IPC, Remote Display, Printer&Wireless Module.
•  Optional 4~20mA Analog Output [AO] Module by COM1.
•  Outline Size [W×H×D]: 235.5 × 227.5 × 119.5 mm.
•  Operating Temperature: -25℃～+45℃.
•  Protection Level: IP65.
•  Accuracy Grade: 0.5.
• Broad-range speed pulse input circuit.
   Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
   Max. Connection Quantity: 8 Loadcells (350Ω).
   Auto-locking, Key-locking, Key-unlocking and Digital Setting&Calibration functions available.
   Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
   Optional AO [4~20mA] module for Flow signal output (COM1 port will be occupied).
   2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
   Corrosion-proof, water-proof, dust-proof and shock-proof shell for model wall-mounting.
   Weight Records per shift/day/month of a year can be queried and printed.
   With the multitasking mode, the weighing process will not be interrupted by parameter setting and the other operations.
•
