Specifications
Brand Name :
Supmeter
Model Number :
BST106-F11
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
10000pcs/month
Delivery Time :
3 work days
Packaging Details :
carton
Power supply :
AC85-264V
Material :
Steel
Verfication Accuracy :
0.02%
Verification Accuracy :
III
Max. Connection number of Loadcell :
8 Loadcells (350Ω)
Communication Port :
COM1:RS232; COM2:Optional RS232/RS485/RS422/Profibu-DP/Ethernet
Description

Weighing And Totalizing Controller For Weight Signal AO / Digit Transmission

Main Application:

Weight Display,Setpoint DO output, Manual Totalizing

Weight Signal AO/Digit Transmission

Weight Limit DO alarm Mode

Weight Increment/Dcrement DO output Mode

Weight Section DO output Mode

Main Features:

1:32-bit ARM CPU with 72MHz clock and high arithmetic speed.

2: Auto Zero Tracking

3: Load Calibration, Data Calibration & Segmenting Correction

4: Definable AO/COM[Communication Port]

Technical Specifications:

Power Supply AC85-264v
Display 6+10 Green VFD Digital Tubes for English&Digit Display
Sampling Frequency 400Hz
A/D Convert 24-bit
Keypad 8 keys for Menu&Shortcut mode operation with key tone
Excitation Voltage Output of Loadcell DC10V
Max. Connection number of Loadcell 8 Loadcells (350Ω)
DI 3 Normally Open Switch Inputs
DO 5 Normally Open Transistor Switch Outputs
AO 1Analog Signal Output: 4~20mA.
Communication Port

COM1:FixedRS232&RS485;

COM2:Optional RS232/RS485/RS422/Profibu-DP/Ethernet
Outline Dimension 164 × 82 × 188 mm (W×H×D)
Net Weight Approx. 2kg
IP Grade IP65
Accuracy of Flow Control 0.2%~0.5%
Operatiing Temperature -25℃~+45℃

Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.

Menu Operation
Key Name Description
【MENU】 Enter Main Menu / Exit.
【ENT】 Enter / Save / Alarm Acknowledge.
【◄】 Cursor shifts left.
【►】 Cursor shifts right.
【▲】

Display the previous interface or option.

Digit input: +1.
【▼】

Display the next interface or option.

Digit input: -1.
Quick Operation

【Ñ】

*
  • Key-locking.
  • Key-unlocking.
【SET】 Setpoint parameters setting.
【G/N】 Gross Weight / Net Weight display switch.
【F1】 Cancel Totalizing.

【→C←】

【CAL】

*

 Load Calibration.

【→0←】

【ZERO】

*
  • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.

【→T←】

【TARE】

*
  • [≡tArE≡]: Manual Tare without Power-down Protection.
  • [-PStr-]: Preset Tare Weight with Power-down Protection.
  • [-rStr-]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.
【,】* Unused.
【/】* Clear Screen: Clear the display value of Net Weight of Present Batch, Totalized Net Weight and Batch Count.
【‡】* Time display and setting.
【±】 ‘+’/‘－’ switch.
【6】
  • [bAt.tAb]: Print Present Weight Record.
  • [tot.tAb]: Print Totalizing Report.
【∑】 Manual Totalizing: Net Weight Totalizing and Batch Counting.

*: Keep the key pressed for 2 seconds.

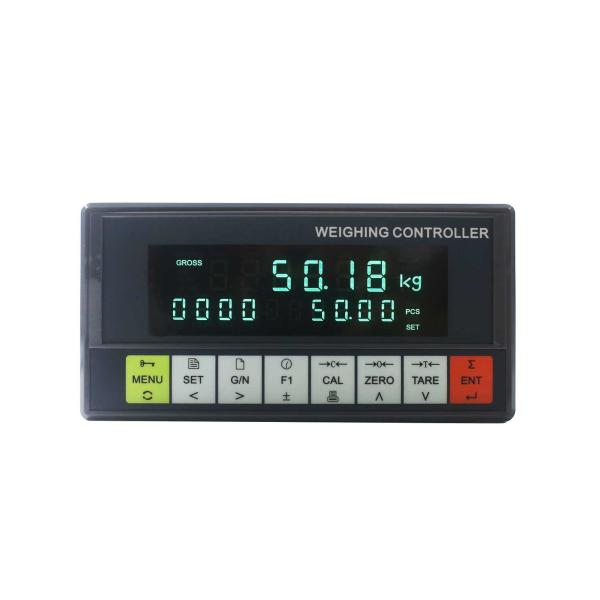

Model Panel-mounting Operation Interface:

AC85-264V Digital Scale Indicator For Weight Signal AO / Digital Transmission

Installation:

AC85-264V Digital Scale Indicator For Weight Signal AO / Digital Transmission

Model AC85~264V/AC220V Terminal:

AC85-264V Digital Scale Indicator For Weight Signal AO / Digital Transmission

Package:

AC85-264V Digital Scale Indicator For Weight Signal AO / Digital Transmission
