Standard Rs232 And Rs485 Belt Weigher With Weight Totalizing Lcd Display
Standard Rs232 And Rs485 Belt Weigher With Weight Totalizing Lcd Display
Specifications
Brand Name :
Supmeter
Model Number :
BST100-E81
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500pcs per month
Delivery Time :
3-10 working days
Packaging Details :
1pcs/box
Power Supplier :
DC24V
DO :
4
Display :
LCD
name :
Standard Rs232 And Rs485 Belt Weigher With Weight Totalizing Lcd Display
Description

Standard Rs232 And Rs485 Belt Weigher With Weight Totalizing With Lcd Display

Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.

Menu Operation
Key Name Description
【MENU】
(【ESC】)

Enter Main Menu.

Exit.
【ENT】 Enter/Save.
【▲】

Cursor shifts up or left.

Display the previous interface or option.
【▼】

Cursor shifts down or right.

Display the next interface or option.
【0~9】 Digit Input.
Quick Operation
【LOCK】
  • Key-locking.
  • Key-unlocking.
【F1】 Return to the initial display interface.
【SET】 Flow Set Value Setting.
【ADJ-】 Control Current -1mA.
【ADJ+】 Control Current +1mA.
【AUTO】 ‘Manual/Auto’ Control Mode Selection.
【EXT】 ‘Internal/External’ Flow Set Mode Selection.
【ZERO】 Zero Calibration.
【CAL】 Dynamic Span Calibration.
【CLS】 Clear Screen: Clear display value of Totalized Weight.
【REC】 Query and print Weight Record.
【PRINT】 Print.

Standard Rs232 And Rs485 Belt Weigher With Weight Totalizing Lcd Display

Technical Specification

  • Executing Standard
  • CMC GB/T 7724-2008PRC National Standard.

² OMIL R50:1997International Recommendation.

² Accuracy Grade: 0.5.

² Accuracy of Flow Control: 0.5%~1.0%.

  • Display
  • 128×64 LCD display screen with 7 background colors for English display.
  • Display Refreshing Time: Setting Range 0.1~2.0s.
  • Kaypad
  • 16-key English keypad.
  • Menu&Shortcut operation with key tone.
  • Loadcell Interface
  • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
  • Signal Input Range: 0~25mV.
  • ∑-△ADC: 24-bit, 100,000 internal code used.
  • Sampling Frequency: 200Hz.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Speed Sensor Interface
  • Output Voltage/Max. Current: DC12V/100mA.
  • Speed Pulse Input Range: 0.5~3000Hz.
  • Switch Signal Interface
  • 3 Normally Open Switch Inputs [DI].
  • 4 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
  • 1 ‘Totalized Weight High-speed Pulse’ Output [PO]: 100mA, DC5~24V; Weight per Pulse and Pulse Width can be preset.
  • Analog Signal Interface
  • Max.3 Definable ‘Flow/Control Current /…’ Analog Signal Outputs [AO]: 4~20mA, Non-linearity: 0.05%FS; AO3 is optional.
  • 1 Optional ‘Flow Setpoint’ Analog Signal Input [AI]: 4~20mA, Non-linearity: 0.05%FS.

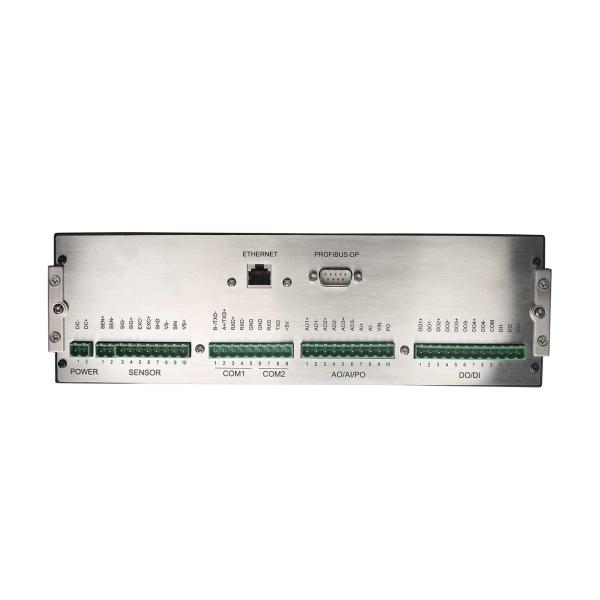

  • Digital Communication Interface
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
  • COM2: RS232.
  • Connectable: IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • Report Print
  • Weight Records per shift/day/month of a year can be queried and printed.
  • Operating Specification
  • Operating Voltage: DC24±20%.
  • Max. Power Consumption: 10W.

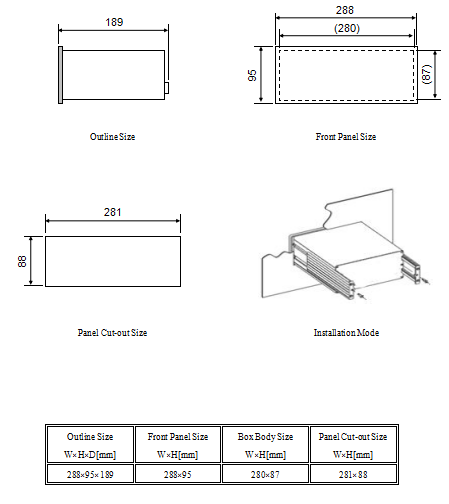

  • Outline Size: 288×95×189mm [W×H×D].
  • Panel Cut-out Size: 281×88mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Protection Level of Front Panel: IP65.
  • Weight: Approx. 1.4kg.


Pictures


Standard Rs232 And Rs485 Belt Weigher With Weight Totalizing Lcd Display


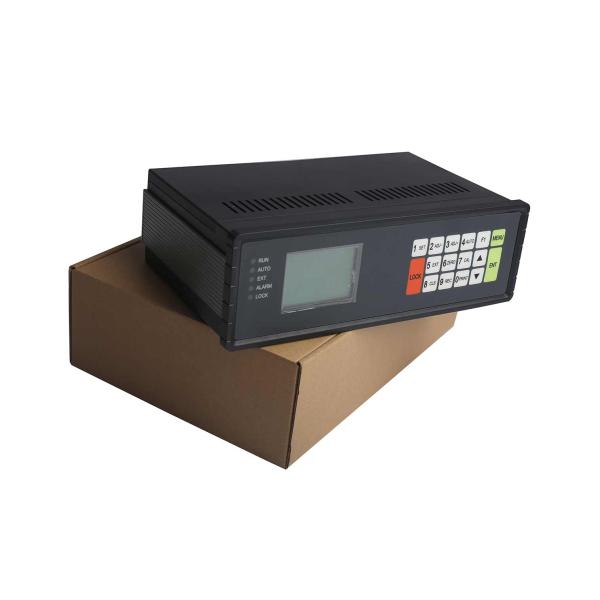

Operation Interface Diagram

State Indication

LED Lamp Description
[RUN]

ON: Weighing state.
OFF: Stopping state.
[AUTO]

Feeding control mode:
ON: Auto [PID].
OFF: Manual.
[EXT]

Flow Set Mode:
ON: External [AI: 4~20mA].
OFF: Internal.
[ALARM] Alarm.
[LOCK]

ON: Key-locked.
OFF: Key-unlocked.


Installation
Standard Rs232 And Rs485 Belt Weigher With Weight Totalizing Lcd Display

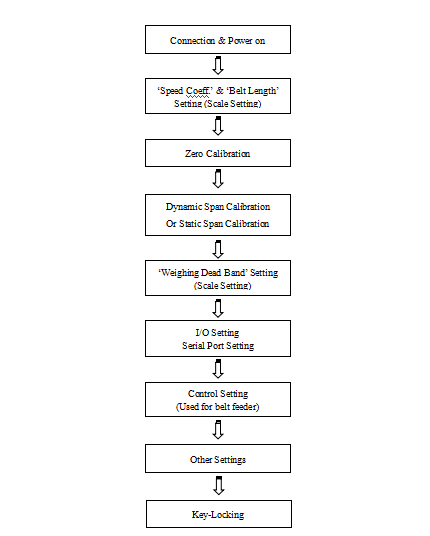

Operation Procedure
Standard Rs232 And Rs485 Belt Weigher With Weight Totalizing Lcd Display

Ration Flow Auto-Feeding System
Standard Rs232 And Rs485 Belt Weigher With Weight Totalizing Lcd Display
