Digital Transmitter Weight Module With RS485 RS232 Modbus RTU Connect With Load Cell
Digital Transmitter Weight Module With RS485 RS232 Modbus RTU Connect With Load Cell
Digital Transmitter Weight Module With RS485 RS232 Modbus RTU Connect With Load Cell
Digital Transmitter Weight Module With RS485 RS232 Modbus RTU Connect With Load Cell
Specifications
Brand Name :
Supmeter
Model Number :
BST106-M60S(L)
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
30-50usd/pcs
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
1-3days
Packaging Details :
1pcs/box
Power supplier :
DC12~24V
Outline Size :
71.5×113×57.9mm [W×H×D]
Product name :
Guide Rail Weighing Indicator
Application :
Load cell company
Description

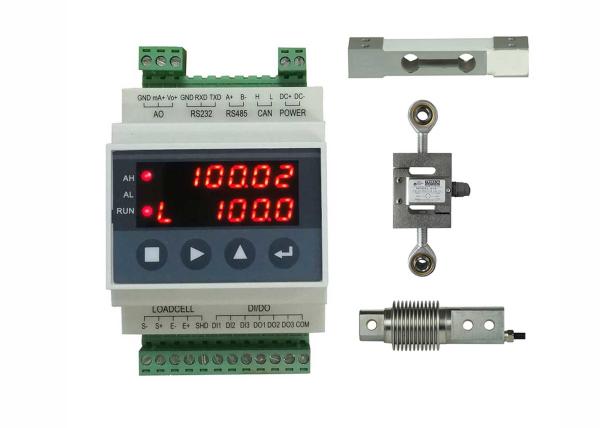

Compact Mini Weight Transmitter Weighing Indicator/Module With RS485 RS232 Modbus RTU Connect with Loadcell

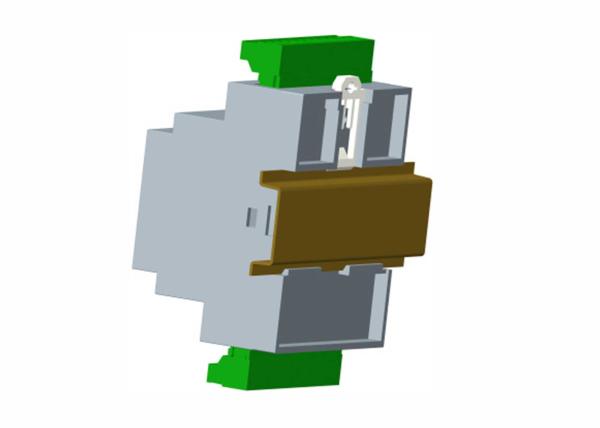

BST106-M60S[L] Guide Rail Type
Weighing / Force Measuring Control Module
Weight/Force Display, Peak Value Detection / Display Holding,
Auto Weight-checking, Setpoint DO Output, AO/Digit Transmission

Applications
Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.

Main Features:
1. Applications: Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.
2. EMC design with high anti-jamming capability, suitable for industrial environment.
3. 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
4. 6+6 Red LED digital tubes for English character and digit display.
5. 4-key English keypad for Menu&Shortcut mode operation.
6. 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and max. sampling frequency 3200Hz.

Digital Transmitter Weight Module With RS485 RS232 Modbus RTU Connect With Load Cell

Digital Transmitter Weight Module With RS485 RS232 Modbus RTU Connect With Load Cell


Technical Specifications:

Display
LED number 6+6 Red LED digital tubes for English character and digit display
Weight Display Range -9,999~+99,999
Scale Capacity Setting Range 1~99,999
Scale Division Optional 1, 2, 5, 10, 20, 50, 100, 200, 500
Display Resolution 1/50,000
Decimal Point Position Optional 0, 0.0, 0.00, 0.000, 0.0000
Display Refreshing Time Setting Range 0.01~1.00s
Keypad
4-key English keypad for Menu&Shortcut mode operation
Weighing Signal Interface
Excitation Voltage/Max. Current DC5V/120mA [8-350Ω loadcells]
Signal Input Range 0~12.5mV
Output Sensitivity of Loadcell 1.0~2.5mV/V
Optional Sampling Frequency 3200Hz, 1600Hz, 800Hz, 400Hz, 200Hz, 5Hz
Switch&Analog Signal Interface
DI 3 Optional&definable normally open switch inputs
DO 3 Optional&definable normally open transistor switch outputs
AO 0~20mA
VO 0~10V
Digital Communication Interface
COM1 RS232
COM2 Optional RS485
COM3 Optional CANBUS
Connectable Host IPC/PLC and LED Remote Display


User Interface Diagram

Digital Transmitter Weight Module With RS485 RS232 Modbus RTU Connect With Load Cell

Terminal

Digital Transmitter Weight Module With RS485 RS232 Modbus RTU Connect With Load Cell

Delivery

Digital Transmitter Weight Module With RS485 RS232 Modbus RTU Connect With Load Cell
