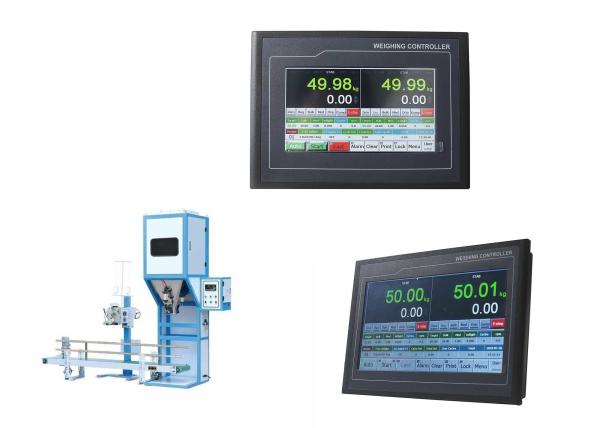

Dual Scales Bag Packaging Machine Weight Controller, With RS232 RS485 Modbus RTU
Dual Scales Bag Packaging Machine Weight Controller, With RS232 RS485 Modbus RTU
Dual Scales Bag Packaging Machine Weight Controller, With RS232 RS485 Modbus RTU
Dual Scales Bag Packaging Machine Weight Controller, With RS232 RS485 Modbus RTU
Specifications
Brand Name :
Supmeter
Model Number :
BST106-M10(BH)
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
230-315usd/pcs
Payment Terms :
T/T, L/C
Supply Ability :
500pcs/day
Delivery Time :
1-5days
Packaging Details :
1pcs/box
Application :
Single Scale Mode & Double Scale Mode
Verification Accuracy :
0.02%
Static Weighing Accuracy :
0.2%~0.5%
Packing Accuracy :
0.2%~0.5%
Description

Dual Scales Bag Packaging Machine Weight Controller, With RS232 RS485 Modbus RTU

Main Features:

1. Suitable for Ration Packing Scale with optional modes 1-Bucket Scale, 1-Bag Scale, 2-Bucket Scale[1-Bag] , 2-Bucket Scale[2-Bag] and 2-Bag Scale.

2. EMC design with high anti-jamming capability, suitable for industrial environment.

3. Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.

4. 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.

Dual Scales Bag Packaging Machine Weight Controller, With RS232 RS485 Modbus RTU

Dual Scales Bag Packaging Machine Weight Controller, With RS232 RS485 Modbus RTU

Dual Scales Bag Packaging Machine Weight Controller, With RS232 RS485 Modbus RTU

7”Touch Screen

Outline Size: 226.5×163×56mm [W×H×D].

Window Size: 153.6×86.64mm [W×H].

Box Body Size: 213×150mm [W×H].

Panel Cut-out Size: 215×152mm [W×H].

Weight: Approx. 0.72kg.

10.2” Touch Screen

Outline Size: 274×193×56mm [W×H×D].

Window Size: 220.8×132.9mm [W×H].

Box Body Size: 259×178 [W×H].

Panel Cut-out Size: 261×180mm [W×H].

Weight: Approx. 1.2kg.

User Login Interface

Name Operation Note
【Login】

User Login.

Exfactory Passwords:

  • Operator: None.
  • Engineer: 0.
  • Administrator: 1.
 Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password.
【User Name】 After password inputted, the matching User Name will be displayed.
  • Operator: User with lowest authorization.
  • Engineer: User with higher authorization.
  • Administrator: User with highest authorization.
【Operate】 Enter ‘Main User Interface’. Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff.

Main User Interface

Dual Scales Bag Packaging Machine Weight Controller, With RS232 RS485 Modbus RTU

Delivery

Dual Scales Bag Packaging Machine Weight Controller, With RS232 RS485 Modbus RTU
