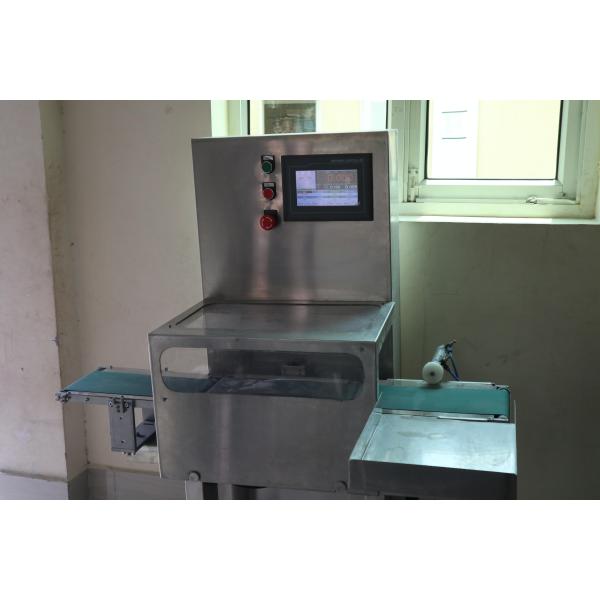

Dynamic Touch Screen Checkweigher Indicator Controller With RS232 RS485 Communication
Dynamic Touch Screen Checkweigher Indicator Controller With RS232 RS485 Communication
Specifications
Brand Name :
SUPMETER
Model Number :
BST106-M10[CK]
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negociation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5-10 working days
Packaging Details :
carton box
Size Option :
7 inch and 10 inch
Loadcell Max. Connection Quantity :
16 Loadcells (350Ω)
Communication :
RS232 and RS485
I/O interface :
7 DI and 18 DO
AO :
4*AO (0~10V)
Additional Option :
ethernet communication
Description

1.Optional Application Mode: Rejecting Mode [Low/Normal/High] and Weight Sorting Mode with 3-18 Sorting Areas

2. Optional Control Modes for Feeding /Checking/Sorting Conveyors: DO Switch Control Mode, PWM Speed Regulation Mode and AO[0-10V] Speed Regulation Mode.

Funtion:

  • Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
  • Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.
  • Static Calibration and Dynamic Compensation functions available.
  • Definable DI funtion of ‘Weight-checking Photo-electric Identification’ for identifying the unchecked product entering the weigher.
  • Optional Weight-checking Mode: Dynamic Mode and Static Mode.
  • Optional 3-18 Sorting Areas with Batch Counting, Weight Totalizing and DO outputs.
  • 100 Recipes for weight-checking&sorting control.
  • The Batch Records can be printed automatically.
  • The Totalizing Reports and Recipes can be queried and printed.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

Dynamic Touch Screen Checkweigher Indicator Controller With RS232 RS485 Communication

Package: 1pcs per box

Dynamic Touch Screen Checkweigher Indicator Controller With RS232 RS485 Communication
