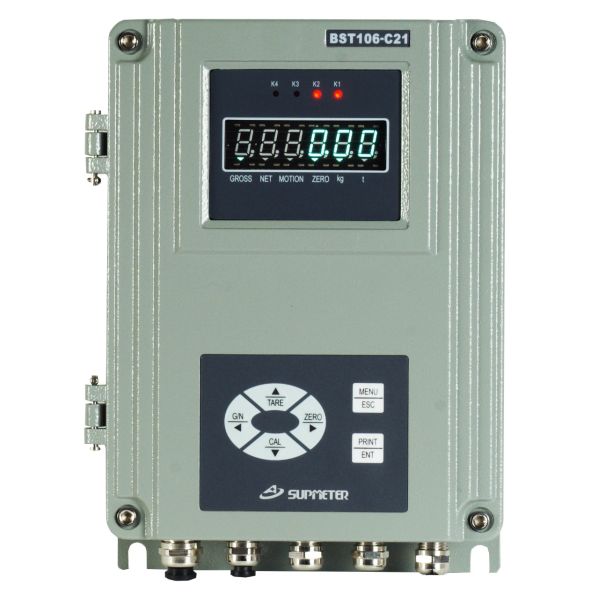

Wall Mounting Material Level Electronic Weighing Indicator Controller For Weight Decrement DO Output Mode
Wall Mounting Material Level Electronic Weighing Indicator Controller For Weight Decrement DO Output Mode
Specifications
Brand Name :
SUPMETER
Model Number :
BST106-C21
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiating
Payment Terms :
T/T, Western Union
Supply Ability :
500pcs/month
Delivery Time :
5-15 working days
Packaging Details :
carton box
Power Supply :
AC20V/DC24V
Display :
VFD Display
Max connect :
8Loadcells (350 Ohm)
Open Swith Input :
3DI
Open Repay Output :
4DO
Description
Product Details

Weighing Controller BST100-C21

Suitable for Hopper Scale, Platform Scale, Ration Feeding Scale with Single-material & Double-speed Feeding and Ration Batching Scale with Three-Material & Single-speed Feeding.

Product Introduction
Wall Mounting Material Level Electronic Weighing Indicator Controller For Weight Decrement DO Output Mode

Weighing Controller BST100-C21

 EMC design with high anti-jamming capability, suitable for industrial environment.

 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 200Hz.


 Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.

 Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.

 Optional Data Calibration function.

 Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.

 With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

Product Parameters
Accuracy
Accuracy Grade
III
Verification Accuracy
0.02%
Static Weighing Accuracy
0.2%~0.5%
Batching Accuracy
0.2%~0.5%
Display
6 Green VFD digital tubes for English character and digit display
Loadcell Interface
Excitation Voltage/Max. Current
DC10V/250mA
Max. Contact Number
8-350Ω loadcells
Signal Input Range
0~25mV
Output Sensitivity
1.0~2.5mV/V
Sampling Frequency
200Hz
Switch&Analog Signal Interface
DI
3 Normally Open Switch Inputs
DO
4 Normally Open Relay Switch Outputs
AO
1 Analogue Output (4~20mA)
Digital Communication Interface
COM1
RS232&RS485
COM2
For additional option
Connectable
Host IPC/PLC, LED Remote Display, Serial Printer and Wireless Module

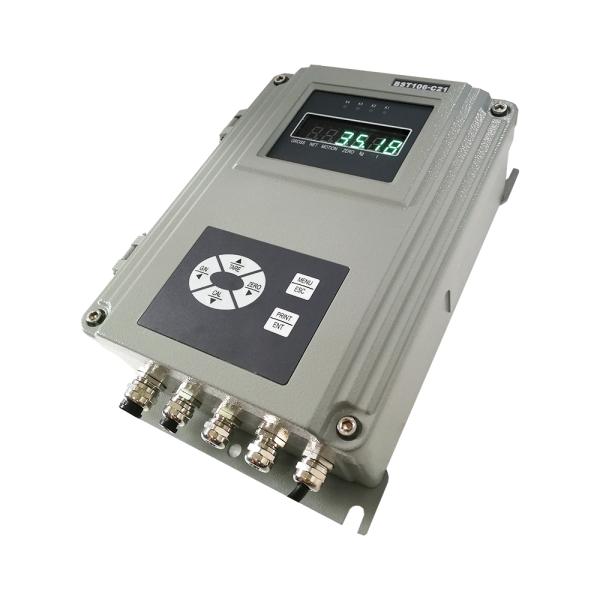

Product Details Show
Wall Mounting Material Level Electronic Weighing Indicator Controller For Weight Decrement DO Output ModeWall Mounting Material Level Electronic Weighing Indicator Controller For Weight Decrement DO Output Mode
Why Choose Us
Full Experience

14 years expirience on manufacturing weighing indicator/controller.

Enough Stock

Full stocks makes deliery fast High Quality

Special testing machine to guarantee the quality of products

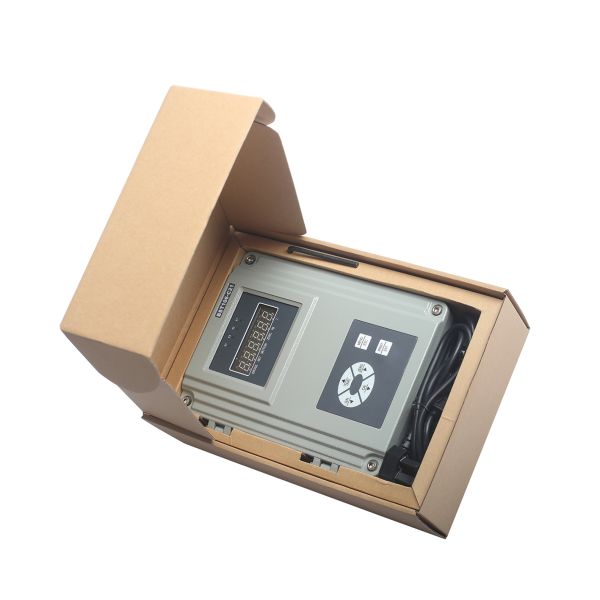

Product Processing
Wall Mounting Material Level Electronic Weighing Indicator Controller For Weight Decrement DO Output ModeWall Mounting Material Level Electronic Weighing Indicator Controller For Weight Decrement DO Output ModeWall Mounting Material Level Electronic Weighing Indicator Controller For Weight Decrement DO Output ModeWall Mounting Material Level Electronic Weighing Indicator Controller For Weight Decrement DO Output Mode
Warranty

The warranty period for our products is 12 (twelve) months.

If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.

(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
