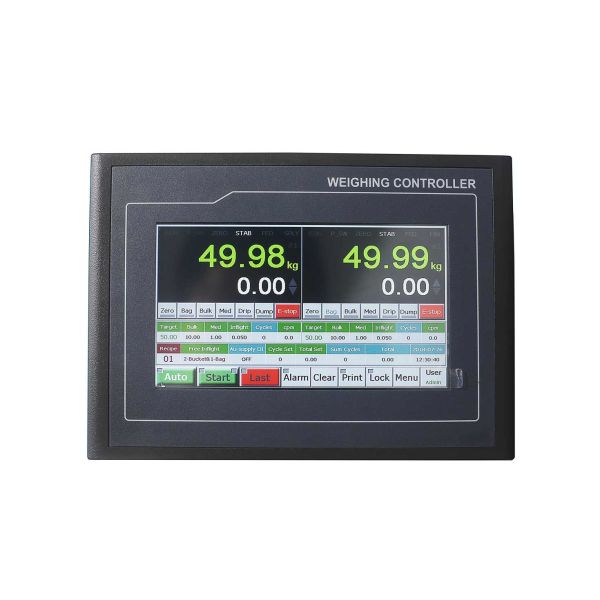

Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)
Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)
Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)
Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)
Specifications
Brand Name :
SUPMETER
Model Number :
BST106-M10[BH]
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
298usd/pcs
Payment Terms :
T/T, Western Union, L/C, D/A, D/P
Supply Ability :
200pcs per month
Delivery Time :
1~10 working days
Packaging Details :
1pcs/box
Customization :
Available
Application :
Single Scale Mode & Double Scale Mode
Verification Accuracy :
0.02%
Static Weighing Accuracy :
0.2%~0.5%
Packing Accuracy :
0.2%~0.5%
IP Grade :
IP65
Description

Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)

Main Features:

1. Suitable for Ration Packing Scale with optional modes 1-Bucket Scale, 1-Bag Scale, 2-Bucket Scale[1-Bag] , 2-Bucket Scale[2-Bag] and 2-Bag Scale.

2. EMC design with high anti-jamming capability, suitable for industrial environment.

3. Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.

4. 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.

Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)

Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)

Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)

7”Touch Screen

Outline Size: 226.5×163×56mm [W×H×D].

Window Size: 153.6×86.64mm [W×H].

Box Body Size: 213×150mm [W×H].

Panel Cut-out Size: 215×152mm [W×H].

Weight: Approx. 0.72kg.

10.2” Touch Screen

Outline Size: 274×193×56mm [W×H×D].

Window Size: 220.8×132.9mm [W×H].

Box Body Size: 259×178 [W×H].

Panel Cut-out Size: 261×180mm [W×H].

Weight: Approx. 1.2kg.

User Login Interface

Name Operation Note
【Login】

User Login.

Exfactory Passwords:

  • Operator: None.
  • Engineer: 0.
  • Administrator: 1.
 Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password.
【User Name】 After password inputted, the matching User Name will be displayed.
  • Operator: User with lowest authorization.
  • Engineer: User with higher authorization.
  • Administrator: User with highest authorization.
【Operate】 Enter ‘Main User Interface’. Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff.

Main User Interface

Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)

Installation Mode

Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)

Package:

Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)

Delivery

Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)

Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)

Double Hopper Double Bag Filling Controller, High Speed 16pcs/Min Weight Packaging Controller BST106-M10(BH)
