SAL300A load cell compatible to HBM C16A alloy steel with OIML approval
SAL300A load cell compatible to HBM C16A alloy steel with OIML approval
Specifications
Brand Name :
SATIS
Model Number :
SAL300A
Certification :
OIML TC8152
Place of Origin :
CHINA
MOQ :
8 units
Price :
USD78-100 per unit
Payment Terms :
T/T
Supply Ability :
3000 units per month
Delivery Time :
30 work days
Packaging Details :
netural carton
Material :
alloy steel RoHS
Description

Load cell SAL300A

SAL300A load cell compatible to HBM C16A alloy steel with OIML approval

Features

  • Capacity: 10-50t
  • High accuracy
  • Alloy steel construction
  • OIML TC number: TC8152
  • Compression, anti-reversal design, suitable for electronic truck scales, hopper scales and other electronic weighing device

Specification

Maximum capacity (Emax) t 10 , 15, 20, 25, 30, 40, 50
Rated output (Cn) mV/V 2,0 ± 0,002
Accuracy - OIML C3
Max. number of intervals (nLC) - 3000
Creep (30 minutes) ±%FS 0.0166
Zero balance ±%FS 1
Temperature effect on zero balance (TCO) ±%FS/10°C 0.02
Temperature effect on sensitivity (TC Span) ±%FS/10°C 0.02
Safe overload %FS 150
Ultimate overload %FS 300
Nominal temperature range °C -10 ... + 40
Operating temperature range °C - 30 ... + 70
Input impedance Ω 730 ± 30
Output impedance Ω 705 ± 5
Insulation impedance MΩ ≥ 5000
Recommended excitation V DC/AC 10 -12
Excitation maximum V DC/AC 15
Material - Alloy steel
Protection class - IP68
Cable -

Length: 8m for 10t; 10m for 15 t;

12m for 20-25t; 14m for 30t;

16m for 40-50t;

or customize special length to order;

Diameter: Φ 5mm

Wiring

The load cell is provided with a shielded 4 or 6 conductor cable. The shield will be connected or not connected to the load cell according to customer’s preference.

SAL300A load cell compatible to HBM C16A alloy steel with OIML approval

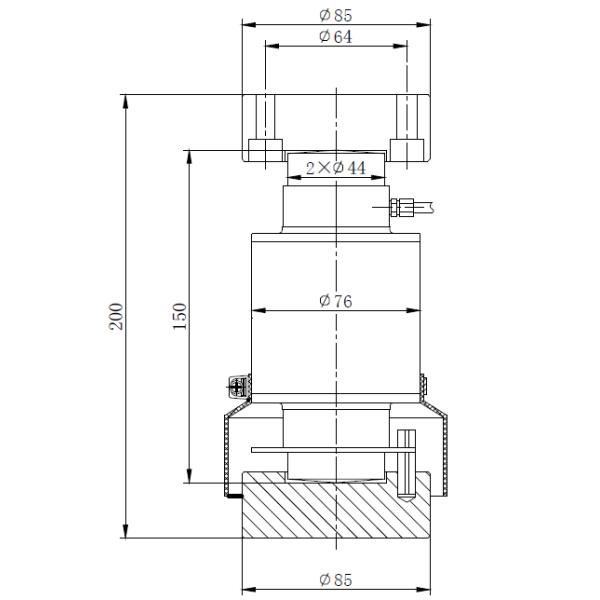

Dimension

Dimension unit:mm

SAL300A load cell compatible to HBM C16A alloy steel with OIML approval
