OCS-T 1t to 5t economy type crane scale
OCS-T 1t to 5t economy type crane scale
Specifications
Brand Name :
SATIS
Model Number :
OCS-T
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
USD170-200
Payment Terms :
T/T
Supply Ability :
30000pcs per month
Delivery Time :
30 days
Packaging Details :
netural carton
Description

Model: OCS-T economy type crane scale

Features

  • High-strength load receptor
  • Aluminium die-casting case
  • LED display
  • American standard fixed shackle
  • American standard rotatable hook
  • Rechargeable batteries
  • Infrared remote control
  • Capacity:1t~5t

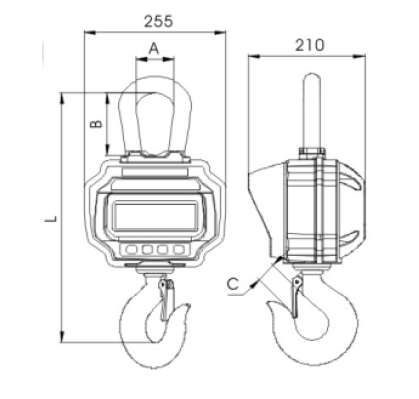

Dimensions

OCS-T 1t to 5t economy type crane scale

Max.Cap
(t)		 A
mm		 B
mm		 C
mm		 L
mm		 N.W
(kg)
1t 68 112 40 420 11.0
2t 68 112 40 420 11.0
3t 68 112 40 420 11.0
5t 68 112 45 450 12.5

Functions

Zero Overload Alarm/ Record
Tare Digital Calibration
Hold 3-point Linearity Correction
Resolution switch Unit Switch
Battery Supervision Gravity Acceleration Set

Specifications

Accuracy class OIML III
Tare range 100%F.S.
Zero range 4%F.S.
Safe overload 120%F.S.
Ultimate overload 400%F.S.
Overload alarm 100%F.S.+9e
Battery 6V/4Ah
Adaptor DC7.2V
Battery life >80h
Temperature range -10℃~40℃
N.W. 12.5kg

Capacity and division

Max. Cap.

t

Min. Cap.

kg

Division Value (d)

kg

Division Number(n)
1 10 0.5 2000
2 20 1 2000
3 20 1 3000
5 40 2 2500

Standard accessories

OCS-T 1t to 5t economy type crane scale

Optional accessories

OCS-T 1t to 5t economy type crane scale
