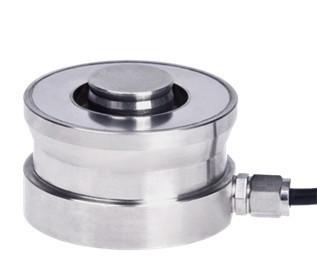

SAL304A 10-330t compression load cell compatible to HBM RTN alluy steel and stainless steel optional
SAL304A 10-330t compression load cell compatible to HBM RTN alluy steel and stainless steel optional
Specifications
Brand Name :
SATIS
Model Number :
SAL/304A 10-330t
Certification :
N/A
Place of Origin :
CHINA
MOQ :
50 units
Price :
USD 100-500 per unit
Payment Terms :
T/T
Supply Ability :
3000 units per month
Delivery Time :
30 working days
Packaging Details :
netural carton
Description

Features

  • Capacity: 10-330t
  • High accuracy, low profile
  • Alloy steel construction
  • Compression, suitable for electronic truck scales, hopper scales, batch scales and other electronic weighing device

Specification

Maximum capacity (Emax) t 10, 15, 22, 33, 47, 68, 100, 150 220,330
Rated output (Cn) mV/V 2.85 ± 0.015
Accuracy ±%FS 0.1 0.2
Max. number of intervals (nLC) - 3000
Creep (30 minutes) ±%FS 0.02
Zero balance ±%FS 1
Temperature effect on zero balance (TCO) ±%FS/10°C 0.02
Temperature effect on sensitivity (TC Span) ±%FS/10°C 0.02
Safe overload %FS 150
Ultimate overload %FS 200
Nominal temperature range °C -10 ... + 40
Operating temperature range °C - 30 ... + 70
Input impedance Ω 1450 ± 10
Output impedance Ω 1402 ± 5
Insulation impedance MΩ ≥ 5000
Recommended excitation V DC/AC 10 -12
Excitation maximum V DC/AC 15
Material - Alloy steel
Protection class - IP68
Cable -

Length: 12m for 10-33t;

16m for 47-330t;

or customize special length to order;

Diameter: Φ 6mm

Wiring

The load cell is provided with a shielded 4 or 6 conductor cable. The shield will be connected or not connected to the load cell according to customer’s preference.

SAL304A 10-330t compression load cell compatible to HBM RTN alluy steel and stainless steel optional

Dimension

SAL304A 10-330t compression load cell compatible to HBM RTN alluy steel and stainless steel optional

Dimension unit: mm

Capacity (t) A B C H J K
10, 15, 22 Ф75 Ф30 Ф75 50 7 6.5
33 Ф95 Ф40 Ф95 65 7 10
47 Ф130 Ф60 Ф130 75 7 14
68 Ф130 Ф60 Ф130 85 7 14
100 Ф150 Ф70 Ф150 90 7 16
150 Ф150 Ф70 Ф150 100 7 16
220 Ф225 Ф100 Ф225 130 10 24
330 Ф225 Ф100 Ф225 145 10 24

Accessories


SAL304A 10-330t compression load cell compatible to HBM RTN alluy steel and stainless steel optional

Accessory model: type b mounting

Notes:

The mounting is optional in your order, if you need it, please list out in your inquiry and order.

Dimension unit: mm

Capacity (t) A B C D E F G H K
10, 15, 22 Ф45 Ф55 Ф80 Ф100 Ф75 20 10 95 Ф11.5
33 Ф58 Ф68 Ф95 Ф120 Ф95 25 12 120 Ф13
47 Ф80 Ф92 Ф130 Ф170 Ф130 30 20 140 Ф11.5
68 Ф80 Ф92 Ф130 Ф170 Ф130 30 20 150 Ф11.5
100 Ф100 Ф110 Ф150 Ф200 Ф150 40 22 177 Ф25
150 Ф100 Ф110 Ф150 Ф200 Ф150 40 22 187 Ф25
220 Ф160 Ф170 Ф250 Ф320 Ф225 40 30 235 Ф25
330 Ф160 Ф170 Ф250 Ф320 Ф225 40 30 250 Ф25
