SAL600A 100-5000kg S type load cell alloy steel and stainless steel optional
SAL600A 100-5000kg S type load cell alloy steel and stainless steel optional
Specifications
Brand Name :
SATIS
Model Number :
SAL600A 100-5000kg
Certification :
OIML
Place of Origin :
CHINA
MOQ :
50 units
Price :
USD 30 - 100 per unit
Payment Terms :
T/T
Supply Ability :
3000 units per month
Delivery Time :
30 working days
Packaging Details :
netural carton
Description

Features

  • Capacity: 100-5000kg
  • High accuracy
  • Alloy steel construction
  • S beam, suitable for crane scales, mechanical conversion scales, hopper scales and other electronic weighing device

Specification

Maximum capacity (Emax) kg 100, 150, 200, 250, 300, 500, 750, 1000 1200, 1500, 2000, 3000, 5000
Rated output (Cn) mV/V 2,0 ± 0,002
Accuracy ±%FS 0.03
Max. number of intervals (nLC) - 3000
Creep (30 minutes) ±%FS 0.02
Zero balance ±%FS 1
Temperature effect on zero balance (TCO) ±%FS/10°C 0.02
Temperature effect on sensitivity (TC Span) ±%FS/10°C 0.02
Safe overload %FS 120
Ultimate overload %FS 150
Nominal temperature range °C -10 ... + 40
Operating temperature range °C - 30 ... + 70
Input impedance Ω 400 ± 20
Output impedance Ω 352 ± 3
Insulation impedance MΩ ≥ 5000
Recommended excitation V DC/AC 10 -12
Excitation maximum V DC/AC 15
Material - Alloy steel
Protection class - IP65 IP68
Cable -

Length: 5m; or customize special length to order;

Diameter: Φ 5mm

Wiring

The load cell is provided with a shielded 4 or 6 conductor cable. The shield will be connected or not connected to the load cell according to customer’s preference.

SAL600A 100-5000kg S type load cell alloy steel and stainless steel optional

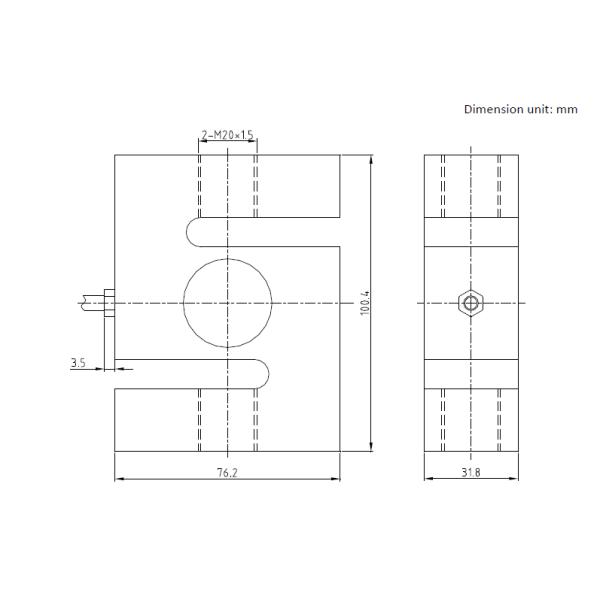

Dimension

100-1000kg:

SAL600A 100-5000kg S type load cell alloy steel and stainless steel optional

1200-5000kg:

SAL600A 100-5000kg S type load cell alloy steel and stainless steel optional

Accessories

No accessory is provided for standard shipment
