Specifications
Brand Name :
WS
Place of Origin :
China
Product Name :
EP Fabric Conveyor Belt
Material :
Polyester (EP)
Feature :
High Strength
Width Range :
300~6000mm
Size :
Customized
Color :
Black
Layer :
Multi Ply Conveyor Belt
Description

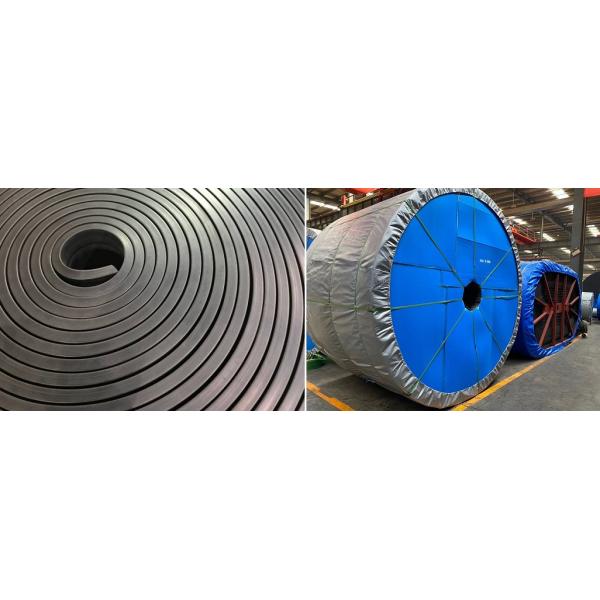

Polyester Ordinary Temperature Conveyor Belt EP 400/3 500/3 630/4 800/4

Description:

EP Conveyor Belt is also called polyester conveyor belt (NP conveyor belt in the U.S), the “EP” is short for Polyester fabric, which includes polyester toward longitudinal(warp) and polyamide for latitude(weft), EP fabric plies are sandwiched between rubber skim coats for adhesion and load support, bottom and top cover compounds are added for maximum protection of the belt carcass.


The Polyester Conveyor Belt consisting of 2 to 6 EP fabric plies, EP rubber conveyor belt has the same merit as Nylon(NN) conveyor belt, its tensile carcass is made of warp polyester and weft nylon knitted fabric, its performance is characterized by low elongation in the warp direction and excellent troughing formation in the longitudinal direction. The strength of the EP conveyor belt will not decrease in a humid environment, no mildew occurs also, the initial modulus of the polyester is high, and a lower safety factor can be taken, it is suitable for conveying materials under medium, long-distance, and high load and high-speed conditions.

Feature:

1. Lower longitudinal elongation.

2. Full resistance to mildew, moisture and rotting.

3. Good flexibility and trough ability.

4. Short take-up lengths.

5. Suitable for middle and long-distance transportation of higher load and speed.

Specification:

Polyester Multi Ply Conveyor Belt Parameter
fabric type fabric construction Fabric model Tape thickness Strength series(N/mm) Covering glue thickness(mm) width range(mm)
Longitude latitude 2 Ply 3 Ply 4 Ply Cover glue Lower cover glue
polyester(EP) polyester Nylon EP-80 1.00 160 240 320 0~12 0~10 300~6000
EP-100 1.00 200 300 400
EP-125 1.05 250 375 500
EP-150 1.10 300 450 600
EP-170 1.10 340 510 680
EP-200 1.20 400 600 800
EP-250 1.40 500 750 1000
EP-300 1.60 600 900 1200
EP-350 1.70 1050 1400
EP-400 1.90 1600
EP-500 2.10 2000

Common EP Conveyor Belt Type:

2 Ply Conveyor Belt: EP315/2 EP400/2 EP500/2 EP630/2 EP800/2

3 ply conveyor belt: EP400/3 EP500/3 EP630/3 EP800/3 EP1000/3 EP1250/3

5 ply conveyor belt: EP800/5 EP1000/5 EP1250/5 EP1600/5 EP2000/5

Polyadhesive strength elongation performance compliance table
Core material between fabric layers N/mm Between covering layer and cloth layerN/mm Extended performance
Cover thickness≤1.5mm Cover thickness≥1.5mm Full thickness longitudinal tensile elongation at break Full thickness longitudinal reference force elongation
polyester canvas ≥5 ≥4.5 ≥5 ≥10% ≤4%

Tape cover properties
Coverage level Tensile Strength Elongation at break

Amount

of wear

Change rate of tensile strength and elongation at break after aging
MPA Kgf/cm2 % Mm3 %
H 24 240 450 120 -25~+25
D 18 180 400 100 -25~+25
L 15 150 350 200 -25~+25
