DTII Type Belt Conveyor Roller Conveyor Belt Drive Roller Heavy Duty Conveyor Belt Rollers
DTII Type Belt Conveyor Roller Conveyor Belt Drive Roller Heavy Duty Conveyor Belt Rollers
Specifications
Model Number :
DTII Type
Place of Origin :
China
Product Name :
Drive Rollers For Conveyors
Type :
Light/Medium/Heavy
Diameter :
500、630、800、1000mm
Surface :
Smooth Steel Surface, Herringbone And Diamond Pattern Rubber Covering
Description

DTII Type Belt Conveyor Roller Conveyor Belt Drive Roller Heavy Duty Conveyor Belt Rollers

Belt Driven Roller Overview:

DTII Type Conveyor Belt Drive Rollers are divided into three types: light, medium and heavy according to the load-bearing capacity. The diameters of the rollers are 500, 630, 800 and 1000mm. The same type of roller has several different shaft diameters and center spans for selection.


1) Lightweight: The bearing hole diameter is 80~100mm, the shaft and the hub are connected by a single key, the drum is a single-width plate welded structure, and the shaft comes out in one direction.
2) Medium type: The bearing hole diameter is 120~180mm, the shaft and the hub are connected by expansion sleeves, and there are two types of one-way shaft output and two-way shaft output.
3) Heavy duty: The bearing hole diameter is 200~220mm, and the expansion sleeve connection is a cast-welded cylinder structure.

Belt Conveyor Carrier Roller Advantage:


1. Easy installation ,stable operation ,good flexibility and min 30,000 hours stable lift time.
2. High accurate steel pipes ensure the rollers with wearing resisting,low vibration and noise.
3. Sealing arrangement include a double seal.
4. Dustproof, waterproof and anti-alkali and acid suitabe for corrosion environment.
5. Electrostatic spraying technical makes the roller more durable and good-looking.

Gravity Puller Roller Parameter:

Type Diameter Bearing Bore Diameter
Light 500mm630mm 80～100mm
Medium 800mm 120～180mm
Heavy 1000mm 200～220mm

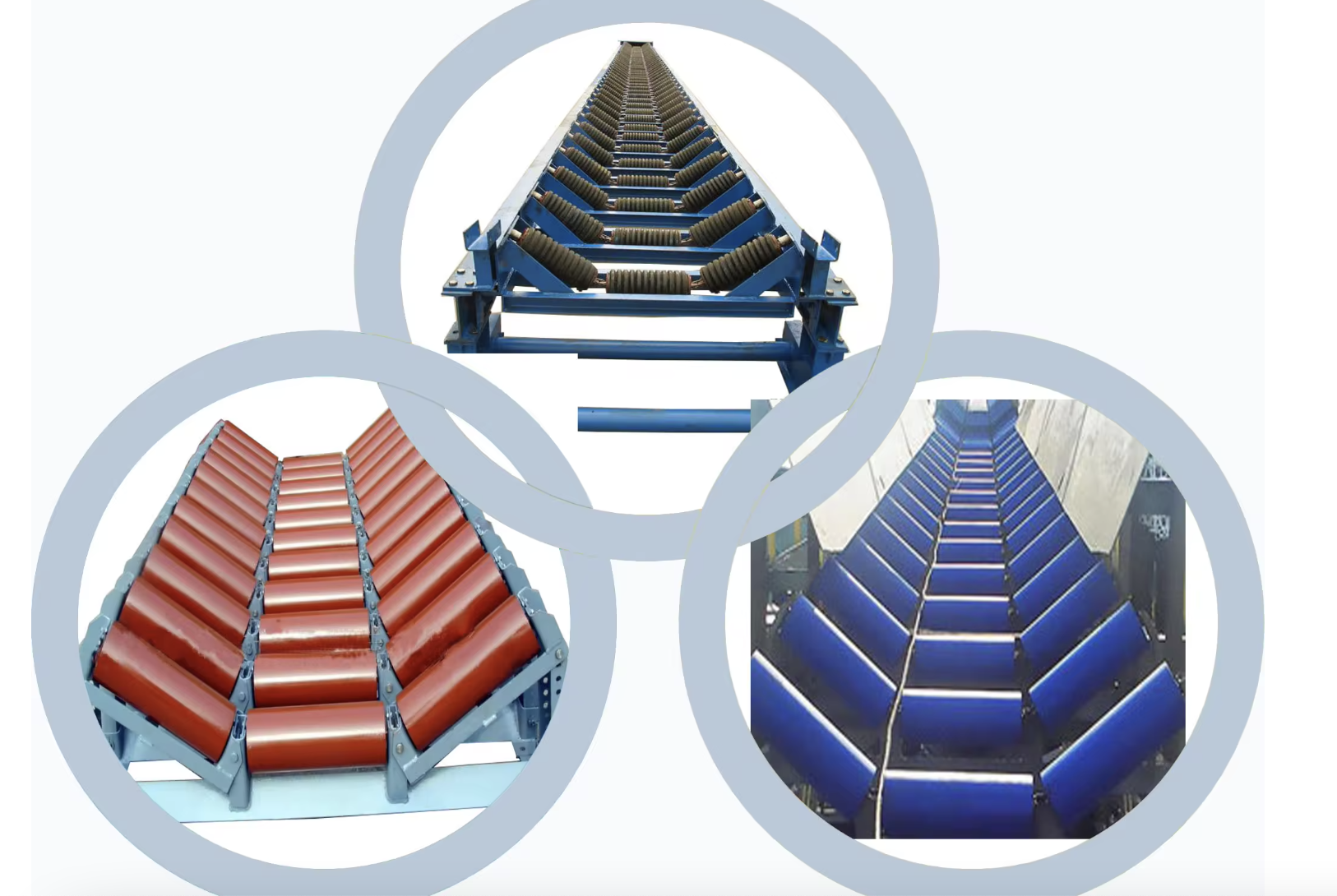

Belt Conveyor Roller Image:

DTII Type Belt Conveyor Roller Conveyor Belt Drive Roller Heavy Duty Conveyor Belt Rollers
