Galvanized Woven Chain Link Mesh Fence Carbon Steel Wire With Diamond Holes
Galvanized Woven Chain Link Mesh Fence Carbon Steel Wire With Diamond Holes
Galvanized Woven Chain Link Mesh Fence Carbon Steel Wire With Diamond Holes
Galvanized Woven Chain Link Mesh Fence Carbon Steel Wire With Diamond Holes
Specifications
Brand Name :
Baodi
Model Number :
BD-CLFC
Place of Origin :
China
MOQ :
100 rolls
Payment Terms :
T/T, Western Union
Supply Ability :
2000 rolls per month
Delivery Time :
10-30 days
Packaging Details :
Weaving bag or pallet
Price :
negotiated
Product's Name :
Wire Cyclone Fence
Type :
Woven wire Mesh
Usage :
highway fencing, stadium fencing
Wire :
1.5mm-4mm
Mesh Size :
40mm, 50mm, 60mm
Height :
0.9m-2.1m
Description

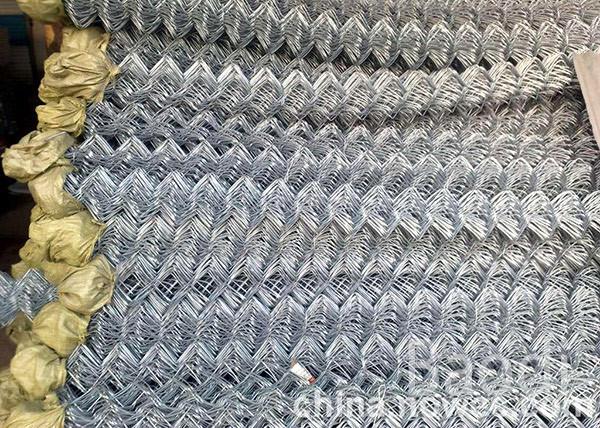

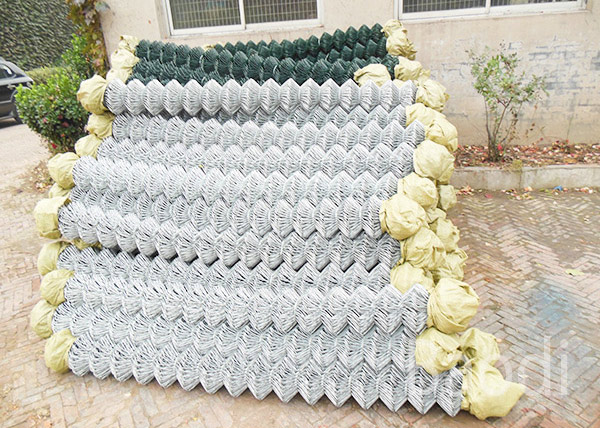

Galvanized Woven Wire Cyclone Fence Carbon Steel Wire With Diamond Holes

Introduction Of Wire Cyclone Fence

♦ Cyclone Fence is a type of woven fence usually made from high quality carbon steel wire.

♦ It can also be called chain link fence, wire netting, wire mesh fence, chain wire fence, hurricane fence, or diamond mesh fence.

Material Low carbon iron wire, mild steel wire Type Woven mesh
Pattern Diamond mesh hole pattern Selvage Type Twisted Selvage & Knuckled Selvage
Surface Treatment Galvanized, PVC coated after galvanized Packing In roll with woven bag at both ends, or in pallet.
  1. Mesh Opening: 1'- 4'(25mm-100mm), Popular Mesh Opening 50x50mm
  2. Wire Diameter: 18#-7#(1.2mm - 4.5mm) , Popular Wire Dia. 2.5mm, 3mm, 3.5mm
  3. Roll Width 0.5m - 5m Popular Roll Width 1.5m, 1.8m, 2m, 2.5m, 3.6m
  4. Roll Length: 1m - 50m ,Popular Roll Length 10m, 15m, 25m
  5. Note: Specifications can be made according to your requirements.

Characteristic Of Woven Wire Cyclone Fence

  1. High strength
  2. Highly durable
  3. Good steel nature capacity
  4. Wonderful shape
  5. Widely field of vision
  6. Easy to install
  7. Diamond pattern
  8. Corrosion resisting
  9. Alkali resisting
  10. Acid resisting

Specification List Of Galvanized Cyclone Fence

Galvanized Woven Wire Hurricane Fence
Mesh(mm) Wire Gauge(SWG) Wire Diameter(mm) Coil Dimension
Natural Volume Fold Volume
100x100 9 3.66 55 35
80x80 10 3.25 57 38
60x60 12 2.64 52 34
50x50 12 2.64 49 33
40x40 10 3.25 46 32
30x30 12 2.64 42 34
20x20 19 1.02 25 34
Material Galvanized iron wire, aluminum alloy wire or PVC coated iron wire.
Packing Plastic film or weaving bag or pallet
Note There’re common specifications of products. Non-standard can also be customized.

Factors for quotation

1. Wire Diameter

2. Mesh Opening

3. Roll Witdh X Length

4. Post Height

5. Surface Treatment

Production Process

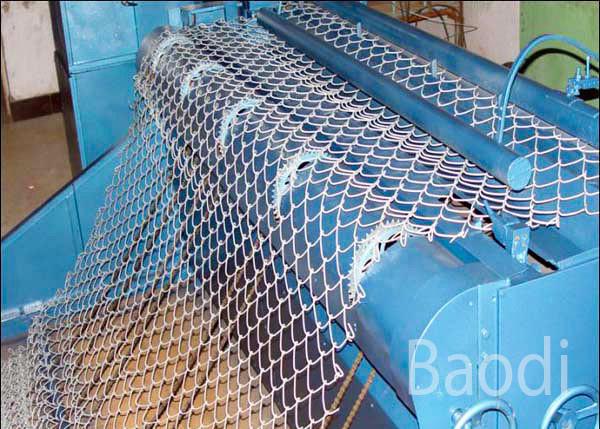

Wire drawing and straighten ⇒ Galvanized or pvc coated ⇒ Wire mesh woven ⇒ Packing ⇒ Loading in container

Galvanized Woven Chain Link Mesh Fence Carbon Steel Wire With Diamond Holes
