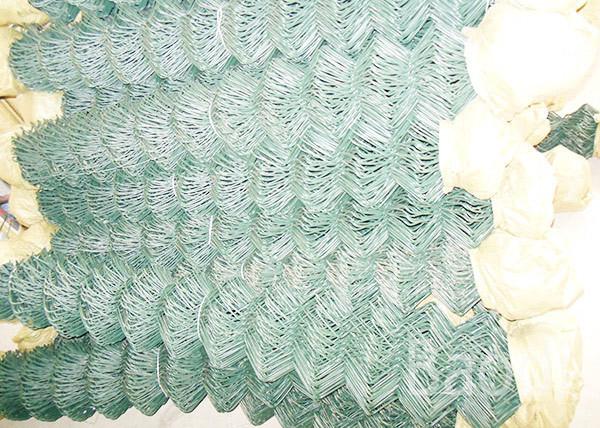

Green Color Cyclone Chain Link Mesh Fence 1.5mm - 4mm Wire Packed In Roll
Green Color Cyclone Chain Link Mesh Fence 1.5mm - 4mm Wire Packed In Roll
Green Color Cyclone Chain Link Mesh Fence 1.5mm - 4mm Wire Packed In Roll
Green Color Cyclone Chain Link Mesh Fence 1.5mm - 4mm Wire Packed In Roll
Specifications
Brand Name :
Baodi
Model Number :
BD-CLFCA
Place of Origin :
China
MOQ :
100 rolls
Price :
negotiated
Payment Terms :
T/T, Western Union
Supply Ability :
2000 rolls per month
Delivery Time :
10-30 days
Packaging Details :
Weaving bag or pallet
Name :
Cyclone Wire Fence
MEsh Type :
Woven Mesh
Hole Pattern :
Diamond grid
Wire :
1.5mm-4mm
Opening :
40mm, 50mm, 60mm
Height :
0.9m-2.1m
Description

Green Color Cyclone Wire Fence Packed In Roll With Post For Fencing

Cyclone Fence is also named chain link fence or diamond wire mesh, with uniform diamond mesh holes.

It's a kind of woven mesh made of high quality steel wire.

The surface treatment of Cyclone Fence is galvanized or PVC coated.

The wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire

immediately on one side and each "zag" with the wire immediately on the other.

This forms the characteristic diamond pattern seen in this type of fence.

Different Selvage Types

Twisted Selvage The wire is twisted in to a barbed selvedge at both ends.
Knuckled Selvage The wire is knuckled at both ends
Twisted & Knuckled Selvage The wire is knuckled at the bottom and twisted into a barbed selvedge at the top

Application Of Cyclone Fence

Cyclone Fence is used in Sports Field, Residential, River Banks, Animal Fencing, Garden,Airport etc.

It's also used in highway fencing, stadium fencing, machine protection, green belt fencing, zoo fencing, decoration and so on.
1. Residential

Cyclone Fence for residential are woven generally with metallic wire of galvanized iron, or with plastic coated galvanized wire.

2. Sports

Cyclone Fence are commonly used for sports because they are durable and easy to install.

PVC Coated Cyclone Fence
Mesh(mm)

Wire

Gauge(SWG)

Wire

Diameter(mm)

 Coil Dimension Roll Size
Natural Volume Fold Volume Roll Height Roll Length
80x80 8 3.0/4.06 65 40 0.9m-2.1m 5-30m
60x60 9 2.6/3.66 59 38 0.9m-2.1m 5-30m
55x55 10 2.2/3.25 54 35 0.9m-2.1m 5-30m
50x50 10 2.2/3.25 49 35 0.9m-2.1m 5-30m
45x45 8 3.0/4.0 50 35 0.9m-2.1m 5-30m
40x40 10 2.2/3.25 45 34 0.9m-2.1m 5-30m
35x35 12 2.0/2.64 40 30 0.9m-2.1m 5-30m
Galvanized Cyclone Fence
Mesh(mm)

Wire

Gauge(SWG)

Wire

Diameter(mm)

 Coil Dimension Roll Size
Natural Volume Fold Volume Roll Height Roll Length
100x100 9 3.66 55 35 0.9m-2.1m 5-30m
80x80 10 3.25 57 38 0.9m-2.1m 5-30m
60x60 12 2.64 52 34 0.9m-2.1m 5-30m
50x50 12 2.64 49 33 0.9m-2.1m 5-30m
40x40 10 3.25 46 32 0.9m-2.1m 5-30m
30x30 12 2.64 42 34 0.9m-2.1m 5-30m
20x20 19 1.02 25 34 0.9m-2.1m 5-30m
Material Galvanized iron wire, aluminum alloy wire or PVC coated iron wire.
Packing Plastic film or weaving bag or pallet

Note: There’re common specifications of products. Non-standard can also be customized.
