Hot Dip Galvanized Chain Link Fabric Uniform Mesh Opening For Boundary Fence
Hot Dip Galvanized Chain Link Fabric Uniform Mesh Opening For Boundary Fence
Hot Dip Galvanized Chain Link Fabric Uniform Mesh Opening For Boundary Fence
Hot Dip Galvanized Chain Link Fabric Uniform Mesh Opening For Boundary Fence
Specifications
Brand Name :
Baodi
Model Number :
BD-CLFD
Place of Origin :
China
MOQ :
100 rolls
Payment Terms :
T/T, Western Union
Supply Ability :
2000 rolls per month
Delivery Time :
10-30 days
Packaging Details :
Weaving bag or pallet
Price :
negotiated
Product :
Diamond Wire Mesh
Weaving Type :
Woven
Hole Shape :
Diamond
Wire Diameter :
1.5mm-4mm
Mesh Opening :
40mm, 50mm, 60mm
Height :
0.9m-2.1m
Description

Hot Dip Galvanized Diamond Wire Mesh In Roll As Boundary Fence

Product Introduction Of Diamond Wire Mesh

Diamond Wire Mesh Characteristic

Firm structure Flat surface
Good flexibility Uniform mesh opening
Fast installation Acid resisting
Alkali resisting Long service life
Beautiful apprearance Corrosion resisting

► Diamond Wire Mesh is also named chain link fence or cyclone fence, with uniform diamond mesh holes.

► It's a kind of woven mesh made of high quality steel wire.

► The surface treatment of Diamond Wire Mesh is galvanized or PVC coated.

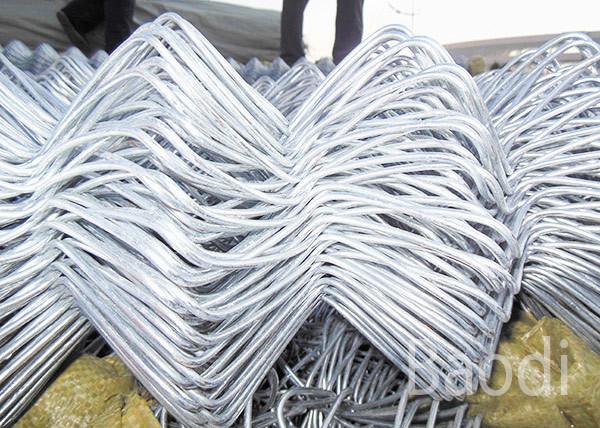

► The wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire

immediately on one side and each "zag" with the wire immediately on the other.

► This forms the characteristic diamond pattern seen in this type of fence.

Selvage Type:

Twisted Selvage: The wire is twisted in to a barbed selvedge at both ends

Knuckled Selvage: The wire is knuckled at both ends

Twisted & Knuckled Selvage: The wire is knuckled at the bottom and twisted into a barbed selvedge at the top

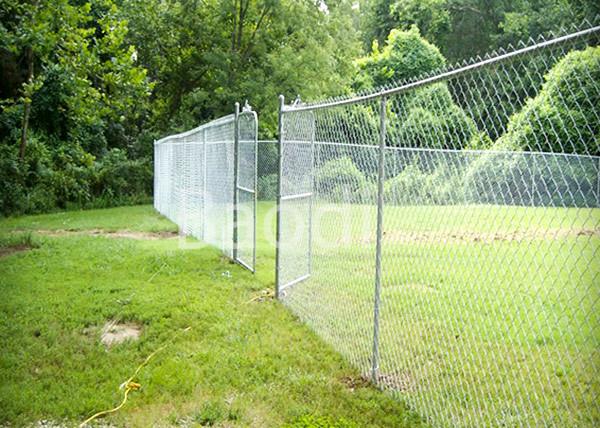

Application Of Diamond Wire Mesh

Diamond Wire Mesh is used in Sports Field, Residential, River Banks, Animal Fencing, Garden,Airport etc.

It's also used in highway fencing, stadium fencing, machine protection, green belt fencing, zoo fencing, decoration and so on.

Residential

Diamond Wire Mesh for residential are woven generally with metallic wire of galvanized iron, or with plastic coated galvanized wire.

Sports

Diamond Wire Mesh are commonly used for sports because they are durable and easy to install.

Specification List Of Diamond Wire Mesh
PVC Coated Diamond Wire Mesh
Mesh(mm)

Wire

Gauge(SWG)

Wire

Diameter(mm)

 Coil Dimension Roll Size
Natural Volume Fold Volume Roll Height Roll Length
80x80 8 3.0/4.06 65 40 0.9m-2.1m 5-30m
60x60 9 2.6/3.66 59 38 0.9m-2.1m 5-30m
55x55 10 2.2/3.25 54 35 0.9m-2.1m 5-30m
50x50 10 2.2/3.25 49 35 0.9m-2.1m 5-30m
45x45 8 3.0/4.0 50 35 0.9m-2.1m 5-30m
40x40 10 2.2/3.25 45 34 0.9m-2.1m 5-30m
35x35 12 2.0/2.64 40 30 0.9m-2.1m 5-30m
Galvanized Diamond Wire Mesh
Mesh(mm)

Wire

Gauge(SWG)

Wire

Diameter(mm)

 Coil Dimension Roll Size
Natural Volume Fold Volume Roll Height Roll Length
100x100 9 3.66 55 35 0.9m-2.1m 5-30m
80x80 10 3.25 57 38 0.9m-2.1m 5-30m
60x60 12 2.64 52 34 0.9m-2.1m 5-30m
50x50 12 2.64 49 33 0.9m-2.1m 5-30m
40x40 10 3.25 46 32 0.9m-2.1m 5-30m
30x30 12 2.64 42 34 0.9m-2.1m 5-30m
20x20 19 1.02 25 34 0.9m-2.1m 5-30m

Material: Galvanized iron wire, aluminum alloy wire or PVC coated iron wire.

Packing: Plastic film or weaving bag or pallet

Note: There’re common specifications of products. Non-standard can also be customized.
