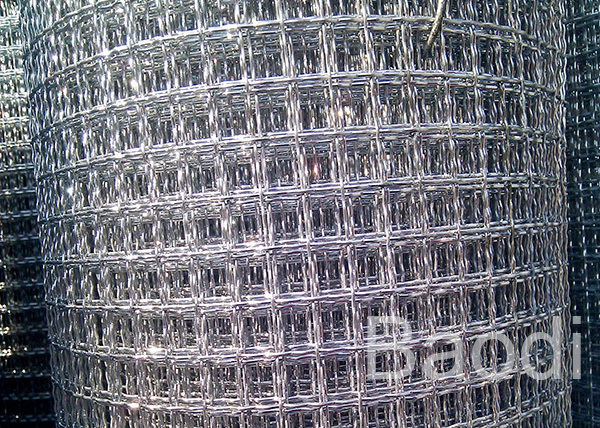

Galvanized Woven Square Crimped Wire Mesh / BBQ Wire Mesh For Roasting Food
Galvanized Woven Square Crimped Wire Mesh / BBQ Wire Mesh For Roasting Food
Galvanized Woven Square Crimped Wire Mesh / BBQ Wire Mesh For Roasting Food
Galvanized Woven Square Crimped Wire Mesh / BBQ Wire Mesh For Roasting Food
Specifications
Brand Name :
Baodi
Model Number :
BD-CWMAA
Place of Origin :
China
MOQ :
100 Rolls
Price :
negotiated
Payment Terms :
T/T, Western Union
Supply Ability :
1000 rolls per month
Delivery Time :
10-30 days
Packaging Details :
Woven bag with two ends
Name :
Crimped Square Wire Mesh
Material :
Carbon Iron Wire
Surface :
Electro Galvanized, Hot Dipped Galvanized
Wire :
0.4mm - 1.6 mm
Height :
0.9m - 1.5m
Mesh/inch :
2 - 18
Description

Galvanized Woven Crimped Square Wire Mesh In Roll For Mine Use

>> Crimped Mesh is made by crimped mesh machine, it's available in carbon steel, stainless steel alloys and aluminum alloys.

>> Manufactured in a wide variety of wire diameters, crimped wire mesh is produced in a square or rectangular mesh.

>> it's a kind of woven wire cloth. Crimped wire mesh is available in roll or flat panel form.

>> It is used as fence or filter in lost of industries. It's also used as screen in mine, coal factory, construction and other industries.

>> Or used as BBQ wire mesh to roast for food or meat.

Crimped Wire Mesh
Material Low carbon steel wire Pattern Square or rectangular grid
Mesh/inch 2mesh - 18mesh Wire Diamter 0.4-1.6mm
Roll Height 0.9m-1.5m Process Weaving after crimped

Weaving Type:

Type A: Double Crimp Screen

Type B: Single Intermediate Crimp Screen

Type C: Double Intermediate Crimp Screen

Type D: Lock Crimp Screen

Feature:

1. firm structure
2. Accurate & uniform apertures
3. good strength
4. economy cost
5. High temperature resisting
6. acid resisting
7. alkali resisting
8. corrosion resisting

Specification List

Crimped Wire Mesh
Mesh/ Inch Wire Diameter mm Weight Kg/m2
4 1.25 3.2
5 0.65 1
5 0.88 1.9
6 0.55 0.85
6 0.7 1.5
6 1.1 3.25
8 0.43 0.75
8 0.6 1.3
8 0.65 1.7
8 1.0 3.7
10 0.4 0.75
10 0.6 1.5
10 0.85 3.75
12 0.4 0.85
12 0.5 1.5
12 0.75 3.3
14 0.45 1.4
14 0.4 1.1
16 0.4 1.1
16 0.35 1
18 0.4 1.4

NOTE:

The definition of mesh is the number of openings per linear inch.

The term opening represents the clear opening between two parallel wires.

Galvanized Woven Square Crimped Wire Mesh / BBQ Wire Mesh For Roasting Food

FAQ:

1. I'm interested in your crimped wire mesh, can i get free sample?

Yes, we could supply samples for free, but customer should pay the express fee.

2. Could you make a special crimped wire mesh for me?

Yes, it can be made as your require.

3. How can i get a competitive price quickly?

The quick quotation depends on the detailed dimensions you supply.

Our Service

1.The most professional production and sale team,we can give you the most professional advice on the products.
2.Customs design is available.
3.Small piece of sample is for free charge, but we don't pay the express fee.
4.All the questions will be replied in 24 hours.
