Square Steel Screen Mesh For Construction , Aluminum Woven Wire Mesh Screen
Square Steel Screen Mesh For Construction , Aluminum Woven Wire Mesh Screen
Square Steel Screen Mesh For Construction , Aluminum Woven Wire Mesh Screen
Square Steel Screen Mesh For Construction , Aluminum Woven Wire Mesh Screen
Specifications
Brand Name :
Baodi
Model Number :
BD-CWMJ
Place of Origin :
China
MOQ :
100 Rolls
Payment Terms :
T/T, Western Union
Supply Ability :
1000 rolls per month
Delivery Time :
10-30 days
Packaging Details :
Woven bag with two ends
Price :
negotiated
Product Name :
Aluminum Crimped Wire Mesh
Material :
Aluminum wire
Usage :
Architecture, construction
Wire Diameter :
0.4-1.6 mm
Roll Height :
0.9m-1.5m
Mesh/inch :
2 - 18
Description

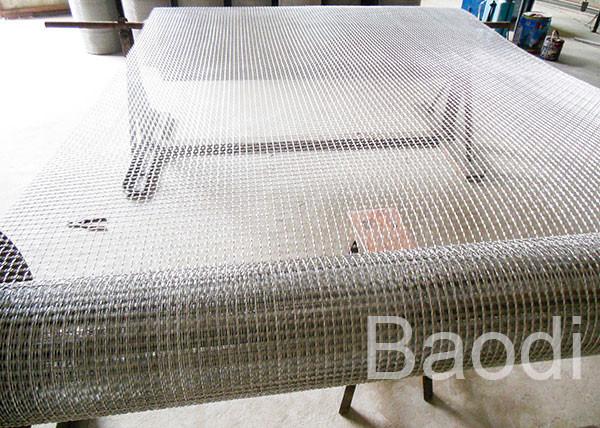

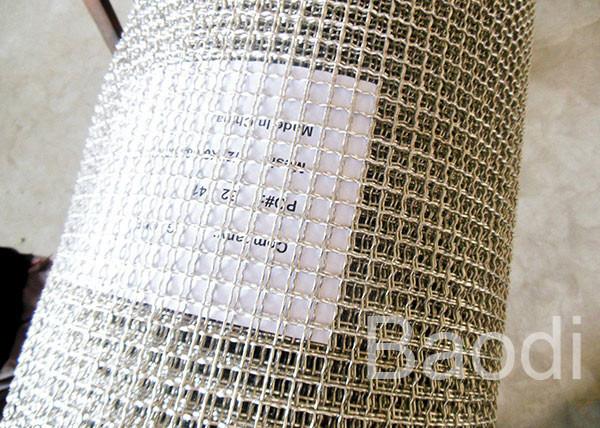

Aluminum Crimped Wire Mesh Square Mesh Pattern For Construction

Aluminum Crimped Wire Mesh Description

Woven wire cloth, typically produced from carbon steel, stainless steel or aluminum, is commonly employed as a filtration medium for sieving in a wide range of industries.

Manufactured in a wide variety of wire diameters, crimped wire mesh is produced in a square or rectangular mesh.

Crimped wire mesh is available in roll or flat panel form.

Characteristic of Aluminum Crimped Wire Mesh

  • firm structure
  • good strength
  • economy cost
  • acid resisting
  • alkali resisting
  • corrosion resisting
  • High temperature resisting
  • Accurate & uniform apertures

Weaving Type:

  • Type A: Double Crimp Screen
  • Type B: Single Intermediate Crimp Screen
  • Type C: Double Intermediate Crimp Screen
  • Type D: Lock Crimp Screen
Material: Low carbon steel wire, aluminum wire, stainless steel wire
Mesh: 2mesh - 18mesh
Wire Diamter: 0.4-1.6mm
Roll Height: 0.9m-1.5m
Pattern: Square or rectangular grid
Process: Weaving after crimped
Surface Treatment: Electro galvanized, hot dip galvanized or powder coated

Application Of Aluminum Crimped Wire Mesh

Used as fencing
Used as filter
As BBQ wire mesh to roast for food or meat
As screen in mine, coal factory, construction, etc.

Specification Of Aluminum Crimped Wire Mesh

Mesh/ Inch Wire Diameter mm Weight Kg/m2
4 1.25 3.2
5 0.65 1
5 0.88 1.9
6 0.55 0.85
6 0.7 1.5
6 1.1 3.25
8 0.43 0.75
8 0.6 1.3
8 0.65 1.7
8 1.0 3.7
10 0.4 0.75
10 0.6 1.5
10 0.85 3.75
12 0.4 0.85
12 0.5 1.5
12 0.75 3.3
14 0.45 1.4
14 0.4 1.1
16 0.4 1.1
16 0.35 1
18 0.4 1.4

NOTE:

1. The definition of mesh is the number of openings per linear inch.

2. The term opening represents the clear opening between two parallel wires.

Square Steel Screen Mesh For Construction , Aluminum Woven Wire Mesh Screen

FAQ:

1. I'm interested in your crimped wire mesh, can i get free sample?

Yes, we could supply samples for free, but customer should pay the express fee.

2. Could you make a special crimped wire mesh for me?

Yes, it can be made as your require.

3. How can i get a competitive price quickly?

The quick quotation depends on the detailed dimensions you supply.
