Mild Steel Crimped Wire Mesh Electro Galvanized Woven Cloth As Filter For Sieving
Mild Steel Crimped Wire Mesh Electro Galvanized Woven Cloth As Filter For Sieving
Mild Steel Crimped Wire Mesh Electro Galvanized Woven Cloth As Filter For Sieving
Mild Steel Crimped Wire Mesh Electro Galvanized Woven Cloth As Filter For Sieving
Mild Steel Crimped Wire Mesh Electro Galvanized Woven Cloth As Filter For Sieving
Mild Steel Crimped Wire Mesh Electro Galvanized Woven Cloth As Filter For Sieving
Specifications
Brand Name :
Baodi
Model Number :
BD-CWMI
Place of Origin :
China
MOQ :
100 Rolls
Payment Terms :
T/T, Western Union
Supply Ability :
1000 rolls per month
Delivery Time :
10-30 days
Packaging Details :
Woven bag with two ends
Price :
negotiated
Product Name :
Galvanized Woven Wire Cloth
Material :
Carbon steel, mild steel, stainless steel, aluminum
Finish :
Electro Galvanized
Wire Diameter :
0.4-1.6 mm
Roll Height :
0.9m-1.5m
Mesh/inch :
2 - 18
Description

Mild Steel Electro Galvanized Woven Wire Cloth As Filter For Sieving

Galvanized Woven Wire Cloth Introduction

Woven wire cloth, typically produced from carbon steel, stainless steel or aluminum, is commonly employed as a filtration medium for sieving in a wide range of industries.

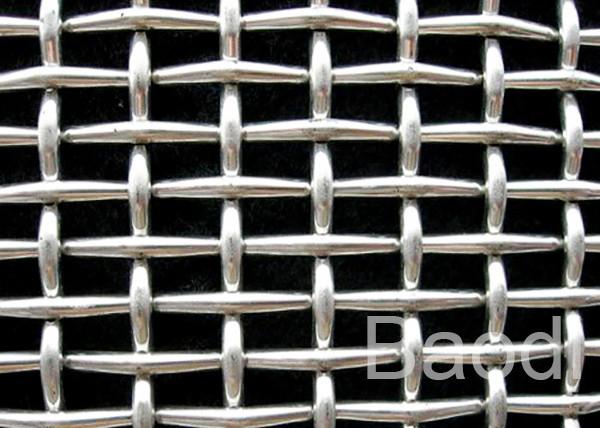

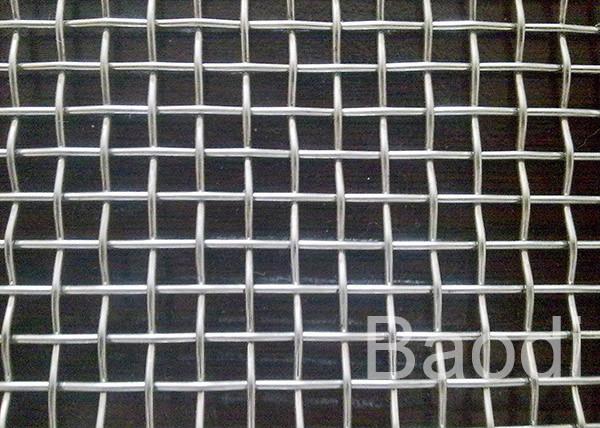

Manufactured in a wide variety of wire diameters, crimped wire mesh is produced in a square or rectangular mesh.

Crimped wire mesh is available in roll or flat panel form.

Material Low carbon steel wire, aluminum wire, stainless steel wire
Mesh 2mesh - 18mesh
Wire Diameter 0.4-1.6mm
Roll Height 0.9m-1.5m
Pattern Square or rectangular grid
Process Weaving after crimped
Surface Treatment Electro galvanized, hot dip galvanized or powder coated

Characteristic of Woven Wire Cloth:

firm structure Accurate & uniform apertures
good strength economy cost
acid resisting High temperature resisting
alkali resisting corrosion resisting

Application Of Woven Wire Screens

  1. Used as fencing
  2. Used as filter
  3. As BBQ wire mesh to roast for food or meat
  4. As screen in mine, coal factory, construction, etc.

Weaving Type:

  • Type A: Double Crimp Screen
  • Type B: Single Intermediate Crimp Screen
  • Type C: Double Intermediate Crimp Screen
  • Type D: Lock Crimp Screen

Specification Of Woven Wire Cloth

Mesh/ Inch Wire Diameter mm Weight Kg/m2
4 1.25 3.2
5 0.65 1
5 0.88 1.9
6 0.55 0.85
6 0.7 1.5
6 1.1 3.25
8 0.43 0.75
8 0.6 1.3
8 0.65 1.7
8 1.0 3.7
10 0.4 0.75
10 0.6 1.5
10 0.85 3.75
12 0.4 0.85
12 0.5 1.5
12 0.75 3.3
14 0.45 1.4
14 0.4 1.1
16 0.4 1.1
16 0.35 1
18 0.4 1.4

NOTE:

1. The definition of mesh is the number of openings per linear inch.

2. The term opening represents the clear opening between two parallel wires.

Mild Steel Crimped Wire Mesh Electro Galvanized Woven Cloth As Filter For Sieving

FAQ:

1. I'm interested in your crimped wire mesh, can i get free sample?

Yes, we could supply samples for free, but customer should pay the express fee.

2. Could you make a special crimped wire mesh for me?

Yes, it can be made as your require.

3. How can i get a competitive price quickly?

The quick quotation depends on the detailed dimensions you supply.
