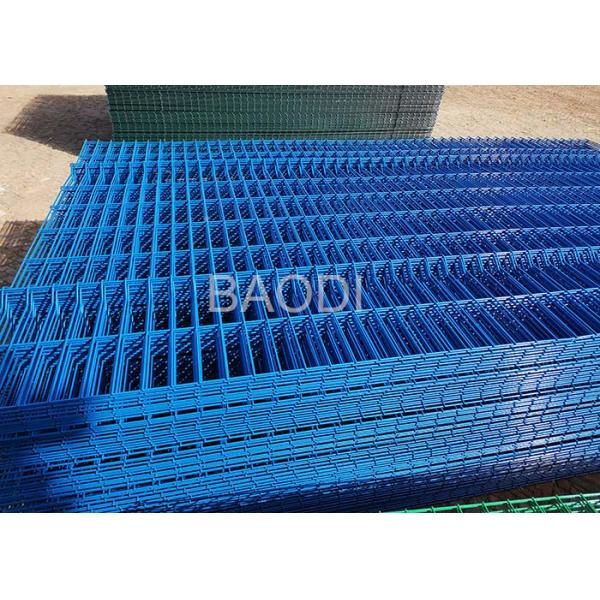

PVC Coated Welded Wire Fence Netting With Blue Color For Road Fencing
PVC Coated Welded Wire Fence Netting With Blue Color For Road Fencing
PVC Coated Welded Wire Fence Netting With Blue Color For Road Fencing
PVC Coated Welded Wire Fence Netting With Blue Color For Road Fencing
Specifications
Brand Name :
Baodi
Model Number :
BD-WMFP011602
Place of Origin :
China
MOQ :
100 panels with post
Price :
negotiated
Payment Terms :
T/T
Supply Ability :
2000 panels per month
Delivery Time :
15-40 days
Packaging Details :
In wooden crate or pallet
Fence Name :
Welded Wire Fence Netting
Surface Treatment :
PVC Coated
Wire Material :
Galvanized low carbon steel wire
Different Post :
Peach post, round post, square post
Wire diameter :
3-6mm
Aperture Size :
50-200mm
Description

PVC Coated Welded Wire Fence Netting With Blue Color For Road Fencing

Product Description:

The Wire Mesh Fence is welded from strong steel wire, with rectangular mesh and horizontal reinforcements that give the panels a high strength.

It's used as Boundary and Security Fence in airport , highway , stadium , etc.

It can resist the corrosive and ultraviolet very strongly, each fencing panels comes with a single post, hence an extra end post is required to finish a run.

The post type could be round post, square post or peach post .

Feature:

  • High strength
  • Good steel
  • Beautiful shape
  • Wide view and easily installation.
  • It’s a semi-opaque fence due to the open weave
  • It not obscure sunlight from either side of the fence
  • thoroughly sealed and protected against rust and corrosion

Advantage:

Suitable bending results in the unique aesthetic effect of this product, and the surface is impregnated with a variety of colors, such as yellow, green, red, and different colours of pillars and meshes are more pleasant to see.

At the same time, this product mostly uses the pillars with chassis. Installation only requires a good expansion bolt, which is very fast.

Usage: Wire Mesh Fence is used for: security and isolation of highway fencing , stadium fencing , machine protection , green belt fencing , zoo fencing , courtyard fencing, industry zone fencing , decoration, etc.

Road and Transit ( Highway, Railway, Road, City Transit )

Public grounds ( Park, Zoo, Train or Bus Station, Lawn )

Science Industry Zone ( Industry Zone, Sightseeing Zone, New pattern farm )

Private grounds ( Courtyard, Villa )

Commercial grounds ( Corporation, Hotel, Supermarket )

Specification of wire mesh fence

Mesh Opening

50x100, 50x150, 50x200,55x100,55x200

mm

Panel Size

2x0.63, 2x0.83, 2x1.03, 2x1.23, 2x1.43, 2.5x1.63, 2.5x1.83, 2.5x2.03, 2.5x2.23, 2.5x2.43

m(L x H)

Post Size

50x70, 70x100, 50x50, 60x60, (square hole) φ32,36,38,40,42,48(round post diameter)

mm

Wire Diameter

3-6mm as customer’s request

mm

Surface Color

Green, blue, black, white, yellow,etc.

Post Type

Peach post, square. Holland, T-type, Y-type post

Modular fencing system

Panel size (L*H) mm

Post height mm

Number of bending folds

2405*1270

1500

2

2405*1570

1850

2

2405*1720

2130

2

2405*2000

2450

3

Surface Treatment could be Galvanized or PVC coated. NOTE: There’re common specifications of products. Non-standard can also be customized as customer's request.

Post Type Post Size
Square Post 50x70mm, 70x100mm, 50x50mm, 60x60mm
Round Post 32mm, 36mm, 38mm, 40mm, 42mm, 48mm
Peach Post 50x70mm, 70x100mm

Production Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading
