55x100mm Powder Spraying Galvanised Wire Mesh Fence Iron For Garden
55x100mm Powder Spraying Galvanised Wire Mesh Fence Iron For Garden
55x100mm Powder Spraying Galvanised Wire Mesh Fence Iron For Garden
55x100mm Powder Spraying Galvanised Wire Mesh Fence Iron For Garden
Specifications
Brand Name :
Baodi
Model Number :
BD-WMF01
Place of Origin :
China
MOQ :
100 panels with post
Price :
negotiated
Payment Terms :
T/T
Supply Ability :
2000 panels per month
Delivery Time :
15-40 days
Packaging Details :
In wooden crate or pallet
Item Name :
Powder Coated Wire Mesh Fence
Surface Treatment :
Powder Spraying / powder coated
Material :
Galvanized low carbon steel wire
Different Post :
Peach post, round post, square post
Wire diameter :
3-6mm
Aperture Size :
50-200mm
Description

Powder Spraying Wire Mesh Fence With Galvanized Iron Wire inside

Product Description:

The Wire Mesh Fence is welded from strong steel wire, with rectangular mesh and horizontal reinforcements that give the panels a high strength.

It's also called as Fence Netting, wire fencing, mesh fencing.

It is mainly used for isolation and protection of roads, villa communities, airports, public places and scenic areas.

Surface Treatment:

Galvanized, plastic spraying and plastic coating.

Through three surface treatments, the wire mesh fence is more beautiful and generous, which has a certain decorative effect.

More importantly, it prolongs the service life of the column and ensures the immortality of 10 years.

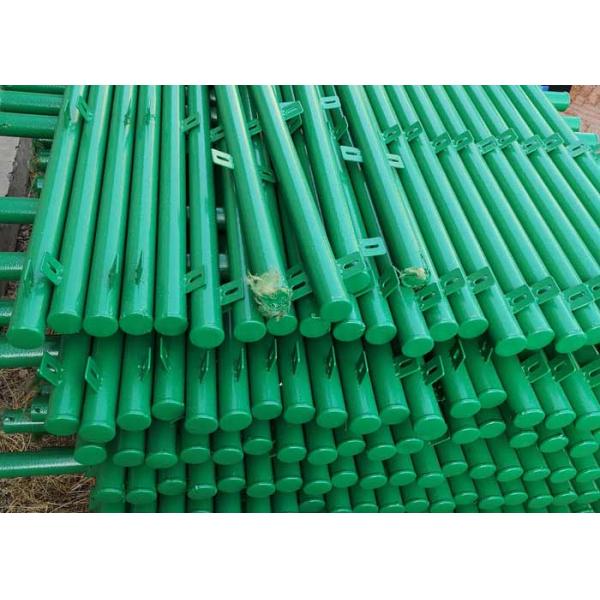

The post type could be round post, square post or peach post .

The wire mesh fence can be custom made by our factory, each fence panel comes with a post and accessories .

Feature:

  • High strength
  • Strong decoration
  • beautiful and generous
  • solid and anti-theft
  • Good steel
  • Beautiful shape
  • Wide field of vision
  • simple structure
  • nice appearance
  • Wide view and easily installation.
  • It’s a semi-opaque fence due to the open weave
  • It not obscure sunlight from either side of the fence
  • thoroughly sealed and protected against rust and corrosion

Quick Detail:

Specification of wire mesh fence

Mesh Size (mm)

50x100, 50x150, 50x200,55x100,55x200

Panel Size (m)

2x0.63, 2x0.83, 2x1.03, 2x1.23, 2x1.43, 2.5x1.63, 2.5x1.83, 2.5x2.03, 2.5x2.23, 2.5x2.43

Post Size (mm)

50x70, 70x100, 50x50, 60x60, (square hole) φ32,36,38,40,42,48(round post diameter)

Wire Diameter (mm)

3-6mm as customer’s request

Surface Color

Green, blue, black, white, yellow,etc.

Post Type

Peach post, square. Holland, T-type, Y-type post

Modular fencing system

Panel size (L*H) mm

Post height mm

Number of bending folds

2405*1270

1500

2

2405*1570

1850

2

2405*1720

2130

2

2405*2000

2450

3

Surface Treatment could be Galvanized or PVC coated.

NOTE: There’re common specifications of products. Non-standard can also be customized as customer's request.

Post Type Post Size
Square Post 50x70mm, 70x100mm, 50x50mm, 60x60mm
Round Post 32mm, 36mm, 38mm, 40mm, 42mm, 48mm
Peach Post 50x70mm, 70x100mm

Production Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading
55x100mm Powder Spraying Galvanised Wire Mesh Fence Iron For Garden

Our Service

1. The most professional production and sale team,we can give you the most professional advice on the products.

2. Customs design is available.

3. Small piece of sample is for free charge, but we don't pay the express fee.

4. All the questions will be replied in 24 hours.
