Green Vinyl Coated Wire Mesh Fence Panels With Metal Post High Strength
Green Vinyl Coated Wire Mesh Fence Panels With Metal Post High Strength
Green Vinyl Coated Wire Mesh Fence Panels With Metal Post High Strength
Green Vinyl Coated Wire Mesh Fence Panels With Metal Post High Strength
Specifications
Brand Name :
Baodi
Model Number :
BD-WWMFB
Place of Origin :
China
MOQ :
100 panels with post
Payment Terms :
T/T
Supply Ability :
2000 panels per month
Delivery Time :
15-40 days
Packaging Details :
In wooden crate or pallet
Price :
negotiated
Item Name :
Euro Wire Fencing
Post Shape :
Round Post, Square Post, Peach Post
Characteristic :
Easily Assembled
Aperture Size :
50-200mm
Panel Height :
Maximum 2.4m
Panel Length :
Maximum 3m
Description

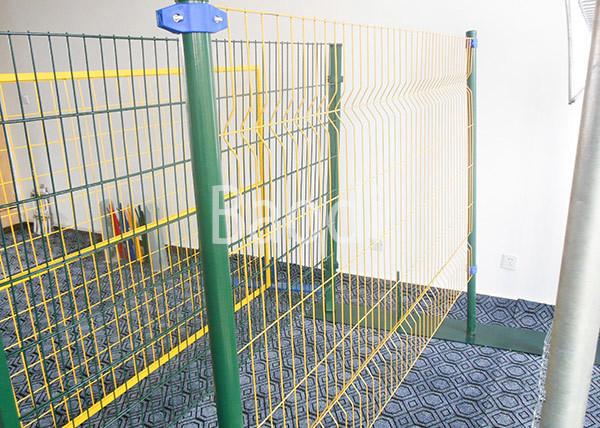

Green Vinyl Coated Welded Euro Wire Fencing Panels With Metal Post

Feature Of Euro Wire Fencing

Simple structure High strength Nice appearance
Wide view easily installation Strong and reliable security
Thoroughly sealed and protected against rust and corrosion

The Wire Fence is a kind of welded mesh for fencing, the panels and posts are joined together with clamps.

The surface treatment is PVC coated after galvanized, the color could be green, blue, white, etc.

It's a type of welded fence used for security and isolation of highway fencing, stadium fencing, machine protection, green belt fencing, zoo fencing, decoration, etc.

The Wire Fence is formed by welding cold-drawn low carbon steel wire which is fixed with steel tube supporting posts by joint accessories.


The wire fence is custom made by our factory , each fence panel comes with a post and accessories.

The post type could be round post, square post or peach post.

Application Of Euro Wire Fencing

  • Public building fence
  • Private place fence, Where visibility is desirable
  • Residential perimeter fence
  • In Parks, Zoos and nature reserves

Euro Wire Fencing Specification List

Mesh Size 50x100, 50x150, 50x200,55x100,55x200 mm
Panel Size

2x0.63, 2x0.83, 2x1.03, 2x1.23, 2x1.43,

2.5x1.63, 2.5x1.83, 2.5x2.03, 2.5x2.23, 2.5x2.43

 m(L x H)
Square Post Size

50x70, 70x100, 50x50, 60x60

 mm
Round Post Diameter

32, 36, 38, 40, 42, 48

 mm
Wire diameter 3-6mm, or as customer’s request mm
Surface Treatment PVC coated & Powder spraying
Color Green, blue, black, white, yellow, etc.
Post shape Round, peach post, square, T-type, Y-type post
Note

There’re common specifications of products. Non-standard can also be customized as customer's request.

Production Process:

Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading

Straightening & Cutting

The cold rolled wire rods in the coil form is passed through pre set die and cartridge units (special sets for different diameter wire rods) present in the straightening and cutting machine, where the wire rods are first straightened and then cut to set length (precision up to 2mm) automatically.

Welding

The wires are welded by electric resistance in an automated state of the art machine which controls welding parameters precisely.

Bending

The bending machine available is used to bend the mesh panels to form the V shape design.
Green Vinyl Coated Wire Mesh Fence Panels With Metal Post High Strength
