Plastic Coated Wire Mesh Fence Panels With Metal Post For Field Fence
Plastic Coated Wire Mesh Fence Panels With Metal Post For Field Fence
Plastic Coated Wire Mesh Fence Panels With Metal Post For Field Fence
Plastic Coated Wire Mesh Fence Panels With Metal Post For Field Fence
Specifications
Brand Name :
Baodi
Model Number :
BD-WMFAA
Place of Origin :
China
MOQ :
100 panels with post
Price :
negotiated
Payment Terms :
T/T
Supply Ability :
2000 panels per month
Delivery Time :
15-40 days
Packaging Details :
In wooden crate or pallet
Name :
Wire Mesh Fence
Surface :
Galvanized + PVC Coated
Mesh Type :
Welded Mesh
Usage :
Outdoor fence
Mesh Aperture :
2" - 7.9"
Height :
Maximum 7.9'
Description

Plastic Coated Wire Mesh Fence Panels With Metal Post For Field Fence

Product Description

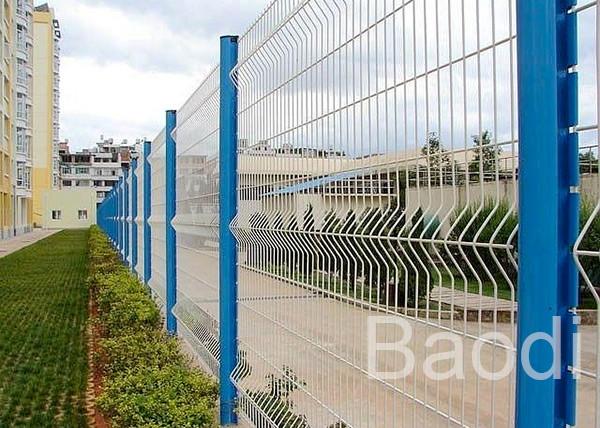

Wire Mesh Fence is a kind of welded mesh used for fencing, each fence panel comes with a post and accessories.
It’s a semi-opaque fence due to the open weave, not obscure sunlight from either side of the fence.
Material: low carbon iron wire.
Surface: Galvanized, then PVC coated or powder coating. So the wire mesh fence is thoroughly sealed and protected against rust and corrosion.
Color: Green, blue, white, yellow, etc.
There're 'V' shaped design on the fence panel. The ' V ' shaped design increases stability to the panel including panels, mesh gates and accessories.

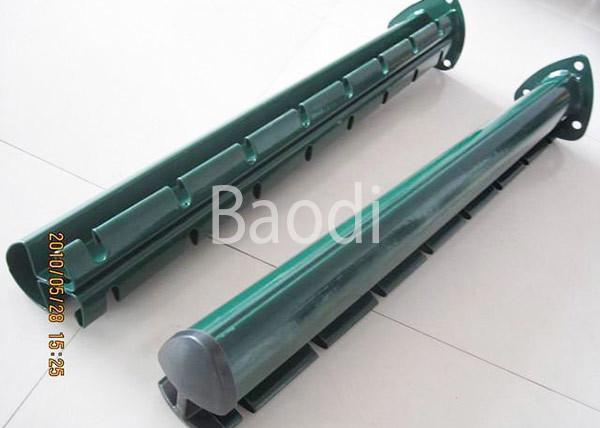

Different Types of Post:
Type 1: Round post
Type 2: Square post
Type 3: Peach post
Post Shape Post Dimension
Square Post 50x70mm, 70x100mm, 50x50mm, 60x60mm
Round Post 32mm, 36mm, 38mm, 40mm, 42mm, 48mm
Peach Post 50x70mm, 70x100mm

Feature

It has the feature of simple structure, nice appearance, wide view and easily installation.
Quick Detail:

Panel Height Panel Length Wire Diameter Mesh Opening Folds
1.03m 2.0m / 2.5m

Galvanized + Powder Painted
3.85mm/4.0mm

4.85mm/5.0mm

Galvanized + PVC Coated
3.0mm/4.0mm

4.0mm/5.0mm

 50 × 200mm
55 × 200mm
50 × 150mm
55 × 100mm		 2
1.23m 2
1.5m 3
1.53m 3
1.7m 3
1.73m 3
1.8m 4
1.93m 4
2.0m 4
2.03m 4
2.4m 4

Production Process:
Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading
Plastic Coated Wire Mesh Fence Panels With Metal Post For Field Fence

Product tags

plastic coated wire fence net

,

galvanised steel mesh fence panels

,

pvc coated wire mesh fence
