Garden Green Plastic Wire Mesh Fence Bended Panel With Gate 4 - 11 Gauge
Garden Green Plastic Wire Mesh Fence Bended Panel With Gate 4 - 11 Gauge
Garden Green Plastic Wire Mesh Fence Bended Panel With Gate 4 - 11 Gauge
Garden Green Plastic Wire Mesh Fence Bended Panel With Gate 4 - 11 Gauge
Specifications
Brand Name :
Baodi
Model Number :
BD-WMFP
Place of Origin :
China
MOQ :
100 panels with post
Payment Terms :
T/T
Supply Ability :
2000 panels per month
Delivery Time :
15-40 days
Packaging Details :
In wooden crate or pallet
Price :
negotiated
Item :
Green Plastic Wire Mesh Fence
Finish :
Plastic
Material :
Mild Steel Wire
Wire Gauge :
4 Gauge to 11 Gauge
Aperture :
2" - 7.9"
Panel Height :
Maximum 7.9'
Description

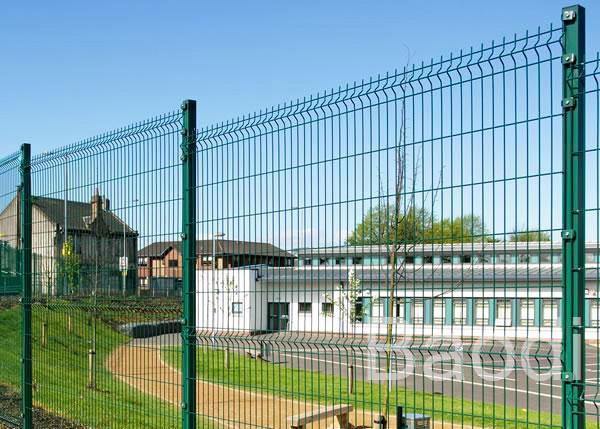

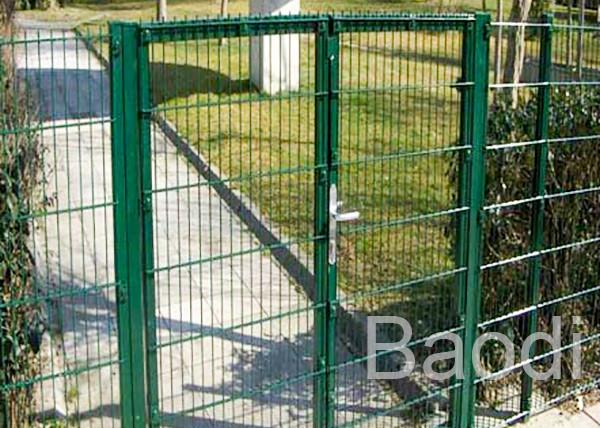

Green Plastic Wire Mesh Fence Bended Panel With Gate for Garden Fencing

Product Description

The Green Plastic Wire Mesh Fence is made of low carbon iron wire, the fencing panels are galvanised followed by vinyl coated.

The color could be green, blue, white, etc.

The ' V ' shaped design increases stability to the panel including panels, mesh gates and accessories .

It's used as Boundary and Security Fence in airport, highway, stadium , etc.

The wire mesh fence is custom made by our factory , each fence panel comes with a post and accessories.
The post type could be round post, square post or peach post .

Feature

» simple structure

» nice appearance

» wide view and easily installation.

» It’s a semi-opaque fence due to the open weave

» It not obscure sunlight from either side of the fence

» thoroughly sealed and protected against rust and corrosion


Application

Road and Transit ( Highway, Railway, Road, City Transit )
Public grounds ( Park, Zoo, Train or Bus Station, Lawn )
Private grounds ( Courtyard, Villa )
Commercial grounds ( Corporation, Hotel, Supermarket )
Science Industry Zone ( Industry Zone, Sightseeing Zone, New pattern farm

Quick Detail:

Post Shape Post Dimension
Square Post 50x70mm, 70x100mm, 50x50mm, 60x60mm
Round Post 32mm, 36mm, 38mm, 40mm, 42mm, 48mm
Peach Post 50x70mm, 70x100mm
Panel Height Panel Length Wire Diameter Mesh Opening Folds
1.03m 2.0m / 2.5m

Galvanized + Powder Painted
3.85mm/4.0mm

4.85mm/5.0mm

Galvanized + PVC Coated
3.0mm/4.0mm

4.0mm/5.0mm

 50 × 200mm
55 × 200mm
50 × 150mm
55 × 100mm		 2
1.23m 2
1.5m 3
1.53m 3
1.7m 3
1.73m 3
1.8m 4
1.93m 4
2.0m 4
2.03m 4
2.4m

Production Process:
Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading
Garden Green Plastic Wire Mesh Fence Bended Panel With Gate 4 - 11 Gauge


FAQ:
1. I'm interested in your product, is custom size available?
Yes, our factory is professional in producing kinds of wire mesh, the product could be customized as your request .
2. The quantity is not that big, is that OK?
Yes, you can send us message with the real quantity, we'll try our best to make this order for you. We'd like to make good relationship with more customers.
3. Can I get free samples?
Yes, we'd like to provide small pieces free samples, and customers pay for the express fee.
4. Can you provide OEM service?
Yes, all the products can be made as your require.
