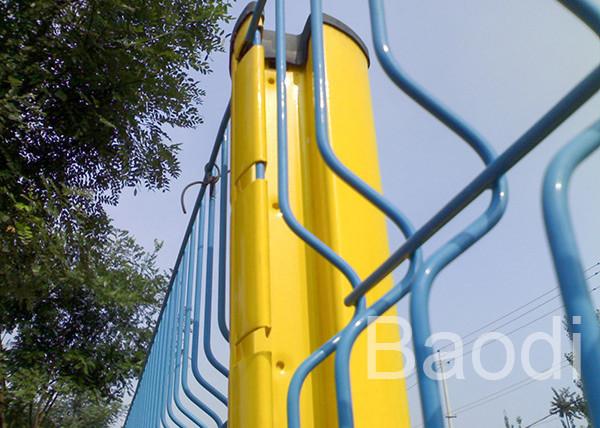

Triangle Bended Pvc Coated Welded Wire Fencing Panels With Steel Post / Powder Coated
Triangle Bended Pvc Coated Welded Wire Fencing Panels With Steel Post / Powder Coated
Triangle Bended Pvc Coated Welded Wire Fencing Panels With Steel Post / Powder Coated
Triangle Bended Pvc Coated Welded Wire Fencing Panels With Steel Post / Powder Coated
Specifications
Brand Name :
Baodi
Model Number :
BD-WMFP
Place of Origin :
China
MOQ :
100 panels with post
Payment Terms :
T/T
Supply Ability :
2000 panels per month
Delivery Time :
15-40 days
Packaging Details :
In wooden crate or pallet
Price :
negotiated
Product Name :
Triangle Bended Wire Mesh Fence
Surface Treatment :
Powder Coated
Surface Color :
Green / blue / white / yellow / black
Material :
Mild Steel Wire
Wire diameter :
3-6mm
Panel Height :
Maximum 2.4m
Description

Triangle Bended Wire Mesh Fence Welded Panel With Steel Post​

Product Introduction:

♦ The Triangle Bended Wire Mesh Fence is made of low carbon iron wire , the fencing panels are galvanised followed by powder coating.

♦ The color could be green , blue , white , etc. The ' V ' shaped design increases stability to the panel including panels , mesh gates and accessories.

♦ It's used as Boundary and Security Fence in airport , highway , stadium , etc.

NOTE: The wire mesh fence is custom made by our factory , each fence panel comes with a post and accessories . The post type could be round post, square post or peach post. Application:

Wire Mesh Fence is used for:

security and isolation of highway fencing

stadium fencing
machine protection

green belt fencing
zoo fencing

courtyard fencing

industry zone fencing

decoration

Road and Transit ( Highway, Railway, Road, City Transit )

Public grounds ( Park, Zoo, Train or Bus Station, Lawn )

Science Industry Zone ( Industry Zone, Sightseeing Zone, New pattern farm )

Private grounds ( Courtyard, Villa )

Commercial grounds ( Corporation, Hotel, Supermarket )

Characteristic:

1. Simple structure 2. Beautiful appearance 3. High strength 4. Strong and reliable security 5. Wide view and easily installation. 6. Thoroughly sealed and protected against rust and corrosion

7. It’s a semi-opaque fence due to the open weave

8. It not obscure sunlight from either side of the fence Quick Detail:

Panel Height Panel Length Wire Diameter Mesh Opening Folds
1.03m 2.0m / 2.5m

Galvanized + Powder Painted 3.85mm/4.0mm

4.85mm/5.0mm

Galvanized + PVC Coated 3.0mm/4.0mm

4.0mm/5.0mm

 50 × 200mm 55 × 200mm 50 × 150mm 55 × 100mm 2
1.23m 2
1.5m 3
1.53m 3
1.7m 3
1.73m 3
1.8m 4
1.93m 4
2.0m 4
2.03m 4
2.4m 4
Post Shape Post Size
Square Post 50x70mm, 70x100mm, 50x50mm, 60x60mm
Round Post 32mm, 36mm, 38mm, 40mm, 42mm, 48mm
Peach Post 50x70mm, 70x100mm

Production Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading

Triangle Bended Pvc Coated Welded Wire Fencing Panels With Steel Post / Powder Coated

FAQ:

1. I'm interested in your product, is custom size available?

Yes, our factory is professional in producing kinds of wire mesh, the product could be customized as your request .

2. The quantity is not that big, is that OK?

Yes, you can send us message with the real quantity, we'll try our best to make this order for you. We'd like to make good relationship with more customers.

3. Can I get free samples?

Yes, we'd like to provide small pieces free samples, and customers pay for the express fee.

4. Can you provide OEM service?

Yes, all the products can be made as your require.

5. How can i get a competitive price quickly?

The quick quotation depends on the detailed dimensions you supply.
