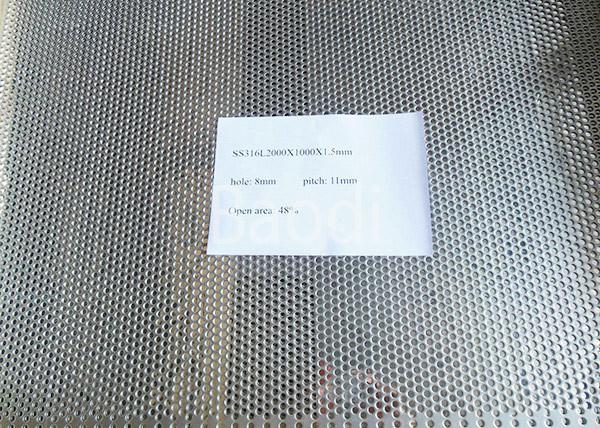

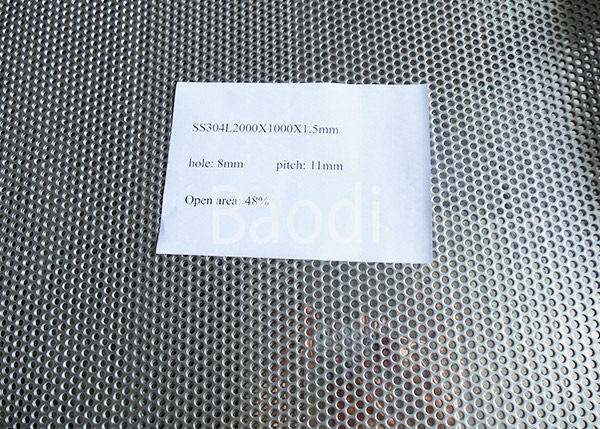

Chemical Industry Perforated Steel Sheet 2000 X 1000 X 1.5mm With Round Hole 8mm
Chemical Industry Perforated Steel Sheet 2000 X 1000 X 1.5mm With Round Hole 8mm
Chemical Industry Perforated Steel Sheet 2000 X 1000 X 1.5mm With Round Hole 8mm
Chemical Industry Perforated Steel Sheet 2000 X 1000 X 1.5mm With Round Hole 8mm
Specifications
Brand Name :
Baodi
Model Number :
BD-PSH
Place of Origin :
China
MOQ :
100 sheets
Payment Terms :
T/T, Western Union
Supply Ability :
100 sheets per week
Delivery Time :
10-30 days
Packaging Details :
Plastic film inside, with pallet outside.
Price :
negotiated
Item Name :
Stainless Steel 304 Punching Plate
Material :
Stainless Steel 304
Plate Type :
Punched plate
Hole Diameter :
0.8mm-25mm
Maximum sheet width :
1m
Maximum sheet length :
2m
Description

Stainless Steel 304 Punching Plate 2000 x 1000 x 1.5mm Round Hole 8mm

Brief Introduction Of Punching Plate

Punching Plate is also known as perforated metal, perforated plate, or perforated sheet.

It's a punched metal sheet with holes, such as round holes, square holes and slotted holes.

Type Punched metal sheet Materials Stainless Steel ( SS304, SS316 ) / Aluminum / Carbon Steel / Mild Steel
Hole Diameter 0.8-25mm Hole Shapes Round hole / Square hole / Slotted hole / Oblong hole / Hexagonal hole
Sheet Thickness 0.5mm-3.5mm Sheet Size 1.5m x 3m ( Maximum )

Punching Platehas been utilized across a variety of industries:

1. Chemical — Filters, centrifuges, drying machine baskets, battery separator plates, water screens, gas purifiers, liquid gas burning tubes, mine cages, coal washing, etc.

2. Food and beverage — Beehive construction, grain dryers, wine vats, fish farming, silo ventilation, sorting machines, fruit and vegetable juice presses, cheese molds, baking trays, coffee screens, etc.

3. Architectural — Infill panels, sunshade, cladding, column covers, metal signage, site amenities, fencing screens, etc.

4. Automotive — Air filters, oil filters, silencer tubes, radiator grilles, running boards, flooring, motorcycle silencers, ventilation grids, tractor engine ventilation, etc.

5. Construction — Ceiling noise protection, acoustic panels, stair treads, pipe guards, ventilation grilles, sun protection slats, facades, sign boards, etc.

Specification List Of Punching Plate
Sheet Material Sheet Thickness (mm ) Hole Dia.(mm) Pitch (mm) Sheet Width(m) Sheet Length(m) Porosity (%) Weight (kg/m2)
Carbon Steel Punching Plate 0.5 1 1 Maximum Sheet Width 1.5m Maximum Sheet Length 3m 19.6 3.14
0.55 1.1 2.2 22.67 3.411
0.55 1.5 2.8 26.03 3.268
0.8 1.5 1.5 19.6 5
0.8 2 3.4 30.78 4.465
1.5 2 2 19.6 9.4
1.5 5 8.0 35.39 7.843
3 5 16 19.6 18.8
Stainless Steel Punching Plate 0.5 1 1 Maximum Sheet Width 1.5m Maximum Sheet Length 3m 19.6 3.14
0.8 1.5 1.5 19.6 5
1 2 2 19.6 6.28
2 5 16 19.6 6.28
Aluminum Punching Plate 0.5 1 1 Maximum width 1.5m Maximum lenght 3m 19.6 1.08
0.8 3 3 19.6 1.72
1.6 2 2 19.6 3.24
3 4 16 19.6 4.23

Chemical Industry Perforated Steel Sheet 2000 X 1000 X 1.5mm With Round Hole 8mm
